Кондиционер: водяные трубки TOYOTA COASTER, 1993/01 - 2025, 4,2 литра, дизель, STANDARD TYPE, HZB50, механика, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

COASTER

Двигатель

4,2 литра, дизель

Класс

STANDARD TYPE

Фрейм

HZB50

Трансмиссия

механика МКПП, 5 скоростей

Опции

левый руль STANDARD ROOF для 30 пассажиров WITHOUT COOLER GEN CBU DSL

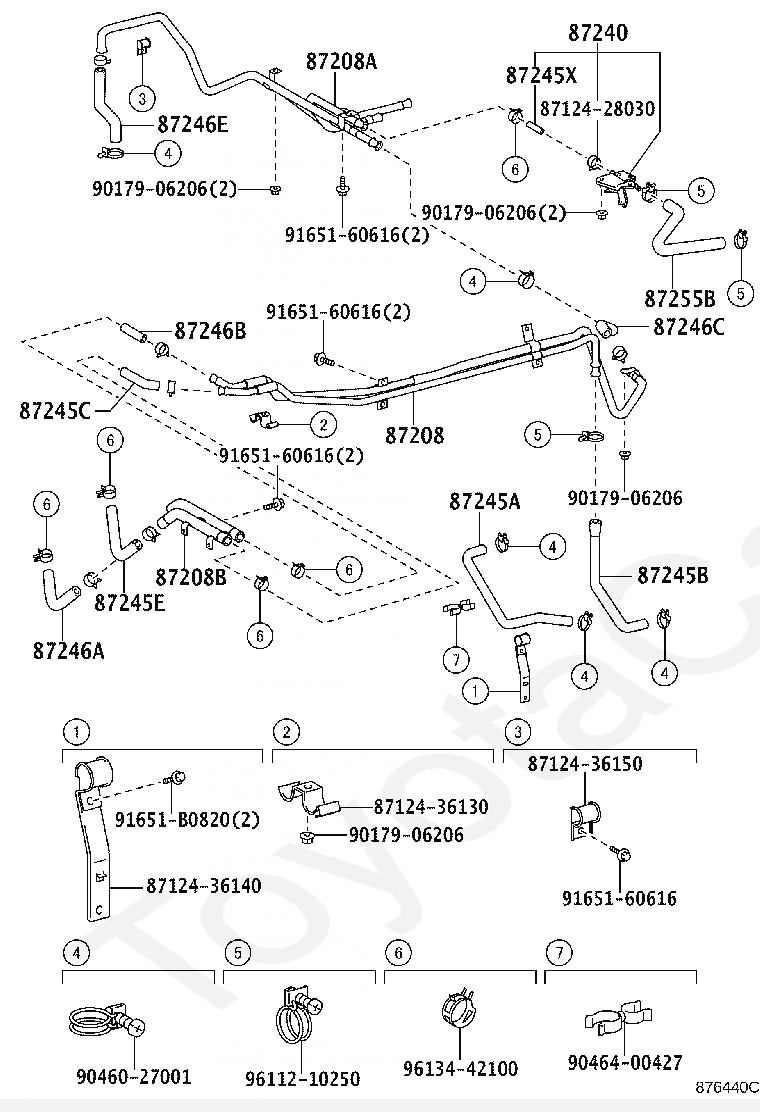

Код

Описание

8712428030

Крепеж

8712436130

Крепеж

8712436150

Крепеж

87208

PIPE SUB-ASSY, HEATER WATER

87208A

PIPE SUB-ASSY, HEATER WATER, A

87208B

PIPE SUB-ASSY, HEATER WATER, B

8721428030

Крепеж

87240

VALVE ASSY, HEATER WATER

87245A

HOSE, HEATER WATER, INLET A

87245C

HOSE, HEATER WATER ,INLET C

87245E

HOSE, HEATER WATER, INLET E

87245X

HOSE, HEATER WATER

87246A

HOSE, HEATER WATER, OUTLET A

87246B

HOSE, HEATER WATER, OUTLET B

87246C

HOSE, HEATER WATER, OUTLET C

87246E

HOSE, HEATER WATER, OUTLET E

87248A

PIPE, HEATER WATER INLET, A

87255A

HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

87255B

HOSE, REAR HEATER WATER INLET, B

9017906206

Крепеж

9046027001

Крепеж

9165160616

Крепеж

9611210250

Крепеж

9613442100

Крепеж

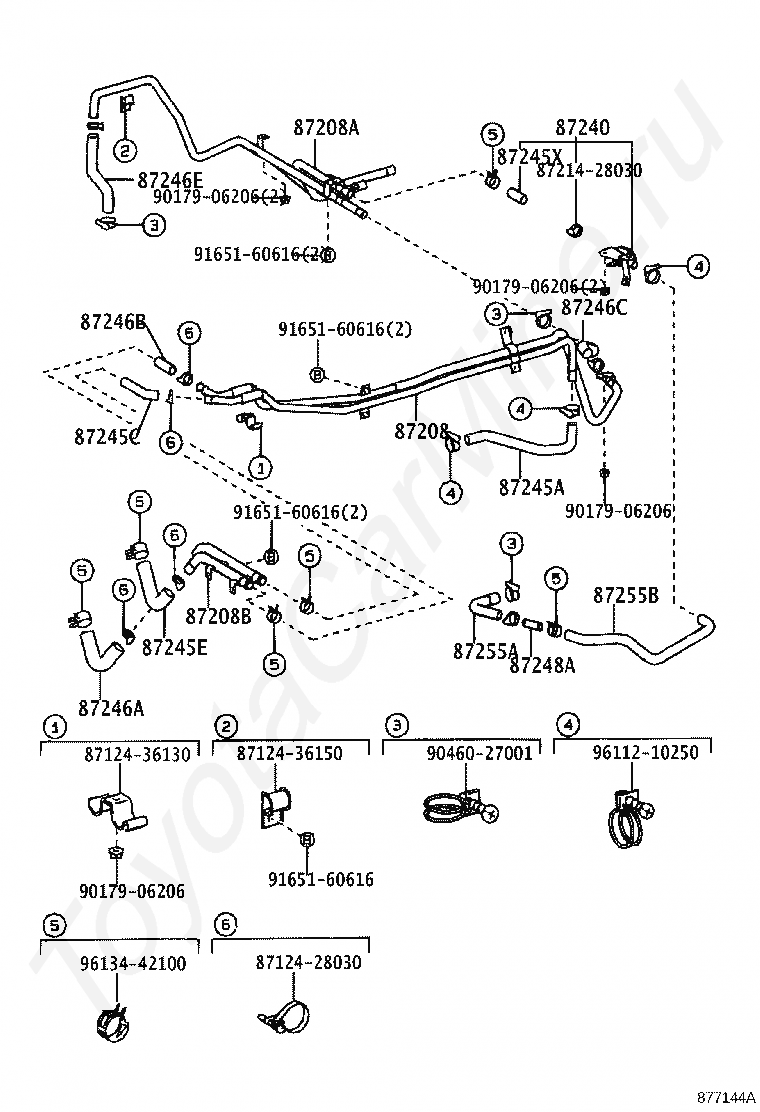

Код

Описание

8712428030

Крепеж

8712436130

Крепеж

8712436140

Крепеж

8712436150

Крепеж

87208

PIPE SUB-ASSY, HEATER WATER

87208A

PIPE SUB-ASSY, HEATER WATER, A

87208B

PIPE SUB-ASSY, HEATER WATER, B

87240

VALVE ASSY, HEATER WATER

87245A

HOSE, HEATER WATER, INLET A

87245B

HOSE, HEATER WATER, INLET B

87245C

HOSE, HEATER WATER ,INLET C

87245E

HOSE, HEATER WATER, INLET E

87245X

HOSE, HEATER WATER

87246A

HOSE, HEATER WATER, OUTLET A

87246B

HOSE, HEATER WATER, OUTLET B

87246C

HOSE, HEATER WATER, OUTLET C

87246E

HOSE, HEATER WATER, OUTLET E

87255B

HOSE, REAR HEATER WATER INLET, B

9017906206

Крепеж

9046027001

Крепеж

9046400427

Крепеж

9165160616

Крепеж

91651B0820

Крепеж

9611210250

Крепеж

9613442100

Крепеж

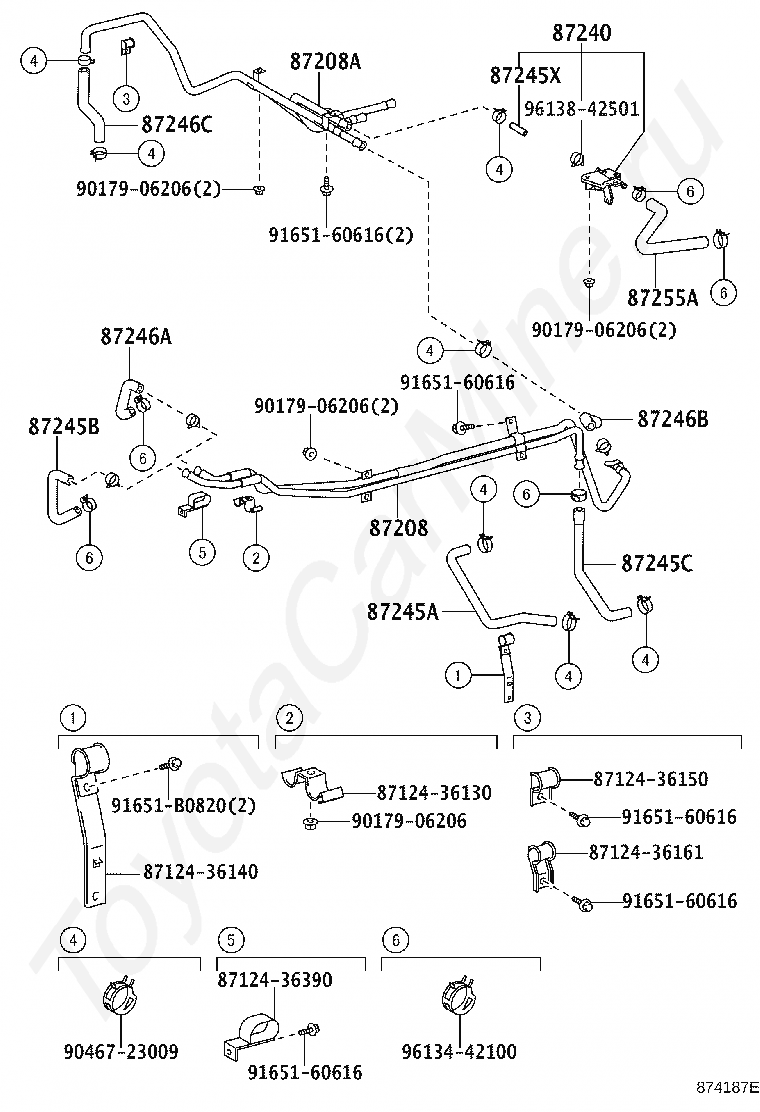

Код

Описание

8712436130

Крепеж

8712436150

Крепеж

8712436161

Крепеж

8712436390

Крепеж

87208

PIPE SUB-ASSY, HEATER WATER

87208A

PIPE SUB-ASSY, HEATER WATER, A

87240

VALVE ASSY, HEATER WATER

87245A

HOSE, HEATER WATER, INLET A

87245B

HOSE, HEATER WATER, INLET B

87245X

HOSE, HEATER WATER

87246A

HOSE, HEATER WATER, OUTLET A

87246B

HOSE, HEATER WATER, OUTLET B

87246C

HOSE, HEATER WATER, OUTLET C

87248A

PIPE, HEATER WATER INLET, A

87255A

HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

87255B

HOSE, REAR HEATER WATER INLET, B

9017906206

Крепеж

9046400763

Крепеж

9046723009

Крепеж

9165160616

Крепеж

9613442100

Крепеж

9613842501

Крепеж

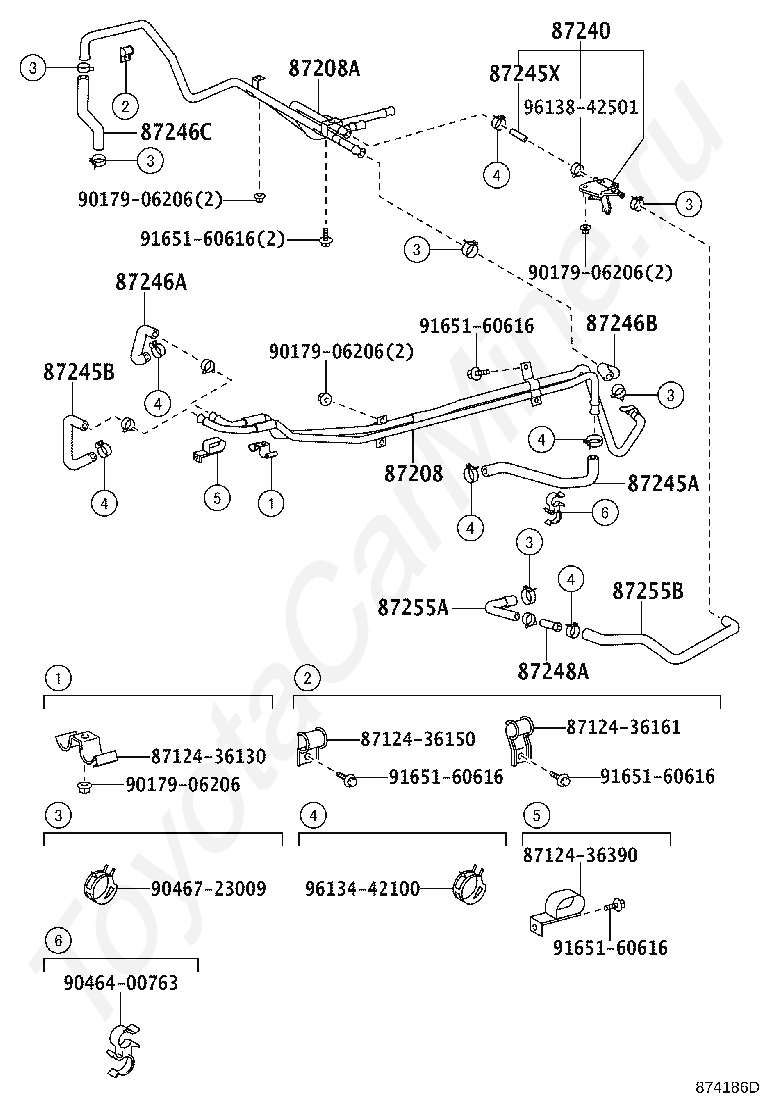

Код

Описание

8712436130

Крепеж

8712436140

Крепеж

8712436150

Крепеж

8712436161

Крепеж

8712436390

Крепеж

87208

PIPE SUB-ASSY, HEATER WATER

87208A

PIPE SUB-ASSY, HEATER WATER, A

87240

VALVE ASSY, HEATER WATER

87245A

HOSE, HEATER WATER, INLET A

87245B

HOSE, HEATER WATER, INLET B

87245C

HOSE, HEATER WATER ,INLET C

87245X

HOSE, HEATER WATER

87246A

HOSE, HEATER WATER, OUTLET A

87246B

HOSE, HEATER WATER, OUTLET B

87246C

HOSE, HEATER WATER, OUTLET C

87255A

HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

9017906206

Крепеж

9046723009

Крепеж

9165160616

Крепеж

91651B0820

Крепеж

9613442100

Крепеж

9613842501

Крепеж

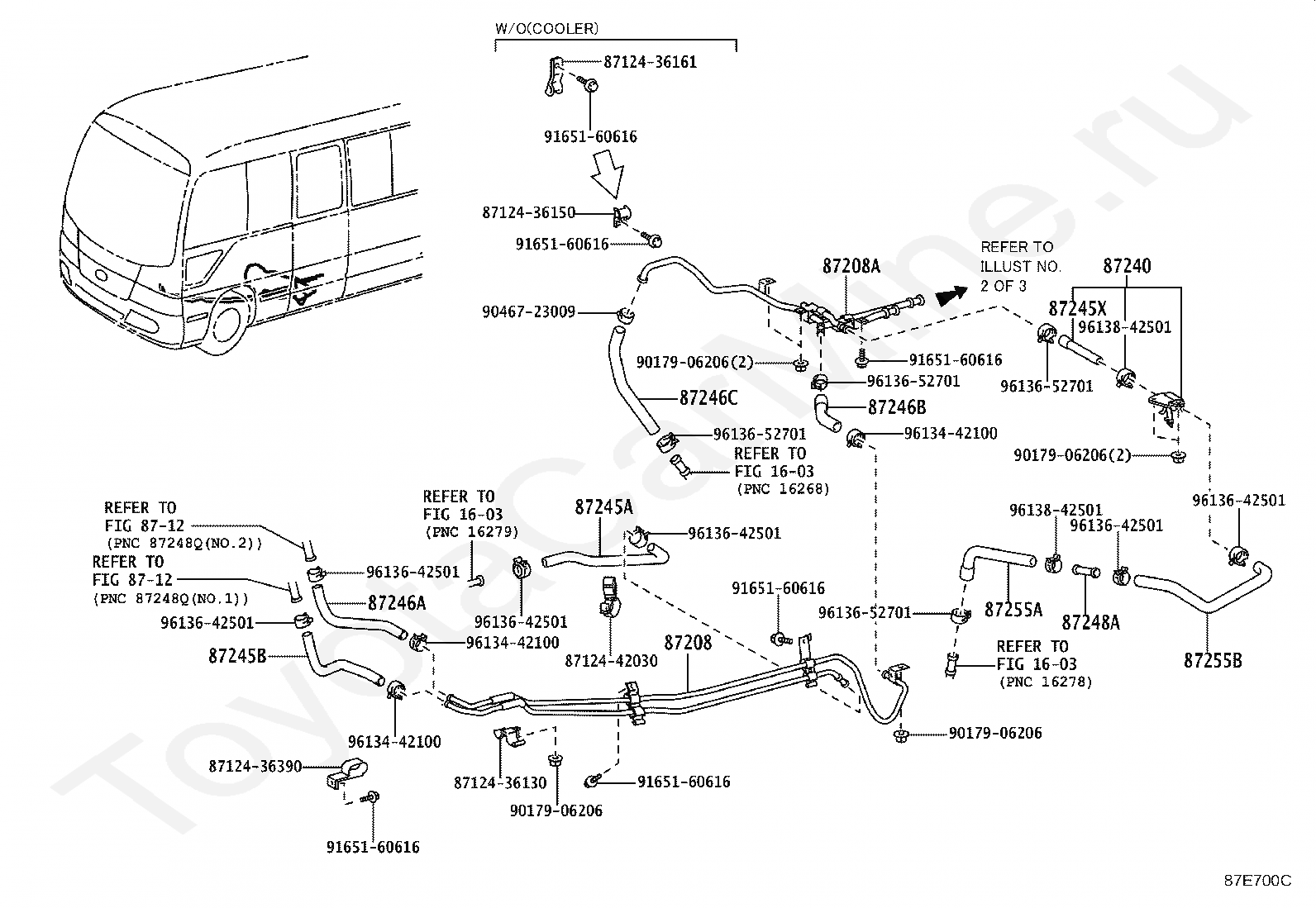

Код

Описание

1603

переход к группе запчастей

8712

переход к группе запчастей

8712436130

Крепеж

8712436150

Крепеж

8712436161

Крепеж

8712436390

Крепеж

8712442030

Крепеж

87208

PIPE SUB-ASSY, HEATER WATER

87208A

PIPE SUB-ASSY, HEATER WATER, A

87240

VALVE ASSY, HEATER WATER

87245A

HOSE, HEATER WATER, INLET A

87245B

HOSE, HEATER WATER, INLET B

87245X

HOSE, HEATER WATER

87246A

HOSE, HEATER WATER, OUTLET A

87246B

HOSE, HEATER WATER, OUTLET B

87246C

HOSE, HEATER WATER, OUTLET C

87248A

PIPE, HEATER WATER INLET, A

87255A

HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

87255B

HOSE, REAR HEATER WATER INLET, B

9017906206

Крепеж

9046723009

Крепеж

9165160616

Крепеж

9613442100

Крепеж

9613642501

Крепеж

9613652701

Крепеж

9613842501

Крепеж

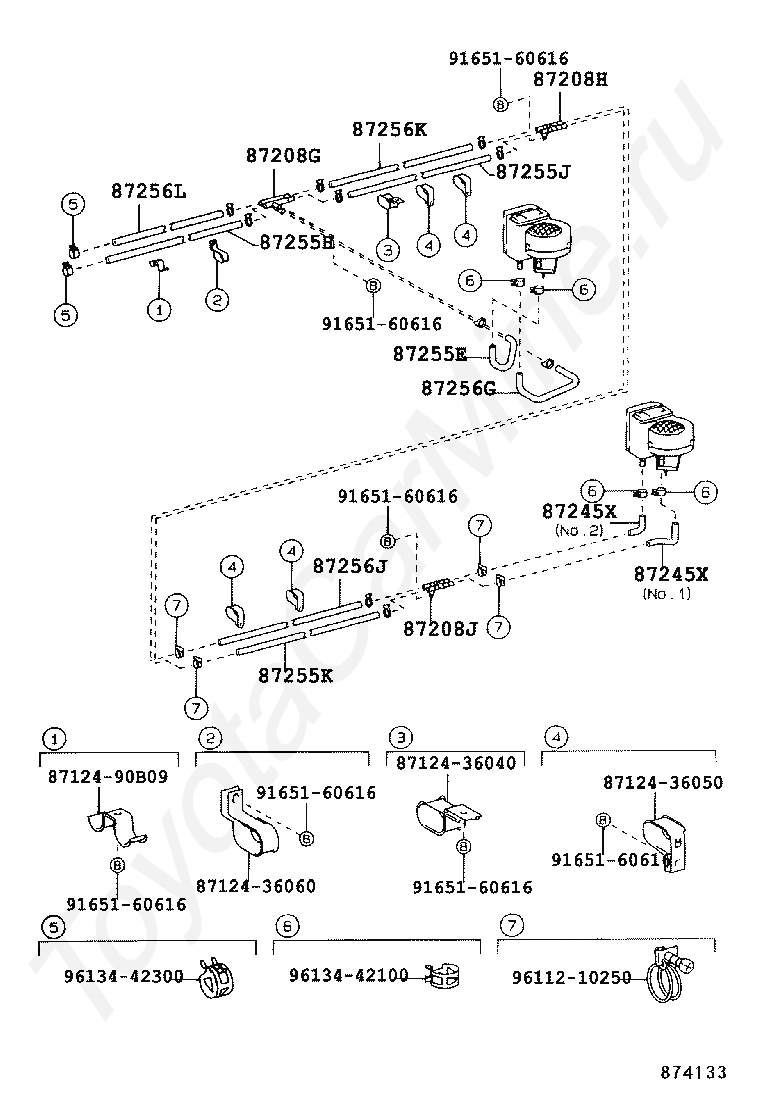

Код

Описание

8712436040

Крепеж

8712436050

Крепеж

8712436060

Крепеж

8712490B09

Крепеж

87208G

PIPE SUB-ASSY, HEATER WATER, G

87208H

PIPE SUB-ASSY, HEATER WATER, H

87208J

PIPE SUB-ASSY, HEATER WATER, J

87245X

HOSE, HEATER WATER

87255E

HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)

87255H

HOSE, HEATER WATER INLET, H

87255J

HOSE, HEATER WATER INLET, J

87255K

HOSE, REAR HEATER WATER INLET, K

87256G

HOSE, REAR HEATER WATER OUTLET, G

87256J

HOSE, REAR HEATER WATER OUTLRT, J

87256K

HOSE, REAR HEATER WATER OUTLET, K

87256L

HOSE, REAR HEATER WATER OUTLET, L

9165160616

Крепеж

9611210250

Крепеж

9613442100

Крепеж

9613442300

Крепеж

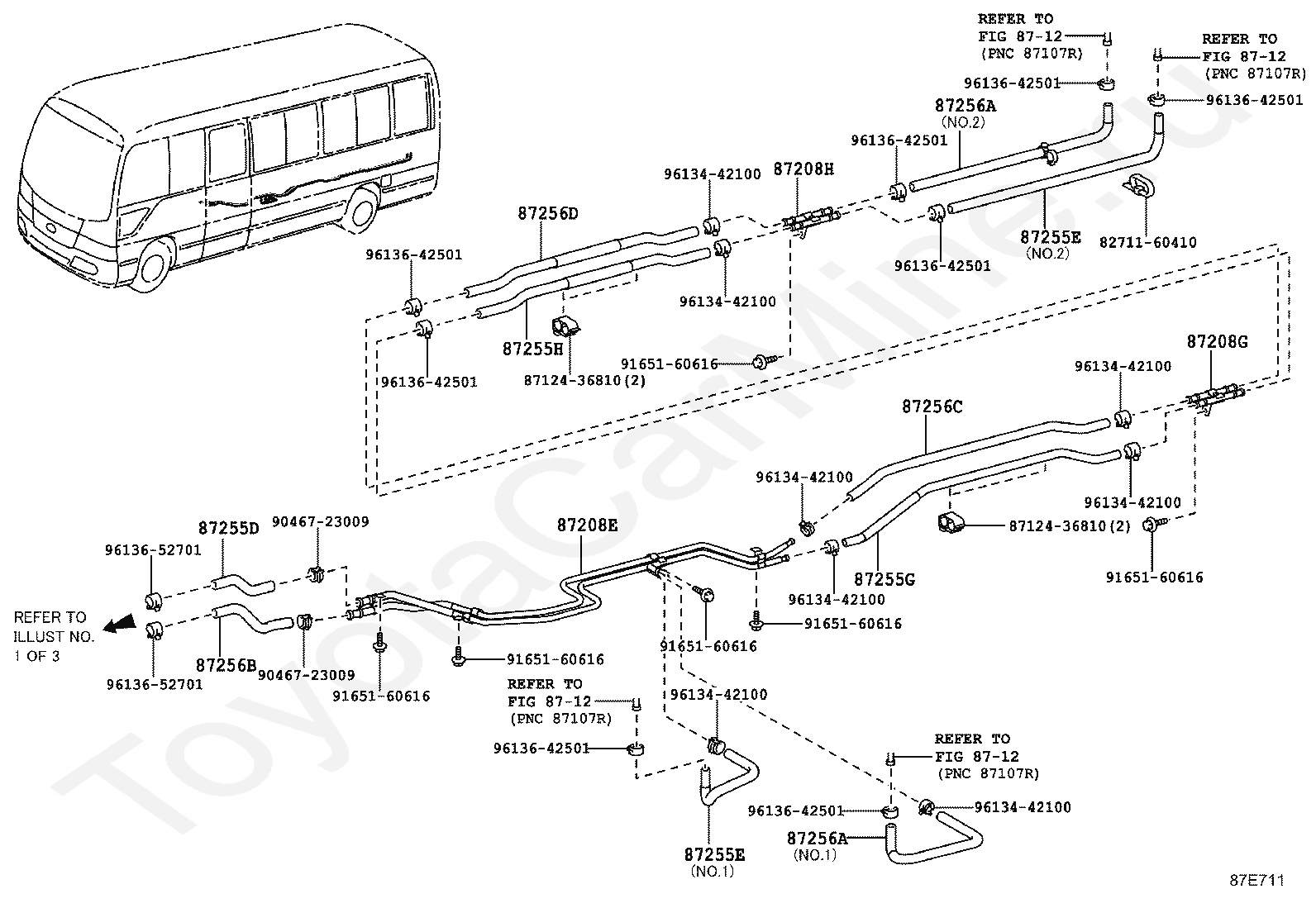

Код

Описание

8271122270

Крепеж

8712436040

Крепеж

8712436050

Крепеж

87208E

PIPE SUB-ASSY, HEATER WATER, E

87208G

PIPE SUB-ASSY, HEATER WATER, G

87208H

PIPE SUB-ASSY, HEATER WATER, H

87255D

HOSE, REAR HEATER WATER INLET, D

87255E

HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)

87255G

HOSE, REAR HEATER WATER INLET, G

87255H

HOSE, HEATER WATER INLET, H

87256A

HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)

87256B

HOSE, REAR HEATER WATER OUTLET, B

87256C

HOSE, REAR HEATER WATER OUTLET, C

87256D

HOSE, REAR HEATER WATER OUTLET, D

9046723009

Крепеж

9165160616

Крепеж

9613442100

Крепеж

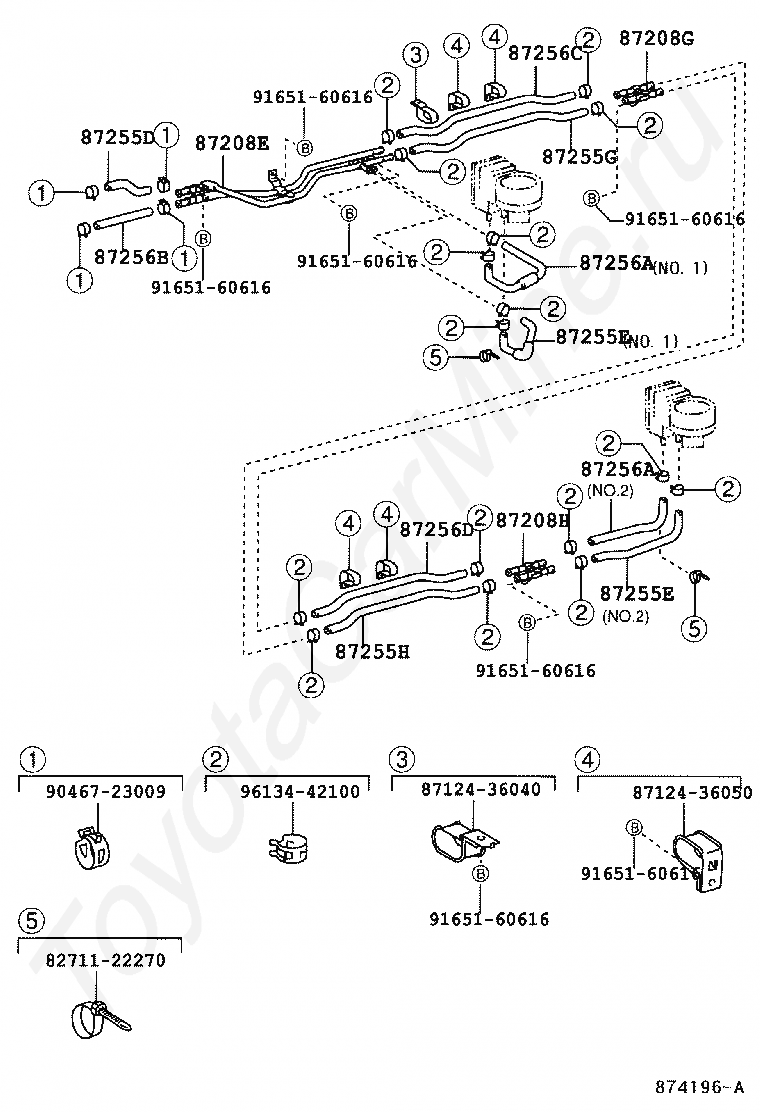

Код

Описание

8271160410

Крепеж

8712

переход к группе запчастей

8712436810

Крепеж

87208E

PIPE SUB-ASSY, HEATER WATER, E

87208G

PIPE SUB-ASSY, HEATER WATER, G

87208H

PIPE SUB-ASSY, HEATER WATER, H

87255D

HOSE, REAR HEATER WATER INLET, D

87255E

HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)

87255G

HOSE, REAR HEATER WATER INLET, G

87255H

HOSE, HEATER WATER INLET, H

87256A

HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)

87256B

HOSE, REAR HEATER WATER OUTLET, B

87256C

HOSE, REAR HEATER WATER OUTLET, C

87256D

HOSE, REAR HEATER WATER OUTLET, D

9046723009

Крепеж

9165160616

Крепеж

9613442100

Крепеж

9613642501

Крепеж

9613652701

Крепеж

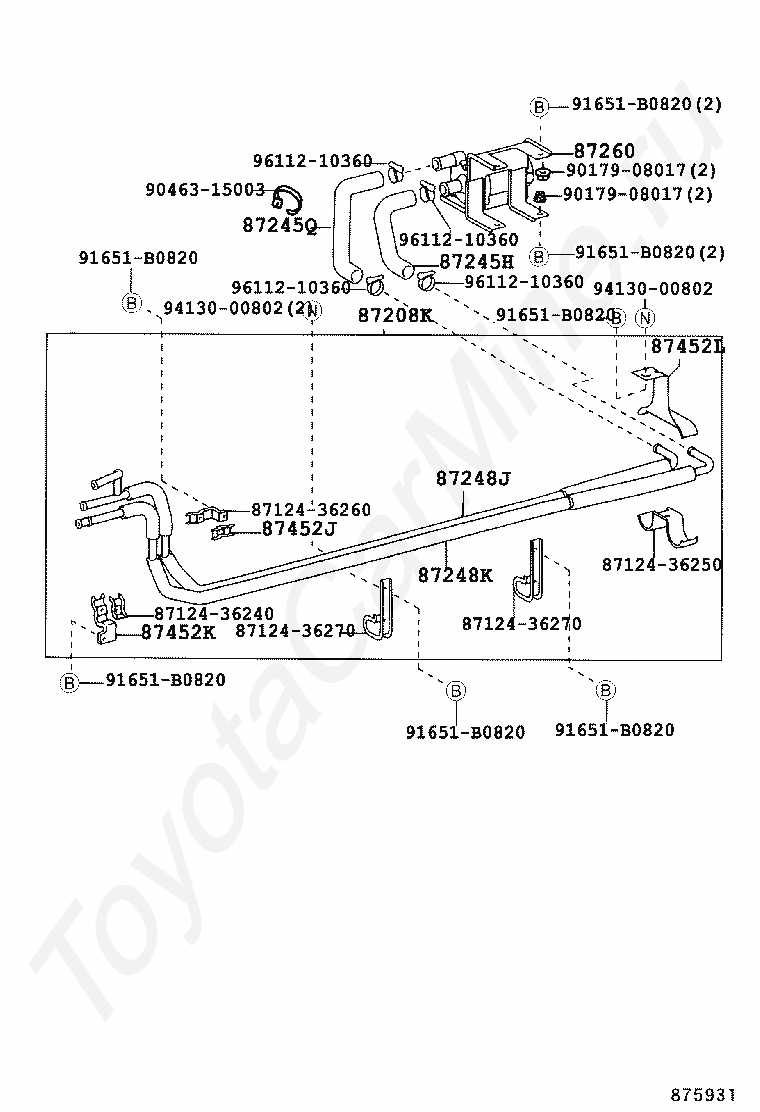

Код

Описание

8712436240

Крепеж

8712436250

Крепеж

8712436260

Крепеж

8712436270

Крепеж

87208K

PIPE SUB-ASSY, HEATER WATER, K

87245H

HOSE, HEATER WATER, INLET H

87245Q

HOSE, HEATER WATER, INLET Q

87248J

PIPE, HEATER WATER INLET, J

87248K

PIPE, HEATER WATER INLET, K

87260

PUMP ASSY, HEATER

87452J

BRACKET, REAR HEATER PIPE, NO.1

87452K

BRACKET, REAR HEATER PIPE, NO.2

87452L

BRACKET, REAR HEATER PIPE, NO.3

9017908017

Крепеж

9046315003

Крепеж

91651B0820

Крепеж

9413000802

Крепеж

9611210360

Крепеж
