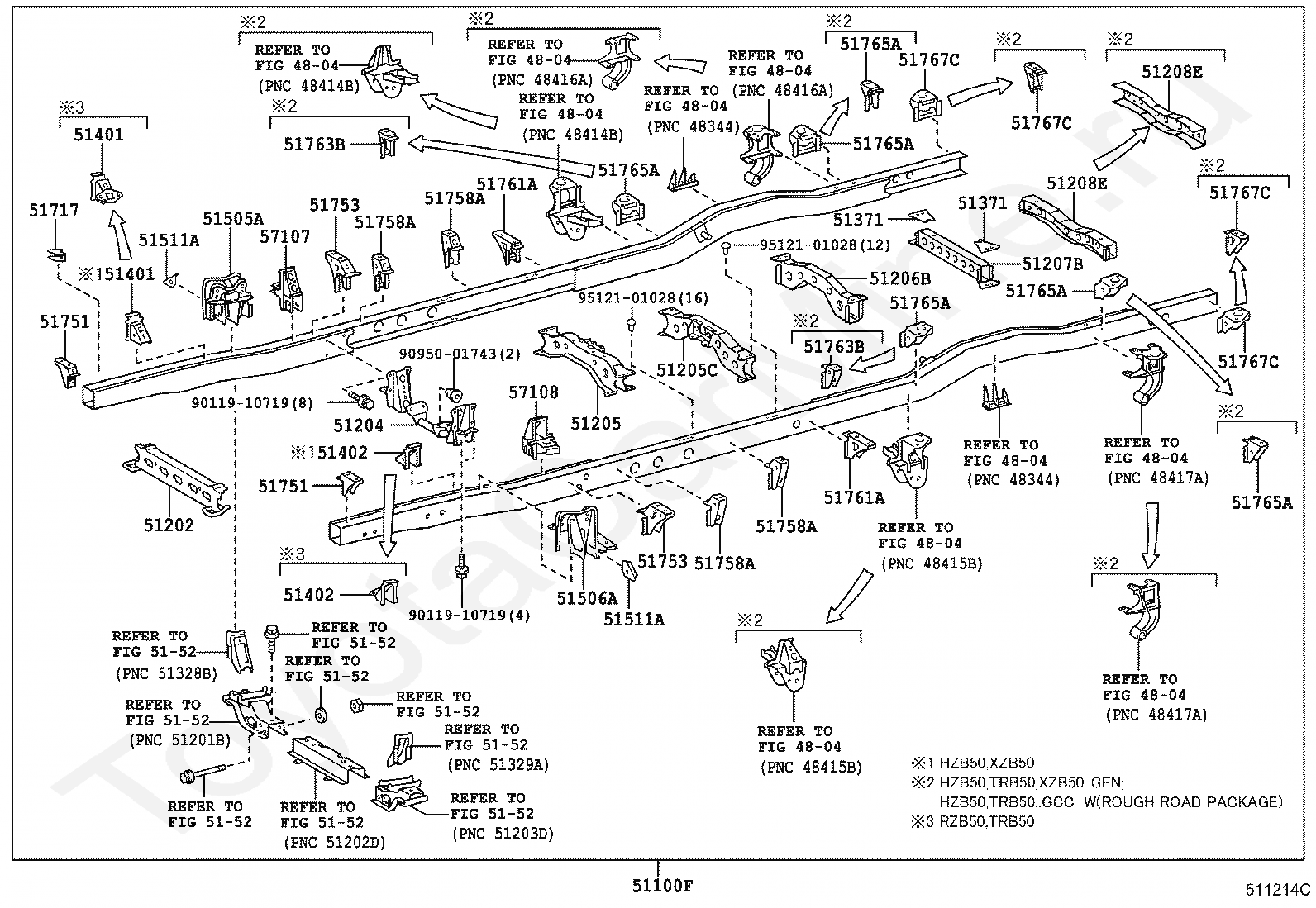

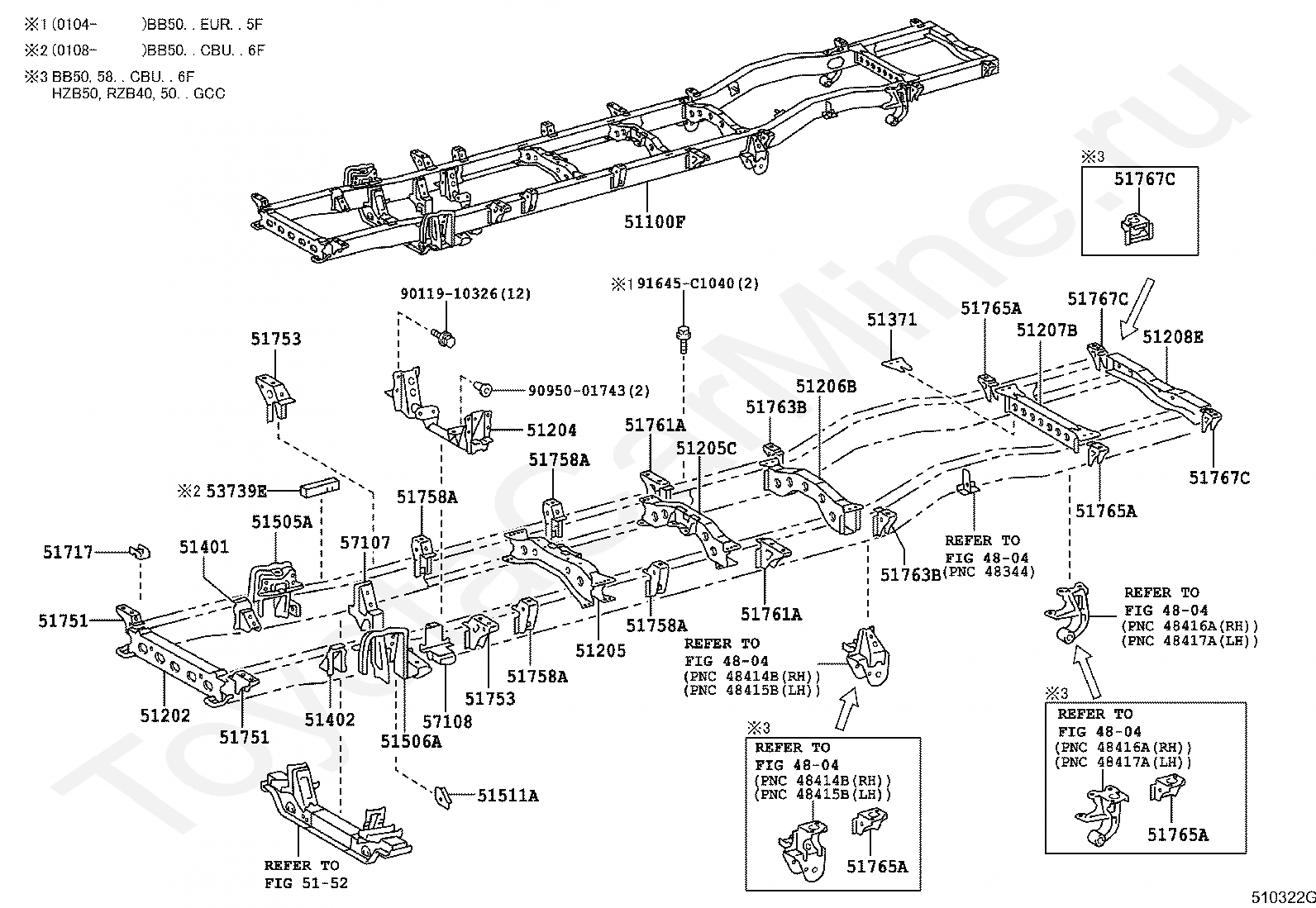

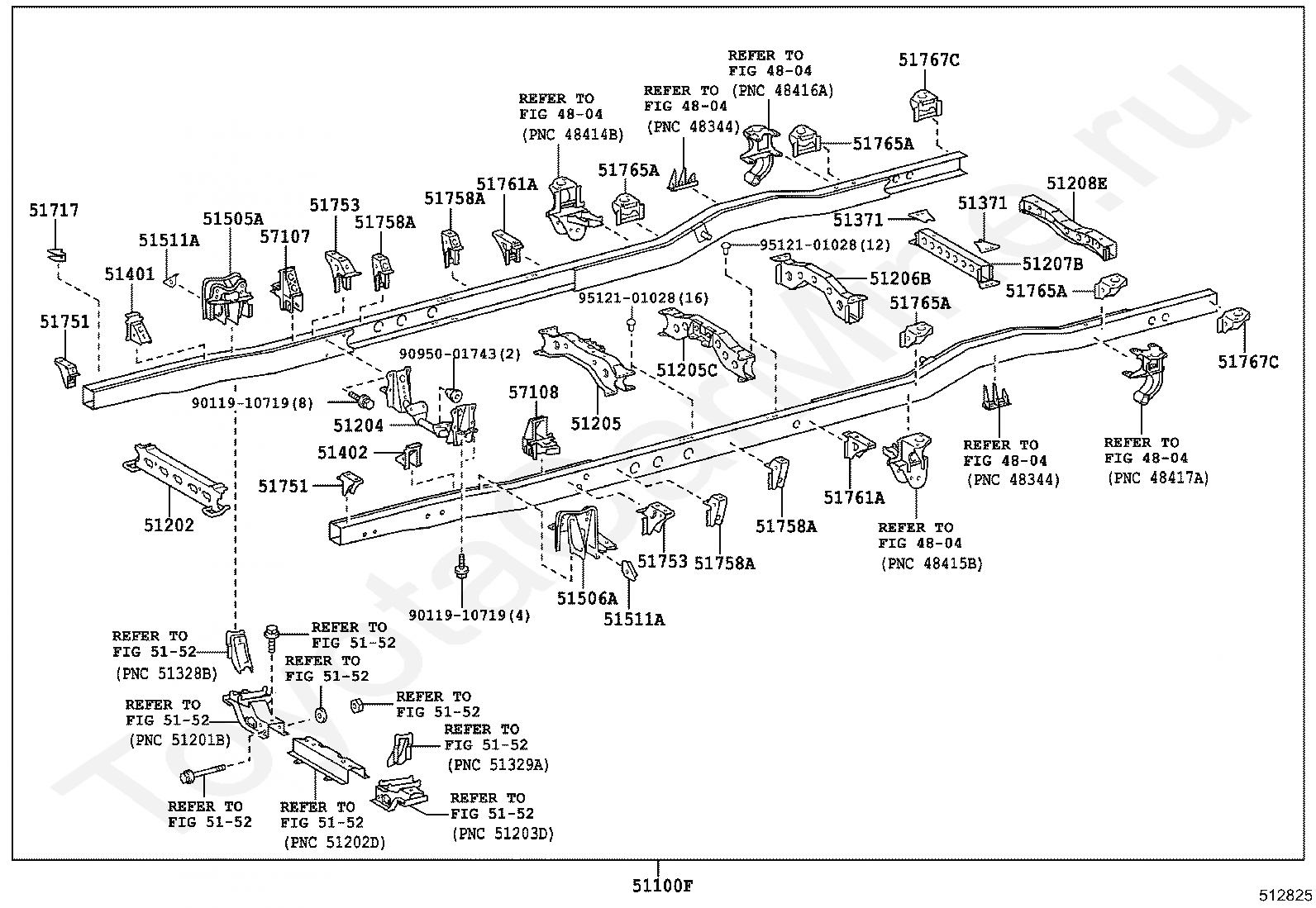

Рама TOYOTA COASTER, 1993/01 - 2025, 4,2 литра, дизель, STANDARD TYPE, HZB50, механика, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

COASTER

Двигатель

4,2 литра, дизель

Класс

STANDARD TYPE

Фрейм

HZB50

Трансмиссия

механика МКПП, 5 скоростей

Опции

левый руль STANDARD ROOF для 30 пассажиров WITHOUT COOLER GEN CBU DSL

Код

Описание

4804

переход к группе запчастей

51100F

FRAME SUB-ASSY

51202

CROSSMEMBER SUB-ASSY, FRAME, NO.1

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51206B

CROSSMEMBER SUB-ASSY, FRAME, NO.6

51207B

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51208E

CROSSMEMBER SUB-ASSY, FRAME, NO.8

51371

GUSSET, FRAME NO.7 CROSSMEMBER, NO.1

51401

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51505A

SUPPORT SUB-ASSY, UPPER CONTROL ARM

51506A

SUPPORT SUB-ASSY, UPPER CONTROL ARM, LH

51511A

SEAT, FRONT SPRING SUPPORT

5152

переход к группе запчастей

51717

PLATE, BODY SUPPORT BRACKET

51751

BRACKET, BODY SUPPORT, NO.1

51753

BRACKET, BODY SUPPORT, NO.2

51758A

BRACKET, BODY SUPPORT, NO.4 LH

51761A

BRACKET, BODY SUPPORT, NO.5 RH

51763B

BRACKET, BODY SUPPORT, NO.6

51765A

BRACKET, FRAME BODY MOUNTING, NO.7 RH

51767C

BRACKET, FRAME BODY MOUNTING, NO.8 RH

53739E

SEAL, FRONT FENDER APRON TO FRAME, REAR

57107

BRACKET SUB-ASSY, STRUT BAR, RH

57108

BRACKET SUB-ASSY, STRUT BAR, LH

9011910326

Крепеж

9095001743

Крепеж

91645C1040

Крепеж

Код

Описание

4804

переход к группе запчастей

51100F

FRAME SUB-ASSY

51202

CROSSMEMBER SUB-ASSY, FRAME, NO.1

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51206B

CROSSMEMBER SUB-ASSY, FRAME, NO.6

51207B

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51208E

CROSSMEMBER SUB-ASSY, FRAME, NO.8

51371

GUSSET, FRAME NO.7 CROSSMEMBER, NO.1

51401

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51505A

SUPPORT SUB-ASSY, UPPER CONTROL ARM

51506A

SUPPORT SUB-ASSY, UPPER CONTROL ARM, LH

51511A

SEAT, FRONT SPRING SUPPORT

5152

переход к группе запчастей

51717

PLATE, BODY SUPPORT BRACKET

51751

BRACKET, BODY SUPPORT, NO.1

51753

BRACKET, BODY SUPPORT, NO.2

51758A

BRACKET, BODY SUPPORT, NO.4 LH

51761A

BRACKET, BODY SUPPORT, NO.5 RH

51763B

BRACKET, BODY SUPPORT, NO.6

51765A

BRACKET, FRAME BODY MOUNTING, NO.7 RH

51767C

BRACKET, FRAME BODY MOUNTING, NO.8 RH

57107

BRACKET SUB-ASSY, STRUT BAR, RH

57108

BRACKET SUB-ASSY, STRUT BAR, LH

9011910719

Крепеж

9095001743

Крепеж

9512101028

Крепеж

Код

Описание

4804

переход к группе запчастей

51100F

FRAME SUB-ASSY

51202

CROSSMEMBER SUB-ASSY, FRAME, NO.1

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51206B

CROSSMEMBER SUB-ASSY, FRAME, NO.6

51207B

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51208E

CROSSMEMBER SUB-ASSY, FRAME, NO.8

51371

GUSSET, FRAME NO.7 CROSSMEMBER, NO.1

51401

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51505A

SUPPORT SUB-ASSY, UPPER CONTROL ARM

51506A

SUPPORT SUB-ASSY, UPPER CONTROL ARM, LH

51511A

SEAT, FRONT SPRING SUPPORT

5152

переход к группе запчастей

51717

PLATE, BODY SUPPORT BRACKET

51751

BRACKET, BODY SUPPORT, NO.1

51753

BRACKET, BODY SUPPORT, NO.2

51758A

BRACKET, BODY SUPPORT, NO.4 LH

51761A

BRACKET, BODY SUPPORT, NO.5 RH

51765A

BRACKET, FRAME BODY MOUNTING, NO.7 RH

51767C

BRACKET, FRAME BODY MOUNTING, NO.8 RH

57107

BRACKET SUB-ASSY, STRUT BAR, RH

57108

BRACKET SUB-ASSY, STRUT BAR, LH

9011910719

Крепеж

9095001743

Крепеж

9512101028

Крепеж

Рама TOYOTA COASTER, 1993/01 - 2025, 4,2 литра, дизель, STANDARD TYPE, HZB50, механика, МКПП, 5 скоростей
