Ручной тормоз TOYOTA COASTER, 1993/01 - 2025, 4,2 литра, дизель, STANDARD TYPE, HZB50, механика, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

COASTER

Двигатель

4,2 литра, дизель

Класс

STANDARD TYPE

Фрейм

HZB50

Трансмиссия

механика МКПП, 5 скоростей

Опции

левый руль STANDARD ROOF для 30 пассажиров WITHOUT COOLER GEN CBU DSL

Код

Описание

46201E

LEVER SUB-ASSY, PARKING BRAKE

46241

BOOT, PARKING BRAKE LEVER

46243

COVER, PARKING BRAKE LEVER

46410

CABLE ASSY, PARKING BRAKE, NO.1

46420A

CLAMP, NO.1(FOR PARKING BRAKE CABLE)

46420B

CLAMP, NO.2(FOR PARKING BRAKE CABLE)

46420F

SEAL, DUST(FOR PARKING BRAKE CABLE)

46420G

SPRING(FOR PARKING CABLE INNER WIRE SET)

46420P

SPACER, PARKING BRAKE

46420Q

RING, E(FOR PARKING BRAKE CABLE)

46451C

BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

46464

PLATE, CABLE CLAMP SUPPORT

9011906315

Крепеж

9033904024

Крепеж

9046108225

Крепеж

9046808001

Крепеж

91611G0820

Крепеж

9165140814

Крепеж

91651B0820

Крепеж

91651B0825

Крепеж

9331955016

Крепеж

9413060600

Крепеж

Код

Описание

46201E

LEVER SUB-ASSY, PARKING BRAKE

46241

BOOT, PARKING BRAKE LEVER

46243

COVER, PARKING BRAKE LEVER

46410

CABLE ASSY, PARKING BRAKE, NO.1

46420A

CLAMP, NO.1(FOR PARKING BRAKE CABLE)

46420B

CLAMP, NO.2(FOR PARKING BRAKE CABLE)

46420F

SEAL, DUST(FOR PARKING BRAKE CABLE)

46420G

SPRING(FOR PARKING CABLE INNER WIRE SET)

46420P

SPACER, PARKING BRAKE

46420Q

RING, E(FOR PARKING BRAKE CABLE)

46451C

BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

46464

PLATE, CABLE CLAMP SUPPORT

9011906315

Крепеж

9033904024

Крепеж

9046108225

Крепеж

9046808001

Крепеж

91611G0820

Крепеж

9165140814

Крепеж

91651B0820

Крепеж

91651B0825

Крепеж

9331955016

Крепеж

9413060600

Крепеж

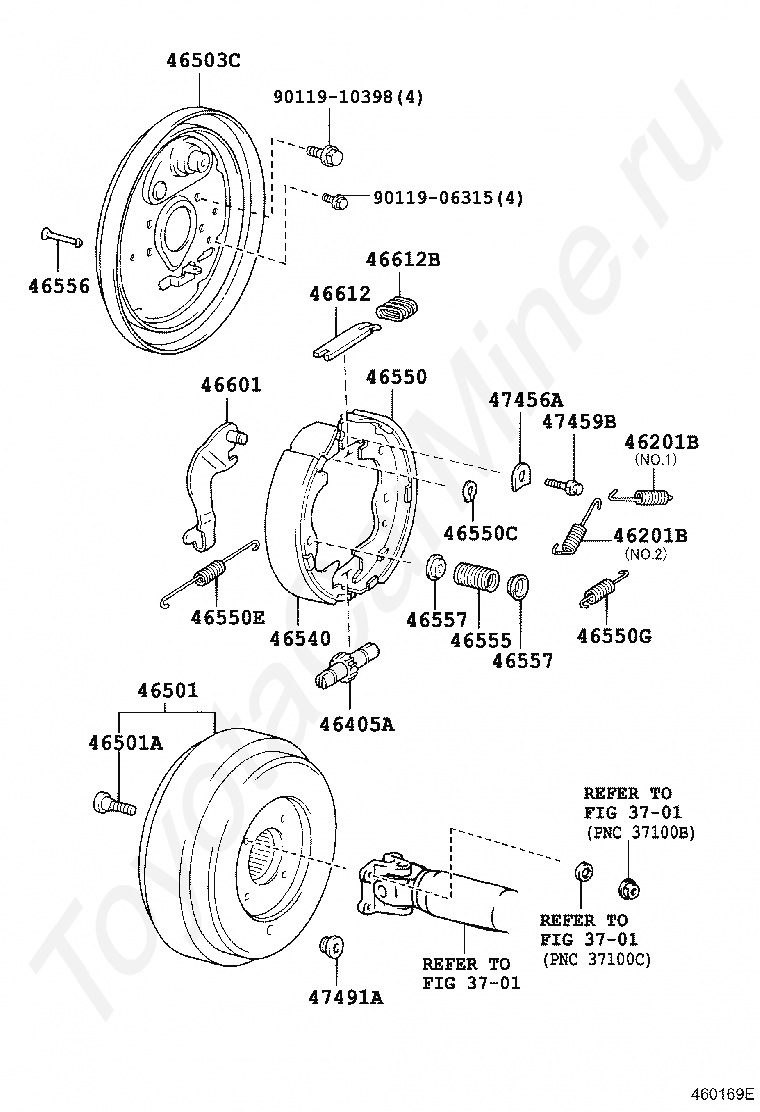

Код

Описание

3701

переход к группе запчастей

46201B

SPRING, TENSION

46405A

SCREW SET, SHOE ADJUSTING, RH

46501

DRUM SUB-ASSY, PARKING BRAKE

46501A

BOLT, SERRATION(FOR PARKING BRAKE DRUM)

46503C

PLATE SUB-ASSY, PARKING BRAKE

46540

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1

46550

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550E

SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)

46550G

SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)

46555

SPRING, BRAKE SHOE HOLD DOWN

46556

PIN, SHOE HOLD DOWN SPRING

46557

CUP, BRAKE SHOE HOLD DOWN

46601

LEVER SUB-ASSY, PARKING BRAKE SHOE

46612

STRUT, PARKING BRAKE SHOE LEVER

46612B

SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

47456A

PLATE, SHOE GUIDE(FOR PARKING BRAKE)

47459B

BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)

47491A

PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE)

9011906315

Крепеж

9011910398

Крепеж

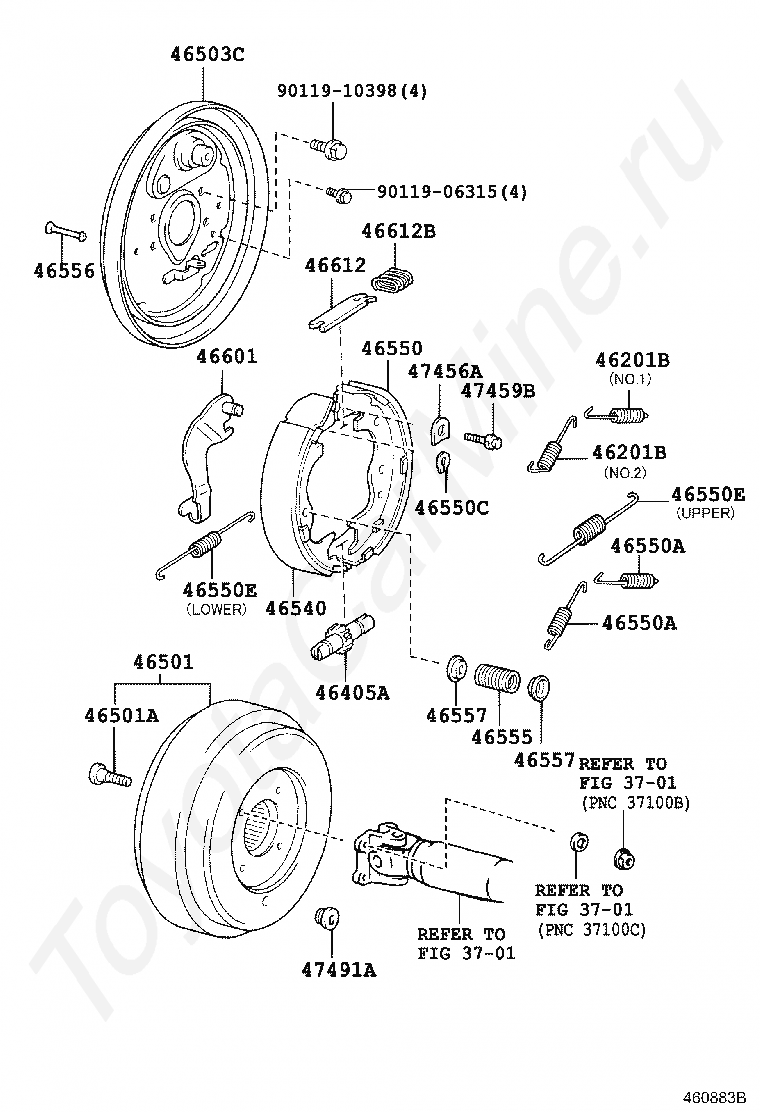

Код

Описание

3701

переход к группе запчастей

46201B

SPRING, TENSION

46405A

SCREW SET, SHOE ADJUSTING, RH

46501

DRUM SUB-ASSY, PARKING BRAKE

46501A

BOLT, SERRATION(FOR PARKING BRAKE DRUM)

46503C

PLATE SUB-ASSY, PARKING BRAKE

46540

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1

46550

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2

46550A

SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550E

SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)

46555

SPRING, BRAKE SHOE HOLD DOWN

46556

PIN, SHOE HOLD DOWN SPRING

46557

CUP, BRAKE SHOE HOLD DOWN

46601

LEVER SUB-ASSY, PARKING BRAKE SHOE

46612

STRUT, PARKING BRAKE SHOE LEVER

46612B

SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

47456A

PLATE, SHOE GUIDE(FOR PARKING BRAKE)

47459B

BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)

47491A

PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE)

9011906315

Крепеж

9011910398

Крепеж
