Каталог
Ближний ВостокМодель
COASTERДвигатель
4,2 литра, дизельКласс
STANDARD TYPEФрейм
HZB50Трансмиссия
механика МКПП, 5 скоростейОпции
левый руль STANDARD ROOF для 30 пассажиров WITHOUT COOLER GEN CBU DSL

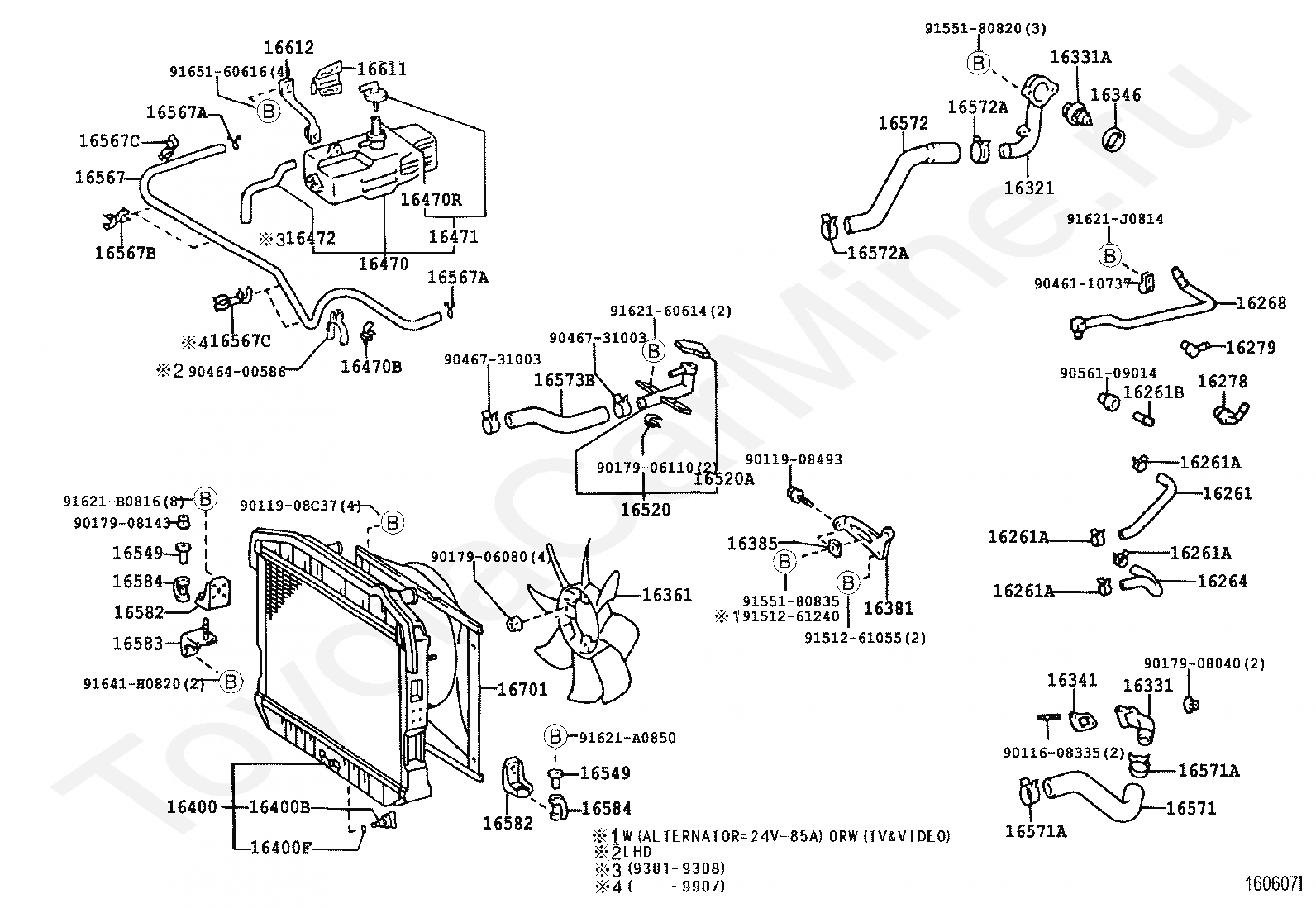

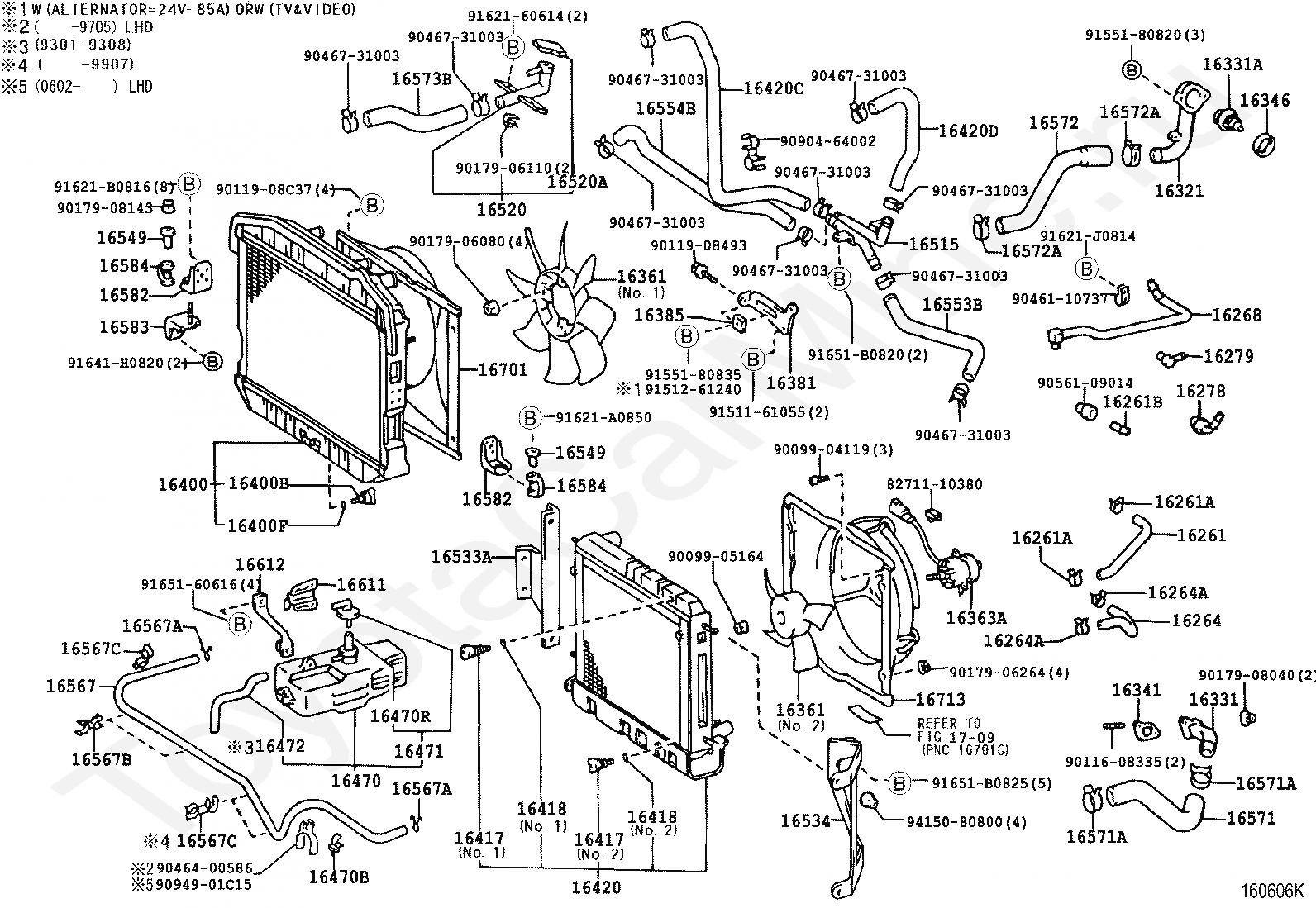

Код
Описание
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261B
UNION(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16268
PIPE, WATER BY-PASS, NO.1
16278
PIPE, WATER BY-PASS, NO.2
16279
PIPE, WATER BY-PASS, NO.3
16321
INLET, WATER
16331
OUTLET, WATER
16331A
THERMOSTAT
16341
GASKET, WATER OUTLET
16346
GASKET, THERMOSTAT
16361
FAN
16363A
MOTOR, COOLING FAN, NO.2
16381
BAR, FAN BELT ADJUSTING
16385
SLIDER, FAN BELT ADJUSTING
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16417
COCK
16418
PACKING
16420
RADIATOR ASSY, SUB
16420C
HOSE, SUB RADIATOR, NO.1
16420D
HOSE, SUB RADIATOR, NO.2
16470
TANK ASSY, RADIATOR RESERVE
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470R
HOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16472
HOSE, BREATHER
16515
PIPE, SUB RADIATOR, NO.1
16520
FILLER ASSY, WATER
16520A
CAP SUB-ASSY, WATER FILLER
16533A
SUPPORT, SUB-RADIATOR
16534
SUPPORT, RADIATOR, NO.2
16549
COLLAR, RADIATOR SUPPORT, NO.2
16553B
HOSE, SUB RADIATOR, NO.3
16554B
HOSE, SUB RADIATOR, NO.4
16567
HOSE(FOR RADIATOR RESERVE TANK)
16567A
CLIP(FOR RADIATOR RESERVE TANK HOSE)
16567B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)
16567C
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3)
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16573B
HOSE, RADIATOR, NO.3
16582
BRACKET, RADIATOR, NO.1
16583
BRACKET, RADIATOR, NO.2
16584
INSULATOR, RADIATOR MOUNTING
16611
BRACKET, RADIATOR RESERVE TANK
16612
BRACKET, RADIATOR RESERVE TANK, NO.2
16701
SHROUD SUB-ASSY, FAN
16713
SHROUD, FAN, NO.3
1709
переход к группе запчастей
8271110380
Крепеж
9009904119
Крепеж
9009905164
Крепеж
9011608335
Крепеж
9011908493
Крепеж
9011908C37
Крепеж
9017906080
Крепеж
9017906110
Крепеж
9017906264
Крепеж
9017908040
Крепеж
9017908143
Крепеж
9046110737
Крепеж
9046400586
Крепеж
9046731003
Крепеж
9056109014
Крепеж
9090464002
Крепеж
9094901C15
Крепеж
9151161055
Крепеж
9151261240
Крепеж
9155180820
Крепеж
9155180835
Крепеж
9162160614
Крепеж
91621A0850
Крепеж
91621B0816
Крепеж
91621J0814
Крепеж
91641H0820
Крепеж
9165160616
Крепеж
91651B0820
Крепеж
91651B0825
Крепеж
9415080800
Крепеж
Код
Описание
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261B
UNION(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16268
PIPE, WATER BY-PASS, NO.1
16278
PIPE, WATER BY-PASS, NO.2
16279
PIPE, WATER BY-PASS, NO.3
16321
INLET, WATER
16331
OUTLET, WATER
16331A
THERMOSTAT
16341
GASKET, WATER OUTLET
16346
GASKET, THERMOSTAT
16361
FAN
16381
BAR, FAN BELT ADJUSTING
16385
SLIDER, FAN BELT ADJUSTING
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16470
TANK ASSY, RADIATOR RESERVE
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470R
HOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16472
HOSE, BREATHER
16520
FILLER ASSY, WATER
16520A
CAP SUB-ASSY, WATER FILLER
16549
COLLAR, RADIATOR SUPPORT, NO.2
16567
HOSE(FOR RADIATOR RESERVE TANK)
16567A
CLIP(FOR RADIATOR RESERVE TANK HOSE)
16567B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)
16567C
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3)
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16573B
HOSE, RADIATOR, NO.3
16582
BRACKET, RADIATOR, NO.1
16583
BRACKET, RADIATOR, NO.2
16584
INSULATOR, RADIATOR MOUNTING
16611
BRACKET, RADIATOR RESERVE TANK
16612
BRACKET, RADIATOR RESERVE TANK, NO.2
16701
SHROUD SUB-ASSY, FAN
9011608335
Крепеж
9011908493
Крепеж
9011908C37
Крепеж
9017906080
Крепеж
9017906110
Крепеж
9017908040
Крепеж
9017908143
Крепеж
9046110737
Крепеж
9046400586
Крепеж
9046731003
Крепеж
9056109014
Крепеж
9151261055
Крепеж
9151261240
Крепеж
9155180820
Крепеж
9155180835
Крепеж
9162160614
Крепеж
91621A0850
Крепеж
91621B0816
Крепеж
91621J0814
Крепеж
91641H0820
Крепеж
9165160616
Крепеж

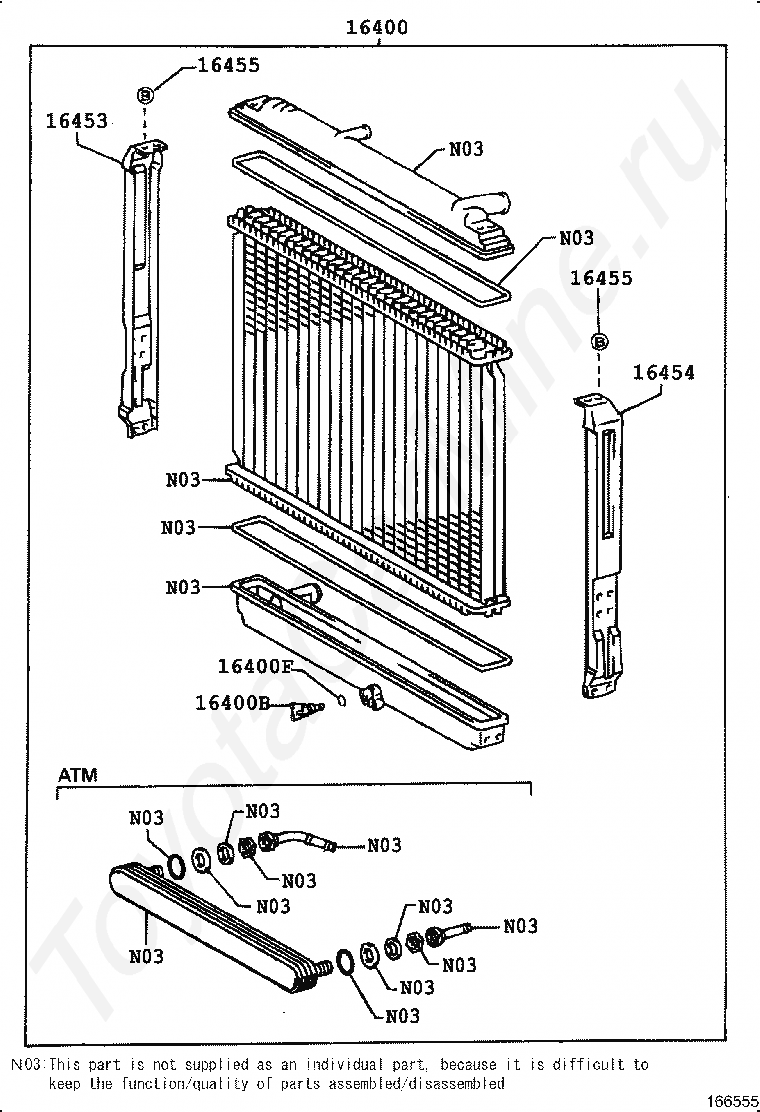

Код
Описание
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16453
PLATE, RADIATOR SIDE
16454
PLATE, RADIATOR SIDE
16455
BOLT, RADIATOR SIDE SUPPORT PLATE

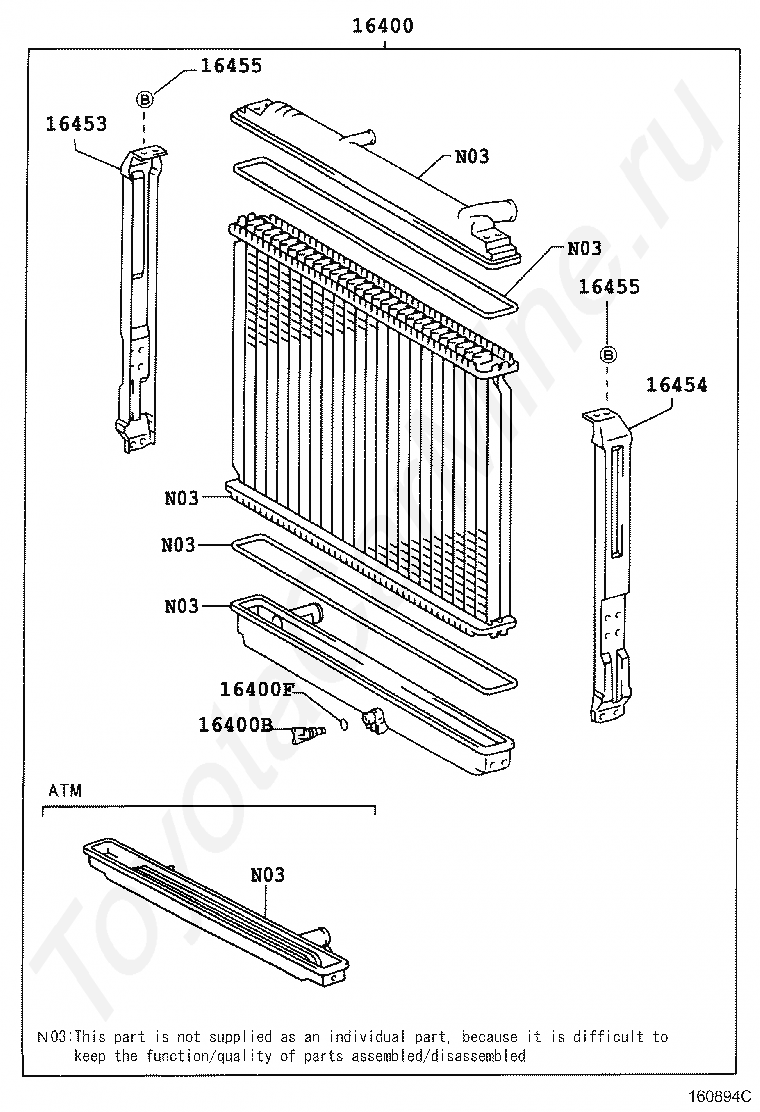

Код
Описание
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16453
PLATE, RADIATOR SIDE
16454
PLATE, RADIATOR SIDE
16455
BOLT, RADIATOR SIDE SUPPORT PLATE

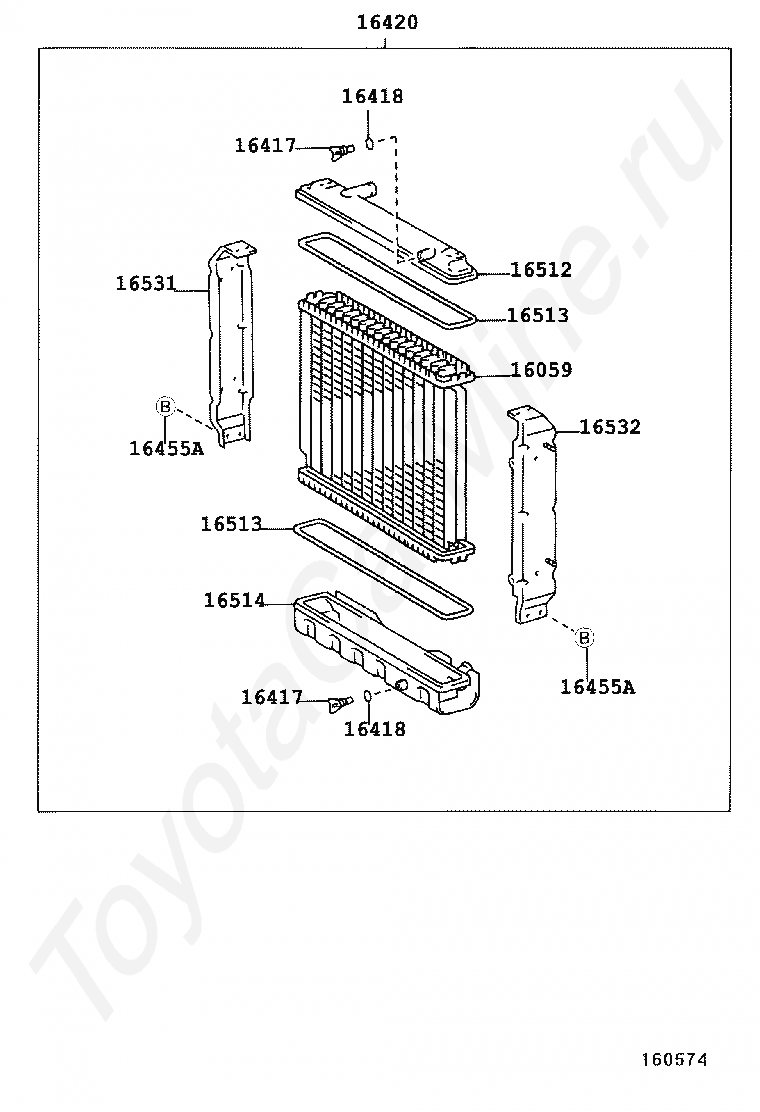

Код
Описание
16059
CORE SUB-ASSY, SUB RADIATOR
16417
COCK
16418
PACKING
16420
RADIATOR ASSY, SUB
16455A
BOLT, SUB RADIATOR SIDE
16512
TANK, SUB RADIATOR, UPPER
16513
SEAL, SUB-RADIATOR TANK
16514
TANK, SUB RADIATOR, LOWER
16531
PLATE, SUB RADIATOR SIDE SUPPORT, RH
16532
PLATE, SUB RADIATOR SIDE SUPPORT, LH
