Каталог
ЕвропаМодель
CENTURYДвигатель
5 литров, 48 клапана DOHC, EFIФрейм
GZG50Опции
правый руль
Код
Описание

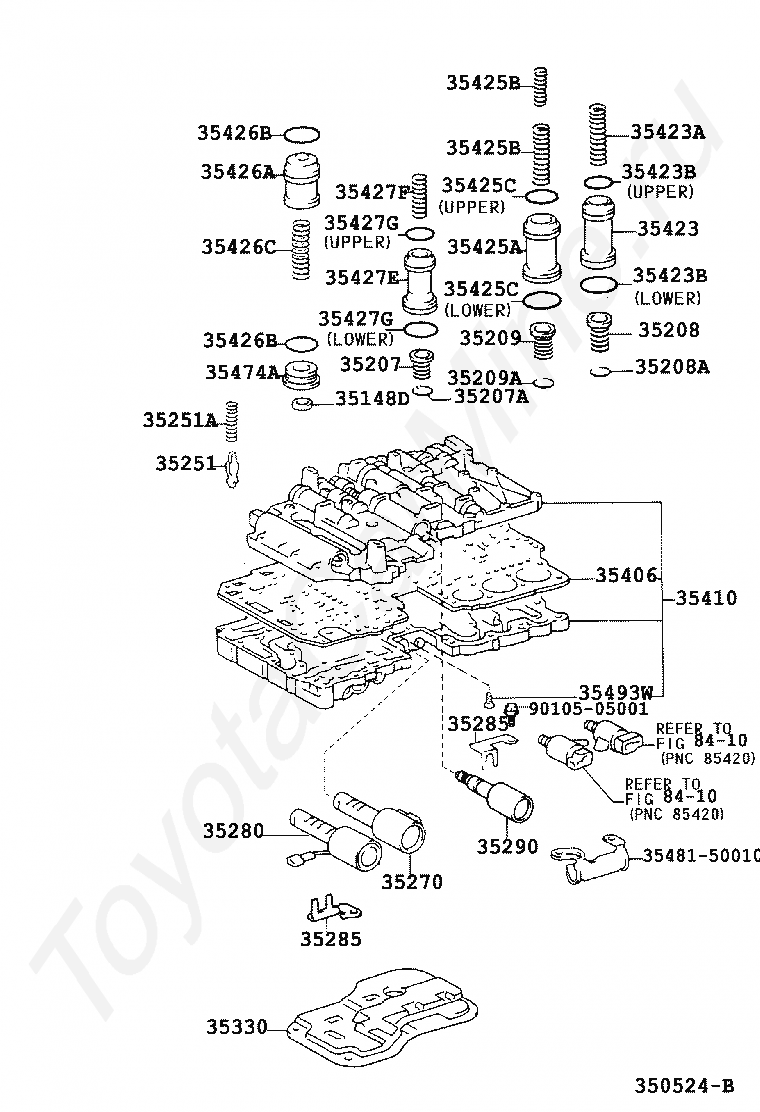

35148D
GASKET (FOR C-O ACCUMULATOR PISTON)
35207
SPRING SUB-ASSY, B-0 ACCUMULATOR
35207A
RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)
35208
SPRING SUB-ASSY, B-2 ACCUMULATOR
35208A
RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
35209
SPRING SUB-ASSY, C-2 ACCUMULATOR
35209A
RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35251
BODY, CHECK BALL
35251A
SPRING, COMPRESSION (FOR CHECK BALL BODY)
35270
SOLENOID ASSY, SHIFT CONTROL
35280
SOLENOID ASSY, LOCK UP CONTROL
35285
PLATE, SOLENOID LOCK
35290
SOLENOID ASSY, LINE PRESSURE CONTROL
35330
STRAINER ASSY, VALVE BODY OIL
35406
PLATE SUB-ASSY, VALVE BODY
35410
BODY ASSY, TRANSMISSION VALVE
35423
PISTON, B-2 ACCUMULATOR
35423A
SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35423B
RING, O (FOR B-2 ACCUMULATOR PISTON)
35425A
PISTON, C-2 ACCUMULATOR
35425B
SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425C
RING, O (FOR C-2 ACCUMULATOR PISTON)
35426A
PISTON, C-0 ACCUMULATOR
35426B
RING, O (FOR C-0 ACCUMULATOR PISTON)
35426C
SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
35427E
PISTON, B-0 ACCUMULATOR
35427F
SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
35427G
RING, O (FOR B-0 ACCUMULATOR PISTON)
35474A
COVER, ACCUMULATOR
3548150010
Крепеж
35493W
SEAT, VALVE BODY
8410
переход к группе запчастей

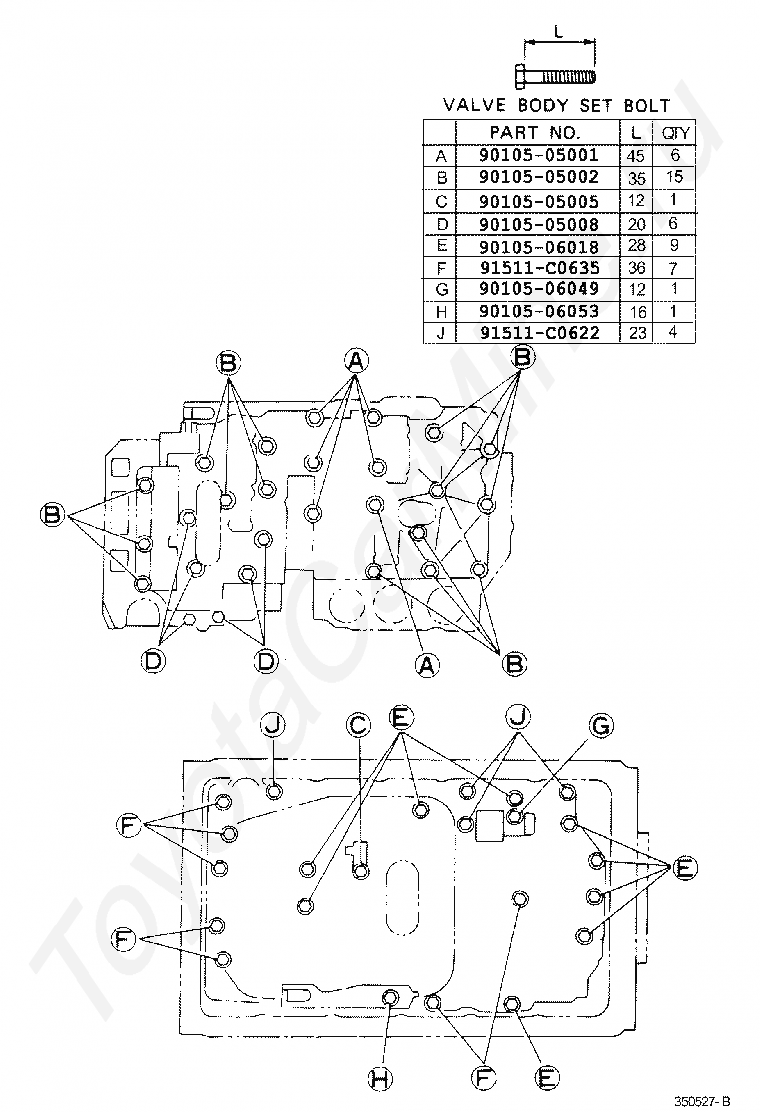

9010505001
Крепеж
Код
Описание

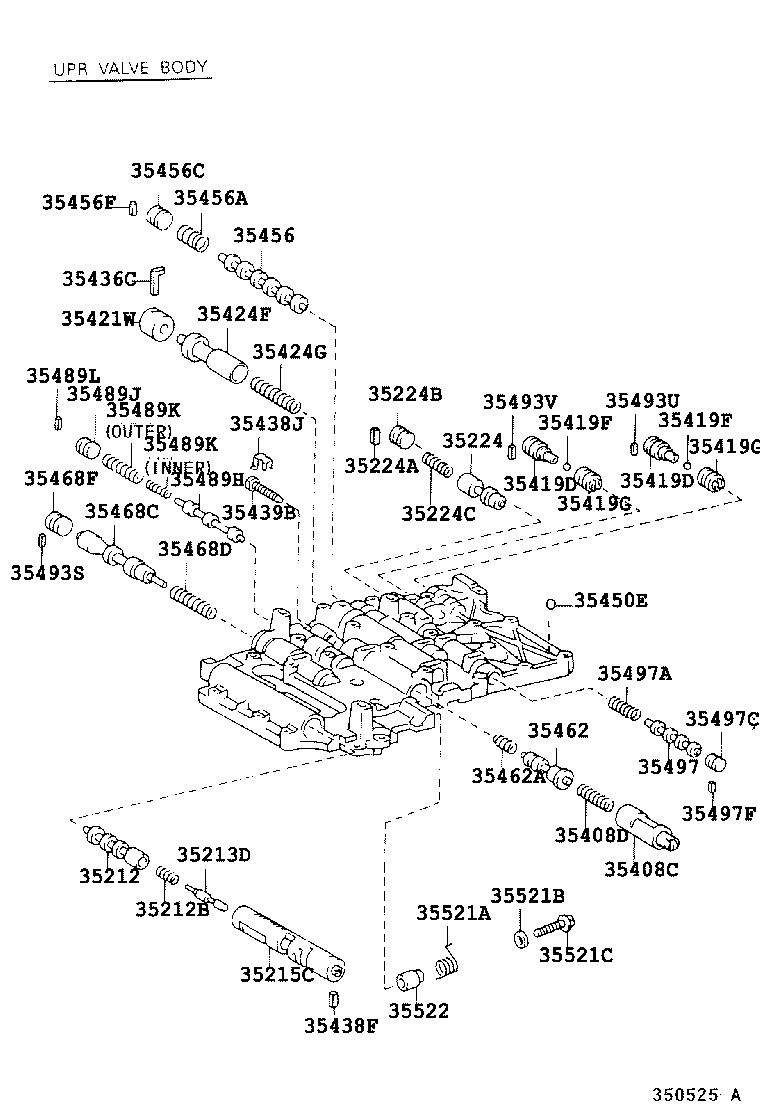

35212
VALVE, LOCK UP RELAY
35212B
SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)
35213D
PLUNGER, LOCK UP RELAY VALVE
35215C
SLEEVE, LOCK UP RELAY VALVE, NO.1
35224
VALVE, REVERSE CONTROL
35224A
KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)
35224B
PLUG (FOR REVERSE CONTROL VALVE)
35224C
SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)
35408C
PLUG SUB-ASSY, THROTTLE VALVE
35408D
SPRING, COMPRESSION (FOR THROTTLE VALVE PLUG)
35419D
VALVE, CHECK, NO.2
35419F
BALL, CHECK VALVE
35419G
VALVE, CHECK, NO.4
35421W
PLUG, C-1 ACCUMULATOR VALVE
35424F
VALVE, C-1 ACCUMULATOR
35424G
SPRING, COMPRESSION (FOR C-1 ACCUMULATOR VALVE)
35436C
RETAINER, C-1 ACCUMULATOR VALVE
35438F
SEAT, DETENT SPRING
35438J
SEAT, THROTTLE VALVE SPRING
35439B
SCREW, THROTTLE VALVE
35450E
BALL (FOR UPPER VALVE BODY)
35456
VALVE, 2-3 SHIFT
35456A
SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35456C
PLUG (FOR 2-3 SHIFT VALVE)
35456F
KEY, STRAIGHT (FOR 2-3 SHIFT VALVE)
35462
VALVE, THROTTLE
35462A
SPRING, COMPRESSION (FOR THROTTLE VALVE)
35468C
VALVE, SECONDARY REGULATOR
35468D
SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
35468F
PLUG (FOR SECONDARY REGULATOR VALVE)
35489H
VALVE, C-1 ORIFICE CONTROL
35489J
PLUG (FOR C-1 ORIFICE CONTROL VALVE)
35489K
SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE)
35489L
KEY, STRAIGHT (FOR C-1 ORIFICE CONTROL VALVE)
35493S
SEAT, SECONDARY REGULATOR VALVE PLUG
35493U
SEAT, CHECK VALVE, NO.1
35493V
SEAT, CHECK VALVE, NO.2
35497
VALVE, 3-4 SHIFT
35497A
SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)
35497C
PLUG (FOR 3-4 SHIFT VALVE)
35497F
KEY, STRAIGHT (FOR 3-4 SHIFT VALVE)
35521A
SPRING (FOR THROTTLE VALVE CAM RETURN)
35521B
WASHER (FOR THROTTLE VALVE CAM SET)
35521C
BOLT (FOR THROTTLE VALVE CAM SET)
35522
PIN, THROTTLE VALVE CAM
Код
Описание

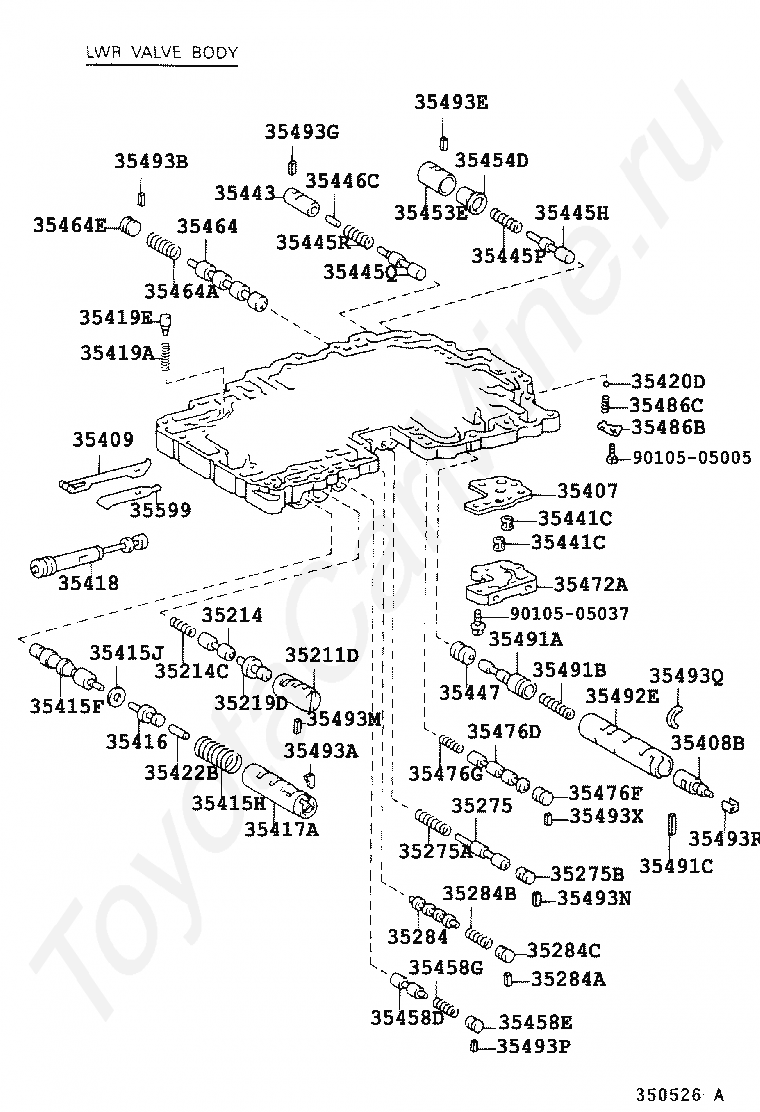

35211D
SLEEVE, LOCK UP CONTROL VALVE
35214
VALVE, LOCK UP CONTROL
35214C
SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE)
35219D
PLUNGER, LOCK UP CONTROL VALVE
35275
VALVE, SOLENOID MODULATOR
35275A
SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE)
35275B
PLUG (FOR SOLENOID MODULATOR VALVE)
35284
VALVE, SOLENOID RELAY
35284A
KEY, STRAIGHT (FOR SOLENOID RELAY VALVE)
35284B
SPRING, COMPRESSION (FOR SOLENOID RELAY VALVE)
35284C
PLUG (FOR SOLENOID RELAY VALVE)
35407
PLATE SUB-ASSY, VALVE BODY COVER
35408B
PLUG SUB-ASSY, ACCUMULATOR CONTROL VALVE
35409
SPRING SUB-ASSY, MANUAL DETENT
35415F
VALVE, PRIMARY REGULATOR
35415H
SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)
35415J
WASHER (FOR PRIMARY REGULATOR VALVE)
35416
PLUNGER, PRIMARY REGULATOR VALVE, NO.1
35417A
SLEEVE, PRIMARY REGULATOR VALVE
35418
VALVE, MANUAL
35419A
SPRING, COMPRESSION (FOR CHECK VALVE)
35419E
VALVE, CHECK, NO.3
35420D
BALL (FOR LOWER VALVE BODY)
35422B
PLUNGER, PRIMARY REGULATOR VALVE, NO.2
35441C
STRAINER, SOLENOID OIL
35443
SLEEVE, LOW COAST SHIFT CONTROL VALVE
35445H
VALVE, 2ND COAST MODULATOR
35445P
SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE)
35445Q
VALVE, LOW COAST MODULATOR
35445R
SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)
35446C
PLUNGER, LOW COAST MODULATOR VALVE
35447
PLUNGER, ACCUMULATOR CONTROL VALVE
35453E
SLEEVE, 2ND COAST MODULATOR VALVE
35454D
PLUNGER, 2ND COAST MODULATOR VALVE
35458D
VALVE, CUT BACK
35458E
PLUG (FOR CUT BACK VALVE)
35458G
SPRING, COMPRESSION (FOR CUT BACK VALVE)
35464
VALVE, 1-2 SHIFT
35464A
SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
35464E
PLUG (FOR 1-2 SHIFT VALVE)
35472A
COVER, LOWER VALVE BODY
35476D
VALVE, CUT OFF
35476F
PLUG (FOR CUT OFF VALVE)
35476G
SPRING, COMPRESSION (FOR CUT OFF VALVE)
35486B
SEAT, PRESSURE RELIEF VALVE SPRING
35486C
SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE)
35491A
VALVE, ACCUMULATOR CONTROL, NO.1
35491B
SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C
KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492E
SLEEVE, ACCUMULATOR CONTROL VALVE
35493A
SEAT, PRIMARY REGULATOR VALVE PLUG
35493B
SEAT, 1-2 SHIFT VALVE PLUG
35493E
SEAT, 2ND COAST MODULATOR VALVE PLUG
35493G
SEAT, LOW COAST MODULATOR VALVE PLUG
35493M
SEAT, LOCK UP CONTROL VALVE PLUG
35493N
SEAT, SOLENOID MODULATOR VALVE PLUG
35493P
SEAT, CUT BACK VALVE PLUG
35493Q
SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1
35493R
SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.2
35493X
SEAT, CUT OFF VALAE
35599
COVER, MANUAL DETENT SPRING
9010505005
Крепеж
9010505037
Крепеж
Код
Описание
9010505001
Крепеж
9010505002
Крепеж
9010505005
Крепеж
9010505008
Крепеж
9010506018
Крепеж
9010506049
Крепеж
9010506053
Крепеж
91511C0622
Крепеж
91511C0635
Крепеж
