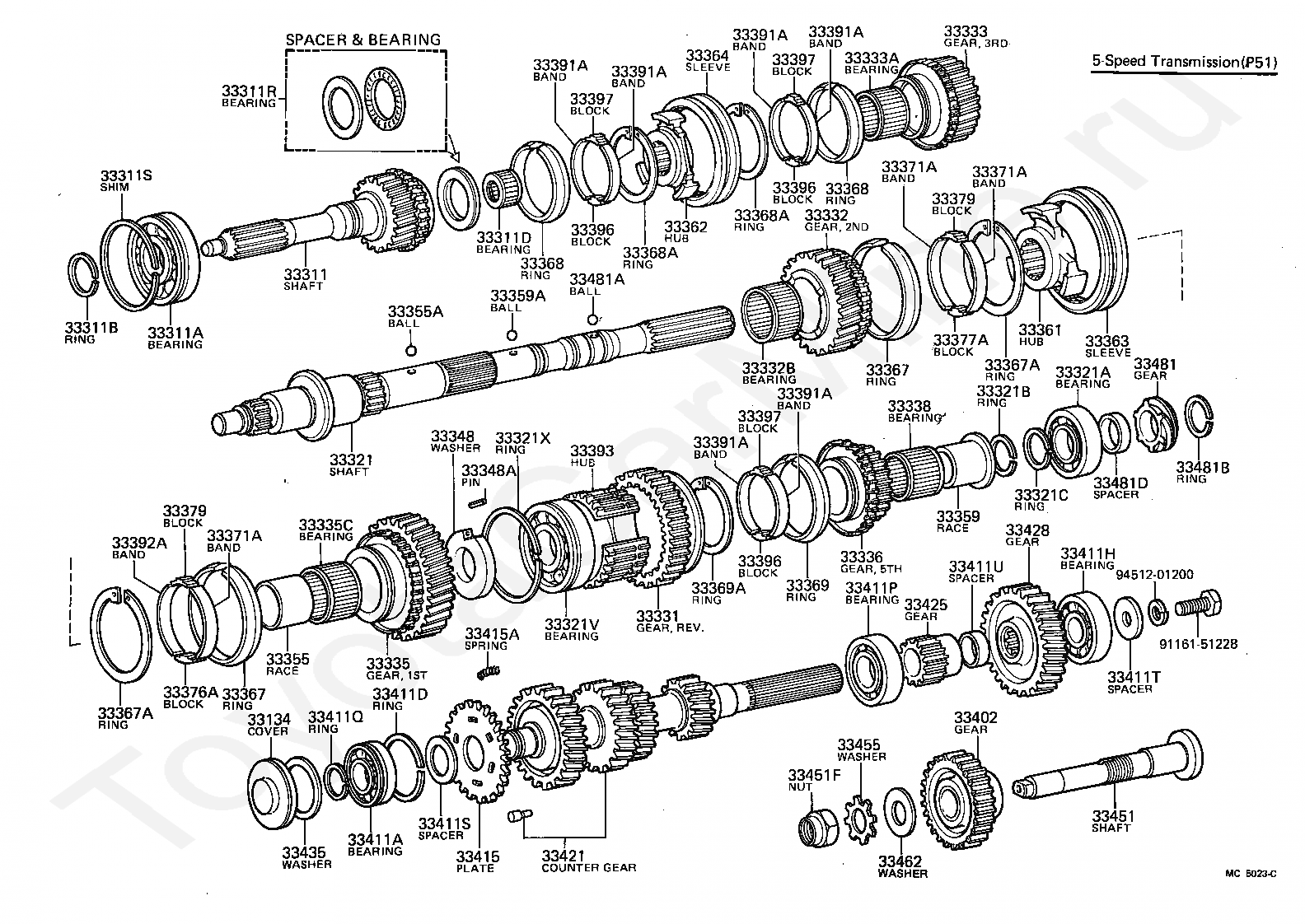

TRANSMISSION GEAR (MTM) TOYOTA CELICA, 1977/08 - 1981/07, 2 литра, DOHC, POUNDS, GT TYPE, RA40, механика, МКПП, 5 скоростей

Каталог

Европа

Модель

CELICA

Двигатель

2 литра, DOHC

Кузов

POUNDS

Класс

GT TYPE

Фрейм

RA40

Трансмиссия

механика МКПП, 5 скоростей

Опции

правый руль GENERAL COUNTRIES

Код

Описание

33134

COVER, TRANSMISSION COUNTERSHAFT

33311

SHAFT, INPUT

33311A

BEARING (FOR INPUT SHAFT FRONT)

33311B

RING, SHAFT SNAP (FOR FRONT BEARING)

33311D

BEARING, INPUT SHAFT

33311G

RING, SHAFT SNAP (FOR FRONT BEARING)

33321

SHAFT, OUTPUT

33321A

BEARING (FOR OUTPUT SHAFT REAR)

33321B

RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

33321C

RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

33321D

RING, SHAFT SNAP (FOR CLUTCH HUB SET)

33321V

BEARING (FOR OUTPUT SHAFT CENTER)

33321X

RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)

33331

GEAR, REVERSE

33332

GEAR, 2ND

33333

GEAR, 3RD

33335

GEAR, 1ST

33335C

BEARING, NEEDLE ROLLER(FOR 1ST GEAR)

33336

GEAR, 5TH

33338

BUSH OR BEARING, 5TH GEAR

33355

RACE, 1ST GEAR BEARING INNER

33355A

KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK

33359

RACE, 5TH GEAR BEARING INNER

33359A

BALL, 5TH GEAR BEARING INNER RACE LOCK

33361

HUB, TRANSMISSION CLUTCH, NO.1

33362

HUB, TRANSMISSION CLUTCH, NO.2

33363

SLEEVE, TRANSMISSION HUB, NO.1

33364

SLEEVE, TRANSMISSION HUB, NO.2

33365

KEY, SYNCHROMESH SHIFTING, NO.1

33366

KEY, SYNCHROMESH SHIFTING, NO.2

33367

RING, SYNCHRONIZER, NO.1

33368

RING, SYNCHRONIZER, NO.2

33369

RING, SYNCHRONIZER, NO.3

33371

SPRING, SYNCHROMESH SHIFTING KEY, NO.1

33376

SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)

33377

KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)

33377B

RING, SNAP (FOR SYNCHROMESH SHIFTING KEY)

33391

SPRING, SYNCHROMESH SHIFTING KEY, NO.2

33393

HUB, TRANSMISSION CLUTCH, NO.3

33402

GEAR SUB-ASSY, REVERSE IDLER

33411A

BEARING OR ROLLER(FOR COUNTER GEAR FRONT)

33411D

RING, COUNTER GEAR FRONT BEARING SNAP, NO.1

33411H

BEARING OR ROLLER(FOR COUNTER GEAR REAR)

33411P

BEARING, COUNTER SHAFT CENTER

33411Q

RING, COUNTER GEAR FRONT BEARING SNAP, NO.2

33411R

RING, SNAP, COUNTER GEAR REAR BEARING

33421

GEAR, COUNTER

33425

GEAR, COUNTERSHAFT REVERSE

33428

GEAR, COUNTERSHAFT 5TH

33435

WASHER, COUNTER GEAR CASE SIDE THRUST

33451

SHAFT, REVERSE IDLER GEAR

33452

STOPPER, REVERSE IDLER GEAR SHAFT

33453

SPACER, REVERSE IDLER GEAR SHAFT

33481

GEAR, SPEEDOMETER DRIVE (MTM)

33481A

KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)

33481B

RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

33481D

SPACER (FOR SPEEDOMETER DRIVE GEAR)

9161140818

Крепеж

Код

Описание

33134

COVER, TRANSMISSION COUNTERSHAFT

33311

SHAFT, INPUT

33311A

BEARING (FOR INPUT SHAFT FRONT)

33311B

RING, SHAFT SNAP (FOR FRONT BEARING)

33311D

BEARING, INPUT SHAFT

33311R

BEARING, NEEDLE ROLLER

33311S

SHIM (FOR THRUST NEEDLE ROLLER BEARING)

33321

SHAFT, OUTPUT

33321A

BEARING (FOR OUTPUT SHAFT REAR)

33321B

RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

33321C

RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

33321V

BEARING (FOR OUTPUT SHAFT CENTER)

33321X

RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)

33331

GEAR, REVERSE

33332

GEAR, 2ND

33332B

BEARING, NEEDLE ROLLER (FOR 2ND GEAR)

33333

GEAR, 3RD

33333A

BEARING, NEEDLE ROLLER (FOR 3RD GEAR)

33335

GEAR, 1ST

33335C

BEARING, NEEDLE ROLLER(FOR 1ST GEAR)

33336

GEAR, 5TH

33338

BUSH OR BEARING, 5TH GEAR

33348

WASHER, 1ST GEAR THRUST

33348A

PIN OR BALL (FOR 1ST GEAR THRUST WASHER)

33355

RACE, 1ST GEAR BEARING INNER

33355A

KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK

33359

RACE, 5TH GEAR BEARING INNER

33359A

BALL, 5TH GEAR BEARING INNER RACE LOCK

33361

HUB, TRANSMISSION CLUTCH, NO.1

33362

HUB, TRANSMISSION CLUTCH, NO.2

33363

SLEEVE, TRANSMISSION HUB, NO.1

33364

SLEEVE, TRANSMISSION HUB, NO.2

33367

RING, SYNCHRONIZER, NO.1

33367A

RING, SHAFT SNAP(FOR NO.2 SYNCHRONIZER RING)

33368

RING, SYNCHRONIZER, NO.2

33368A

RING, SHAFT SNAP (FOR NO.1 SYNCHRONIZER RING)

33369

RING, SYNCHRONIZER, NO.3

33369A

RING, SHAFT SNAP (FOR NO.3 SYNCHRONIZER RING)

33371A

BAND, SYNCHRONIZER BRAKE, NO.1

33376A

BLOCK, SYNCHRONIZER ANCHOR, NO.2

33377A

BLOCK, SYNCHRONIZER ANCHOR, NO.2

33379

BLOCK, SYNCHRONIZER THRUST, NO.2

33391A

BAND, SYNCHRONIZER BRAKE, NO.2

33392A

BAND, SYNCHRONIZER BRAKE, NO.3

33393

HUB, TRANSMISSION CLUTCH, NO.3

33396

BLOCK, SYNCHRONIZER ANCHOR, NO.3

33397

BLOCK, SYNCHRONIZER THRUST, NO.3

33402

GEAR SUB-ASSY, REVERSE IDLER

33411A

BEARING OR ROLLER(FOR COUNTER GEAR FRONT)

33411D

RING, COUNTER GEAR FRONT BEARING SNAP, NO.1

33411H

BEARING OR ROLLER(FOR COUNTER GEAR REAR)

33411P

BEARING, COUNTER SHAFT CENTER

33411Q

RING, COUNTER GEAR FRONT BEARING SNAP, NO.2

33411S

SPACER(FOR COUNTER GEAR FRONT BEARING OR ROLLER)

33411T

SPACER(FOR COUNTER GEAR REAR BEARING OR ROLLER)

33411U

SPACER(FOR COUNTER SHAFT GEAR)

33415

PLATE, COUNTER GEAR

33415A

SPRING, COUNTER GEAR PLATE

33421

GEAR, COUNTER

33425

GEAR, COUNTERSHAFT REVERSE

33428

GEAR, COUNTERSHAFT 5TH

33435

WASHER, COUNTER GEAR CASE SIDE THRUST

33451

SHAFT, REVERSE IDLER GEAR

33451F

NUT (FOR REVERSE IDLER GEAR SHAFT)

33455

WASHER, REVERSE IDLER GEAR THRUST

33462

WASHER, REVERSE IDLER THRUST

33481

GEAR, SPEEDOMETER DRIVE (MTM)

33481A

KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)

33481B

RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

33481D

SPACER (FOR SPEEDOMETER DRIVE GEAR)

9116151228

Крепеж

9451201200

Крепеж

TRANSMISSION GEAR (MTM) TOYOTA CELICA, 1977/08 - 1981/07, 2 литра, DOHC, POUNDS, GT TYPE, RA40, механика, МКПП, 5 скоростей
