Каталог
ЕвропаМодель
CELICAДвигатель
2 литра, DOHCКузов
POUNDSКласс
GT TYPEФрейм
RA40Трансмиссия
механика МКПП, 5 скоростейОпции
правый руль GENERAL COUNTRIES

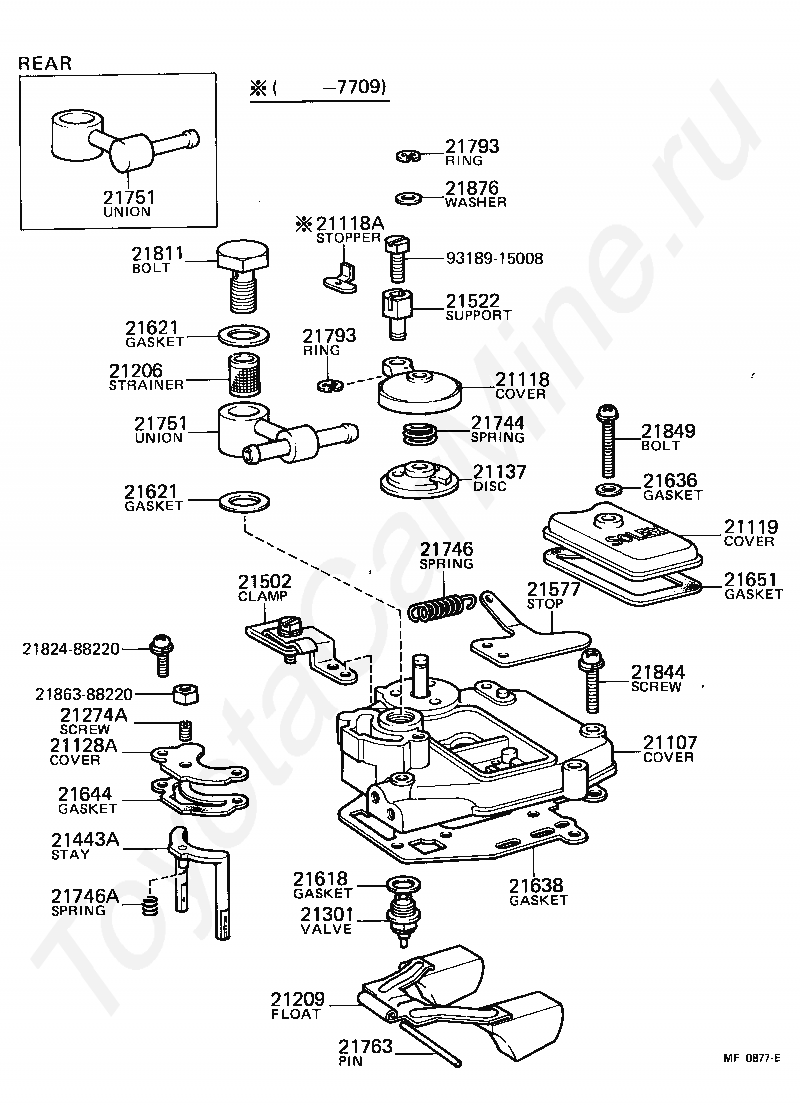

Код
Описание
21107
COVER SUB-ASSY, BOWL
21118
COVER, CARBURETOR STARTER
21118A
STOPPER, FAST IDLE
21119
COVER, JET CHAMBER
21128A
COVER, FLOAT ADJUST CHAMBER
21137
DISC, CARBURETOR STARTER
21206
STRAINER SUB-ASSY
21209
FLOAT SUB-ASSY
21274A
SCREW, FLOAT ADJUST
21301
VALVE SUB-ASSY, NEEDLE
21443A
STAY, FLOAT ADJUST
21502
CLAMP SUB-ASSY, CHOKE WIRE
21522
SUPPORT, WIRE
21577
STOP, STARTER BACK SPRING
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21636
GASKET, FLOAT CHAMBER PLUG
21638
GASKET, BOWL LEVER
21644
GASKET, FLOAT ADJUST CHAMBER COVER
21651
GASKET, JET CHAMBER COVER
21744
SPRING, CARBURETOR STARTER DISC
21746
SPRING, STARTER BACK
21746A
SPRING, FLOAT ADJUST
21751
UNION, NIPPLE
21763
PIN, FLOAT LEVER
21793
RING, CARBURETOR STARTER SNAP
21811
BOLT, UNION NIPPLE
2182488220
Крепеж
21844
SCREW, CHOKE LEVER
21849
BOLT, CHAMBER COVER WING
2186388220
Крепеж
21876
WASHER, CARBURETOR STARTER
9318915008
Крепеж

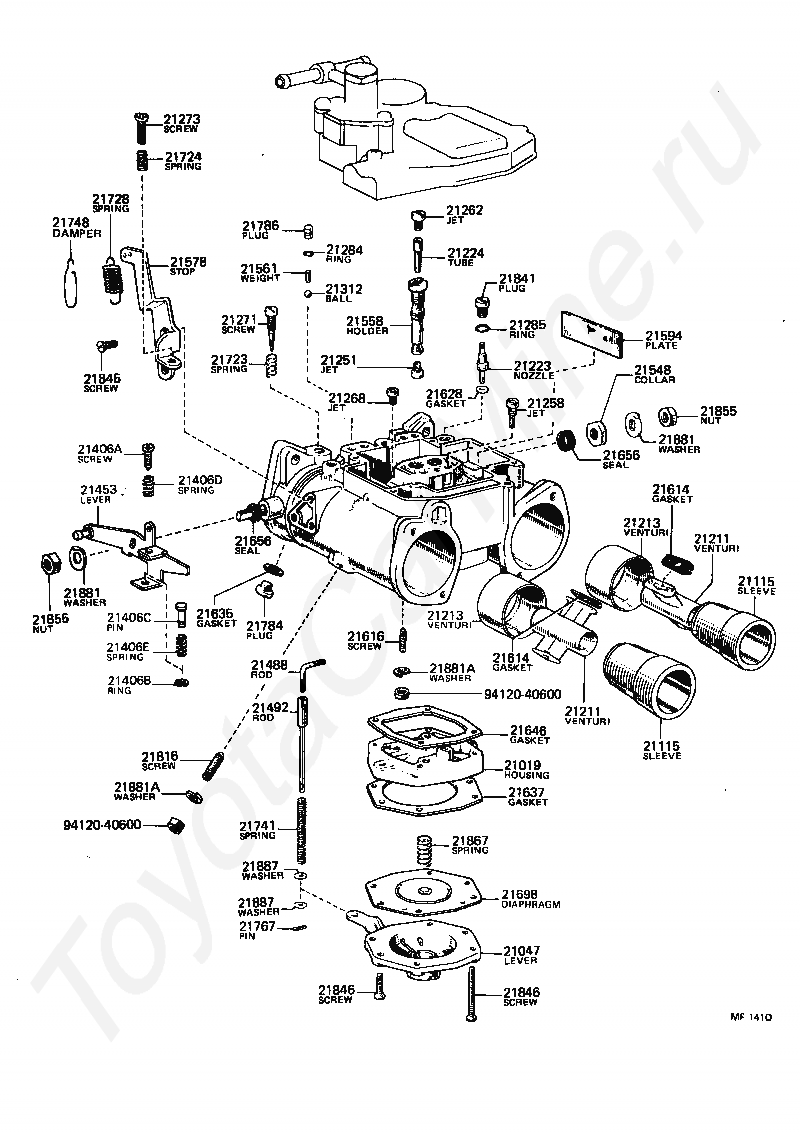

Код
Описание
21019
HOUSING SUB-ASSY, DIAPHRAGM
21047
LEVER SUB-ASSY, PUMP
21115
SLEEVE, CARBURETOR
21211
VENTURI, 1ST SMALL
21213
VENTURI, 1ST LARGE
21223
NOZZLE, PUMP
21224
TUBE, MAIN AIR BLEED
21251
JET, 1ST MAIN
21258
JET, SLOW
21262
JET, MAIN AIR BLEED
21268
JET, STARTER
21271
SCREW, IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21284
RING, O(FOR PASSAGE PLUG)
21285
RING, O(FOR PUMP NOZZLE PLUG)
21312
BALL, STEEL
21406A
SCREW, 1ST THROTTLE
21406B
RING, E(FOR 1ST THROTTLE)
21406C
PIN, 1ST THROTTLE
21406D
SPRING, COMPRESSION, NO.1(FOR 1ST THROTTLE)
21406E
SPRING, COMPRESSION, NO.2 (FOR 1ST THROTTLE)
21453
LEVER, 1ST THROTTLE
21488
ROD, DIAPHRAGM CONNECTING
21492
ROD, PUMP
21548
COLLAR, THROTTLE LEVER
21558
HOLDER, MAIN JET
21561
WEIGHT, PUMP DISCHARGE
21578
STOP, THROTTLE RETURN SPRING
21594
PLATE, FLOAT CHAMBER
21614
GASKET, VENTURI
21616
SCREW, SMALL VENTURI SET
21628
GASKET, PUMP JET SCREW
21635
GASKET, SLOW PASSAGE PLUG
21637
GASKET, PUMP CYLINDER
21646
GASKET, DIAPHRAGM HOUSING, NO.1
21656
SEAL, THROTTLE SHAFT
21698
DIAPHRAGM
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21728
SPRING, THROTTLE VALVE RETURN
21741
SPRING, PUMP
21748
DAMPER, THROTTLE RETURN SPRING
21767
PIN, DIAPHRAGM ROD
21784
PLUG, SLOW PASSAGE
21786
PLUG, PUMP PASSAGE
21816
SCREW, SMALL VENTURI SET, NO.1
21841
PLUG, PUMP NOZZLE
21845
SCREW(FOR LEVER SET)
21846
SCREW, DIAPHRAGM HOUSING SET
21855
NUT, THROTTLE SHAFT
21867
SPRING, DIAPHRAGM
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
21881A
WASHER, LOCK, NO.2
21887
WASHER(FOR CONNECTING LINK SETTING)
9412040600
Крепеж

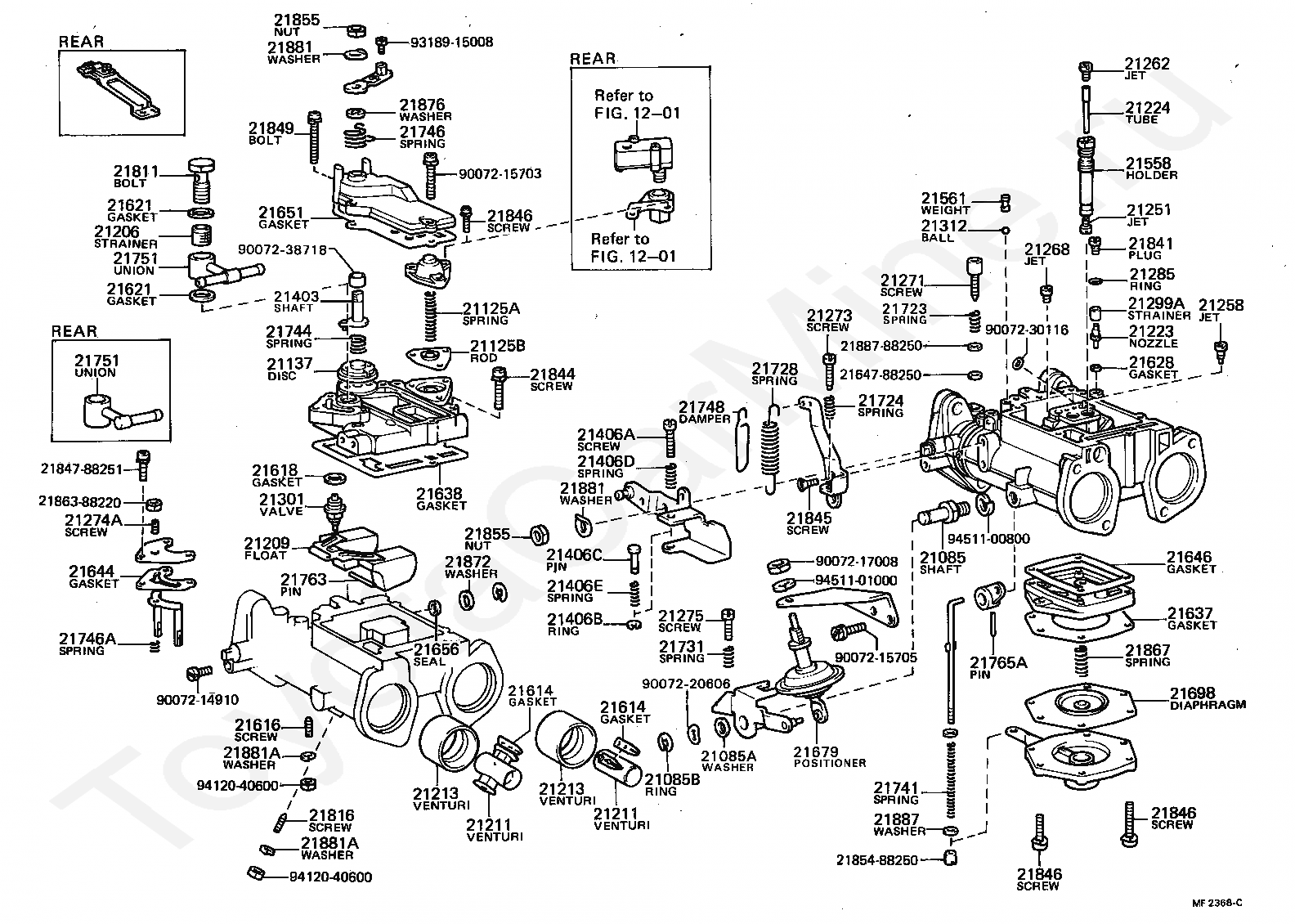

Код
Описание
1201
переход к группе запчастей
21085
SHAFT, THROTTLE OPENER LEVER
21085A
WASHER(THROTTLE OPENER LEVER SHAFT)
21085B
RING, E(THROTTLE OPENER LEVER SHAFT)
21125A
SPRING(FOR DIAPHRAGM COVER)
21125B
ROD(FOR DIAPHRAGM COVER)
21137
DISC, CARBURETOR STARTER
21206
STRAINER SUB-ASSY
21209
FLOAT SUB-ASSY
21211
VENTURI, 1ST SMALL
21213
VENTURI, 1ST LARGE
21223
NOZZLE, PUMP
21224
TUBE, MAIN AIR BLEED
21251
JET, 1ST MAIN
21258
JET, SLOW
21262
JET, MAIN AIR BLEED
21268
JET, STARTER
21271
SCREW, IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21274A
SCREW, FLOAT ADJUST
21275
SCREW, ADJUSTING
21285
RING, O(FOR PUMP NOZZLE PLUG)
21299A
STRAINER, PUMP
21301
VALVE SUB-ASSY, NEEDLE
21312
BALL, STEEL
21403
SHAFT SUB-ASSY, STARTER
21406A
SCREW, 1ST THROTTLE
21406B
RING, E(FOR 1ST THROTTLE)
21406C
PIN, 1ST THROTTLE
21406D
SPRING, COMPRESSION, NO.1(FOR 1ST THROTTLE)
21406E
SPRING, COMPRESSION, NO.2 (FOR 1ST THROTTLE)
21558
HOLDER, MAIN JET
21561
WEIGHT, PUMP DISCHARGE
21614
GASKET, VENTURI
21616
SCREW, SMALL VENTURI SET
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21628
GASKET, PUMP JET SCREW
21637
GASKET, PUMP CYLINDER
21638
GASKET, BOWL LEVER
21644
GASKET, FLOAT ADJUST CHAMBER COVER
21646
GASKET, DIAPHRAGM HOUSING, NO.1
2164788250
Крепеж
21651
GASKET, JET CHAMBER COVER
21656
SEAL, THROTTLE SHAFT
21679
POSITIONER
21698
DIAPHRAGM
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21728
SPRING, THROTTLE VALVE RETURN
21731
SPRING, DASH POT OR POSITIONER ADJUSTING
21741
SPRING, PUMP
21744
SPRING, CARBURETOR STARTER DISC
21746
SPRING, STARTER BACK
21746A
SPRING, FLOAT ADJUST
21748
DAMPER, THROTTLE RETURN SPRING
21751
UNION, NIPPLE
21763
PIN, FLOAT LEVER
21765A
PIN, THROTTLE SHAFT
21811
BOLT, UNION NIPPLE
21816
SCREW, SMALL VENTURI SET, NO.1
21841
PLUG, PUMP NOZZLE
21844
SCREW, CHOKE LEVER
21845
SCREW(FOR LEVER SET)
21846
SCREW, DIAPHRAGM HOUSING SET
2184788251
Крепеж
21849
BOLT, CHAMBER COVER WING
2185488250
Крепеж
21855
NUT, THROTTLE SHAFT
2186388220
Крепеж
21867
SPRING, DIAPHRAGM
21872
WASHER, THROTTLE SHAFT
21876
WASHER, CARBURETOR STARTER
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
21881A
WASHER, LOCK, NO.2
21887
WASHER(FOR CONNECTING LINK SETTING)
2188788250
Крепеж
9007214910
Крепеж
9007215703
Крепеж
9007215705
Крепеж
9007217008
Крепеж
9007220606
Крепеж
9007230116
Крепеж
9007238718
Крепеж
9318915008
Крепеж
9412040600
Крепеж
9451100800
Крепеж
9451101000
Крепеж
