Рулевая рейка и наконечники TOYOTA CARINA E (UKP), 1992/12 - 1997/10, 2 литра, 16 клапанов, DOHC, EFI, седан, GL SPECIFICATION, ST191, автомат

Каталог

Европа

Модель

CARINA E (UKP)

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

GL SPECIFICATION

Фрейм

ST191

Трансмиссия

автомат

Опции

EUROPE PRODUCT левый руль электронная система впрыска топлива

Код

Описание

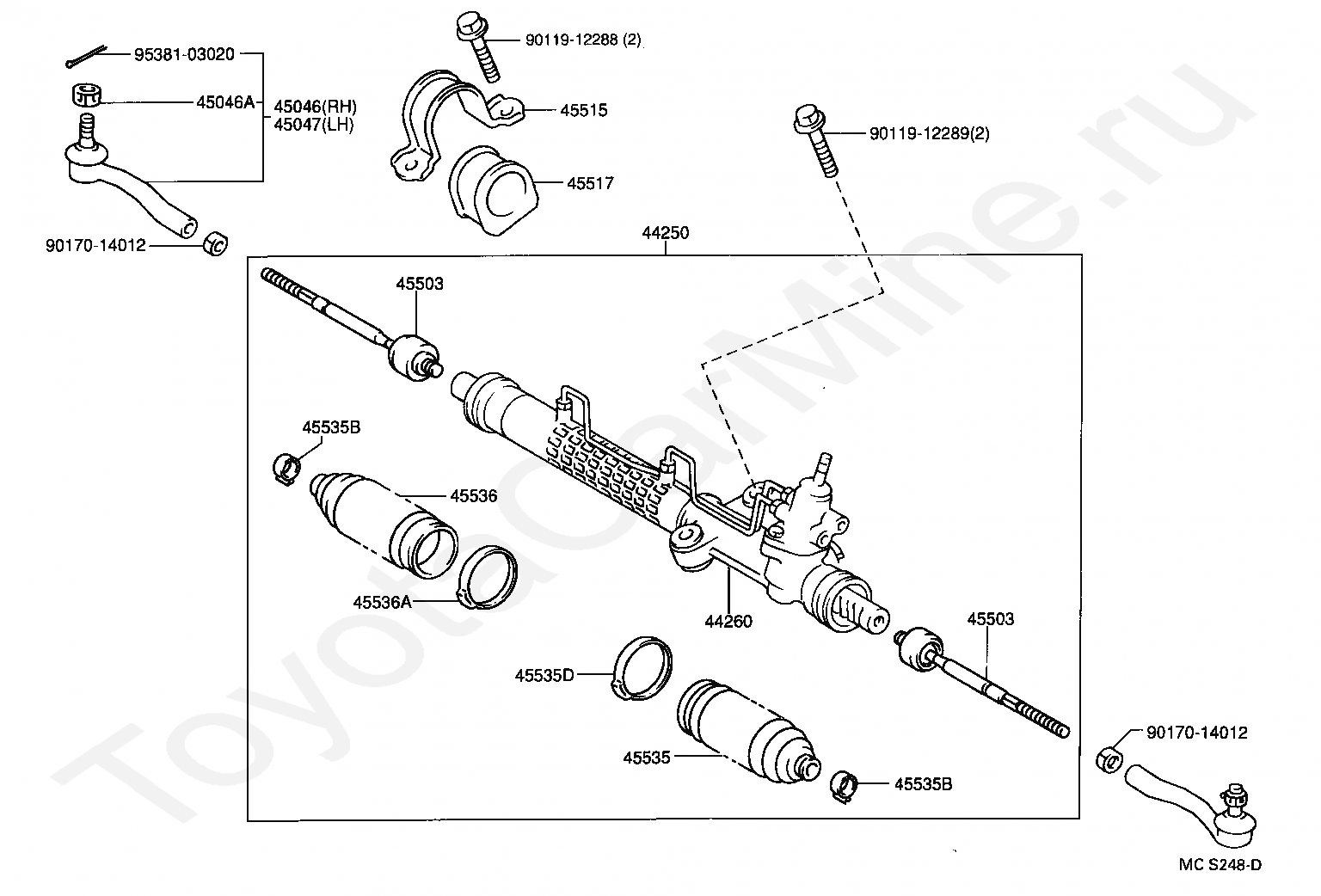

04445A

GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

04455

GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

44250

GEAR ASSY, POWER STEERING(FOR RACK & PINION)

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45515

BRACKET, STEERING RACK HOUSING, NO.2

45517

GROMMET, STEERING RACK HOUSING, NO.2

9011912288

Крепеж

9011912289

Крепеж

9017015001

Крепеж

9538103020

Крепеж

Код

Описание

04445A

GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

04455

GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

44250

GEAR ASSY, POWER STEERING(FOR RACK & PINION)

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45515

BRACKET, STEERING RACK HOUSING, NO.2

45517

GROMMET, STEERING RACK HOUSING, NO.2

9011912288

Крепеж

9011912289

Крепеж

9017015001

Крепеж

9538103020

Крепеж

Код

Описание

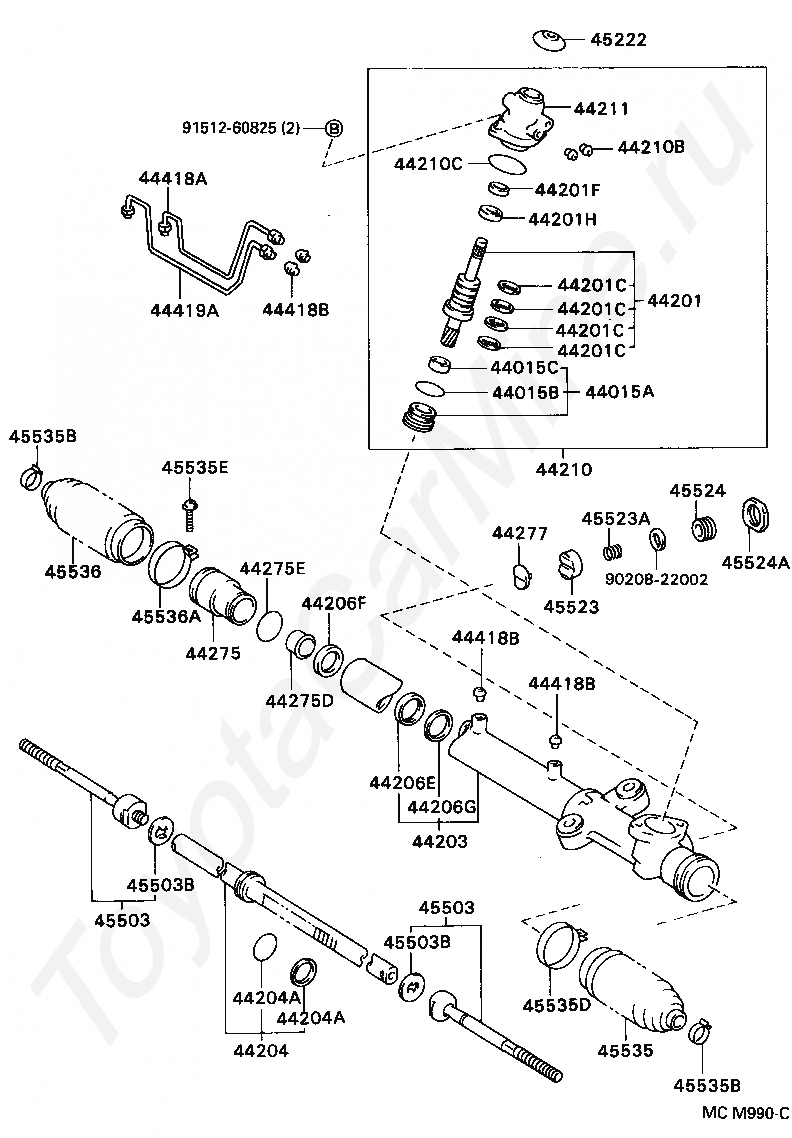

44015A

NUT SUB-ASSY, BEARING GUIDE

44015B

RING, O(FOR BEARING GUIDE NUT)

44015C

SEAL, OIL(FOR BEARING GUIDE NUT)

44201

VALVE SUB-ASSY, POWER STEERING CONTROL

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44201F

SEAL, OIL(FOR POWER STEERING CONTROL VALVE)

44201H

BEARING(FOR POWER STEERING CONTROL VALVE UPPER)

44203

HOUSING SUB-ASSY, POWER STEERING RACK

44204

RACK SUB-ASSY, POWER STEERING

44204A

RING(FOR RACK STEERING PISTON)

44206E

SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE)

44206F

SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE)

44206G

SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE)

44210

VALVE ASSY, POWER STEERING CONTROL

44210B

SEAT, UNION(FOR POWER STEERING CONTROL VALVE)

44210C

RING, O(FOR POWER STEERING CONTROL VALVE)

44211

HOUSING, CONTROL VALVE

44275

STOPPER, CYLINDER END

44275D

BUSH(FOR CYLINDER END STOPPER)

44275E

RING, O(FOR RACK END GUIDE)

44277

SEAT, RACK GUIDE

44418A

TUBE, STEERING RIGHT TURN PRESSURE

44418B

SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)

44419A

TUBE, STEERING LEFT TURN PRESSURE

45222

COVER, STEERING GEAR DUST

45503

END SUB-ASSY, STEERING RACK

45503B

WASHER, CLAW(FOR STEERING RACK END)

45523

GUIDE, RACK(FOR STEERING GEAR)

45523A

SPRING(FOR STEERING GEAR RACK GUIDE)

45524

CAP, STEERING RACK GUIDE SPRING

45524A

NUT(FOR STEERING RACK GUIDE SPRING CAP)

45535

BOOT, STEERING RACK, NO.1

45535B

CLIP(FOR STEERING RACK BOOT)

45535D

CLAMP(FOR STEERING RACK BOOT NO.1)

45535E

SCREW(FOR STEERING RACK BOOT CLAMP)

45536

BOOT, STEERING RACK, NO.2

45536A

CLAMP(FOR STEERING RACK BOOT NO.2)

9020822002

Крепеж

9151260825

Крепеж

Код

Описание

44250

GEAR ASSY, POWER STEERING(FOR RACK & PINION)

44260

CYLINDER ASSY, POWER STEERING POWER

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45503

END SUB-ASSY, STEERING RACK

45515

BRACKET, STEERING RACK HOUSING, NO.2

45517

GROMMET, STEERING RACK HOUSING, NO.2

45535

BOOT, STEERING RACK, NO.1

45535B

CLIP(FOR STEERING RACK BOOT)

45535D

CLAMP(FOR STEERING RACK BOOT NO.1)

45536

BOOT, STEERING RACK, NO.2

45536A

CLAMP(FOR STEERING RACK BOOT NO.2)

9011912288

Крепеж

9011912289

Крепеж

9017014012

Крепеж

9538103020

Крепеж

Код

Описание

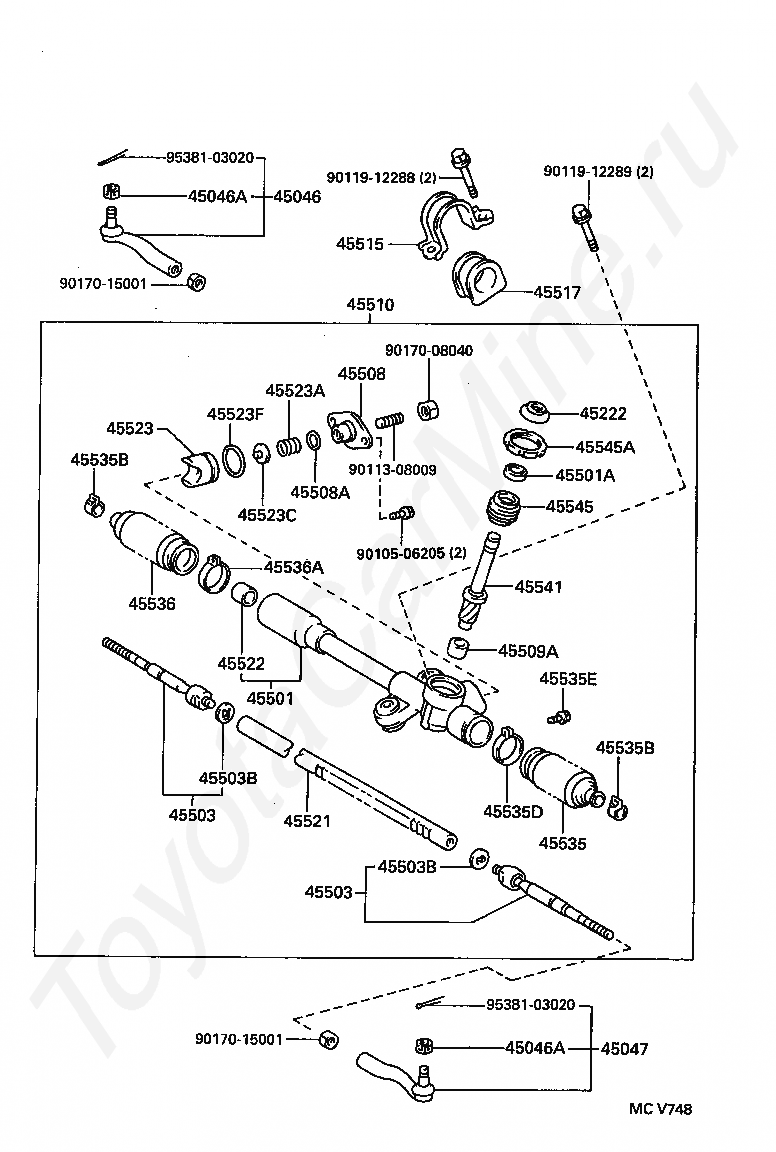

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45222

COVER, STEERING GEAR DUST

45501

HOUSING SUB-ASSY, STEERING RACK

45501A

SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

45503

END SUB-ASSY, STEERING RACK

45503B

WASHER, CLAW(FOR STEERING RACK END)

45508

COVER SUB-ASSY, STEERING RACK GUIDE SPRING

45508A

RING, O(FOR STEERING RACK GUIDE SPRING COVER)

45509A

BEARING(FOR STEERING PINION)

45510

GEAR ASSY, STEERING

45515

BRACKET, STEERING RACK HOUSING, NO.2

45517

GROMMET, STEERING RACK HOUSING, NO.2

45521

RACK, STEERING

45522

BUSH, STEERING RACK

45523

GUIDE, RACK(FOR STEERING GEAR)

45523A

SPRING(FOR STEERING GEAR RACK GUIDE)

45523C

SPACER(FOR RACK GUIDE)

45523F

RING, O(FOR STEERING GEAR GUIDE)

45535

BOOT, STEERING RACK, NO.1

45535B

CLIP(FOR STEERING RACK BOOT)

45535D

CLAMP(FOR STEERING RACK BOOT NO.1)

45535E

SCREW(FOR STEERING RACK BOOT CLAMP)

45536

BOOT, STEERING RACK, NO.2

45536A

CLAMP(FOR STEERING RACK BOOT NO.2)

45541

PINION, STEERING

45545

SCREW, PINION BEARING ADJUSTING

45545A

NUT(FOR PINION BEARING ADJUSTING SCREW)

9010506205

Крепеж

9011308009

Крепеж

9011912288

Крепеж

9011912289

Крепеж

9017008040

Крепеж

9017015001

Крепеж

9538103020

Крепеж

Рулевая рейка и наконечники TOYOTA CARINA E (UKP), 1992/12 - 1997/10, 2 литра, 16 клапанов, DOHC, EFI, седан, GL SPECIFICATION, ST191, автомат
