Передние двери TOYOTA CARINA ED, 1993/09 - 1995/08, 2 литра, 16 клапанов, DOHC, EFI, G-LIMITED TYPE, ST202, механика

Каталог

Япония

Модель

CARINA ED

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Класс

G-LIMITED TYPE

Фрейм

ST202

Трансмиссия

механика

Опции

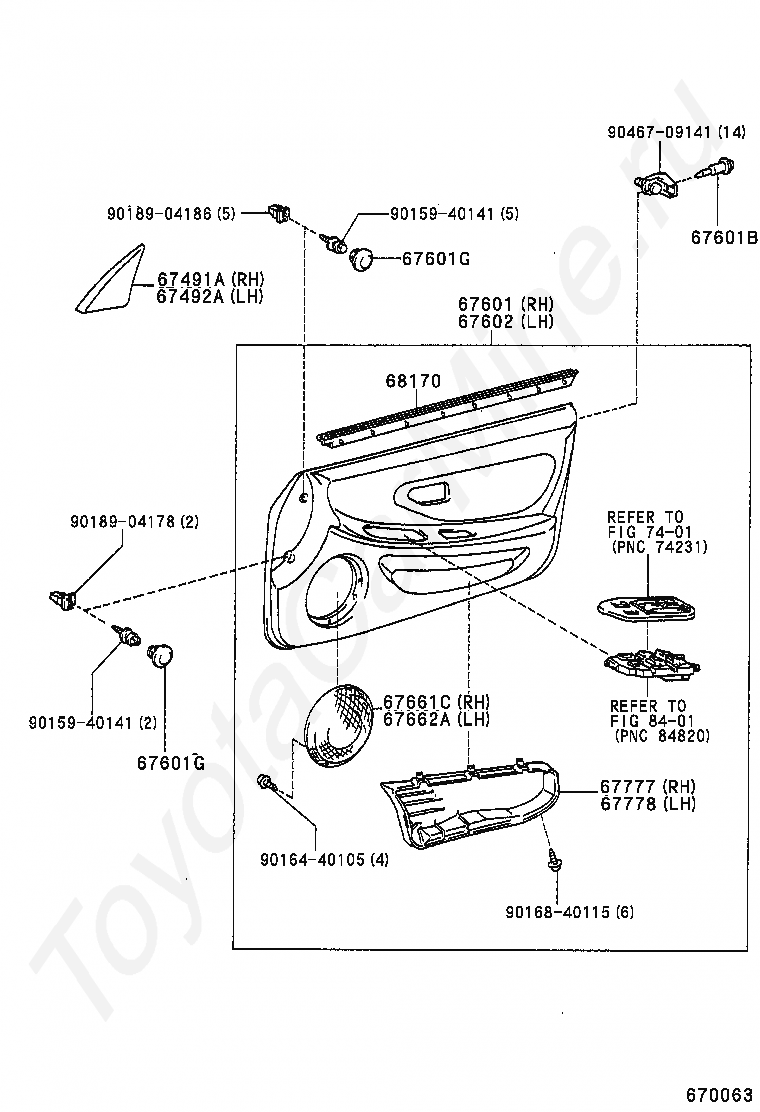

Код

Описание

67491A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

67492A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

67601

BOARD SUB-ASSY, FRONT DOOR TRIM, RH

67601B

CLIP(FOR FRONT DOOR TRIM BOARD)

67601G

PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

67602

BOARD SUB-ASSY, FRONT DOOR TRIM, LH

67661C

BASE, DOOR SPEAKER GRILLE, RH

67662A

BASE, DOOR SPEAKER GRILLE, LH

67777

POCKET, FRONT DOOR TRIM, RH

67778

POCKET, FRONT DOOR TRIM, LH

68170

WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

7401

переход к группе запчастей

8401

переход к группе запчастей

9015940141

Крепеж

9016440105

Крепеж

9016840115

Крепеж

9018904178

Крепеж

9018904186

Крепеж

9046709141

Крепеж

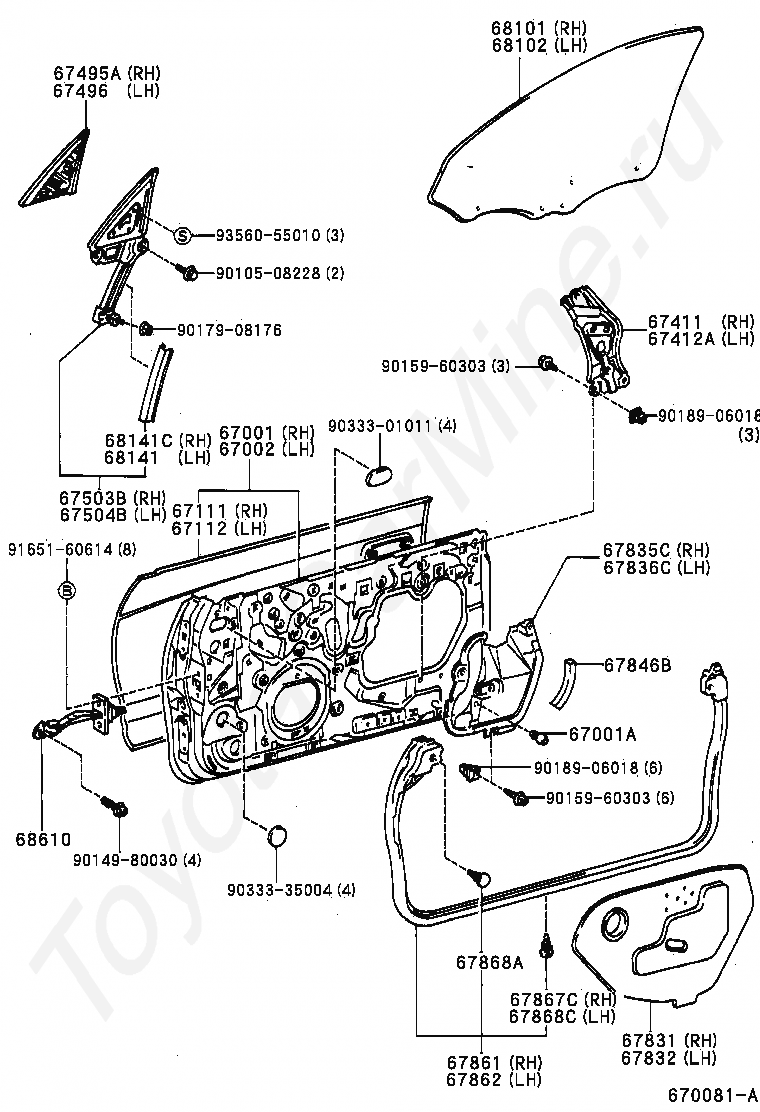

Код

Описание

67001

PANEL SUB-ASSY, FRONT DOOR, RH

67001A

CUSHION, FRONT DOOR PANEL

67002

PANEL SUB-ASSY, FRONT DOOR, LH

67111

PANEL, FRONT DOOR, OUTER RH

67112

PANEL, FRONT DOOR, OUTER LH

67411

FRAME, FRONT DOOR WINDOW, FRONT UPPER RH

67412A

FRAME, FRONT DOOR WINDOW, FRONT UPPER LH

67495A

COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

67496

CHANNEL, CANVAS DOOR WEATHERSTRIP UNDER HOLD

67503B

BRACKET SUB-ASSY, FRONT DOOR MIRROR, RH

67504B

BRACKET SUB-ASSY, FRONT DOOR MIRROR, LH

67831

COVER, FRONT DOOR SERVICE HOLE, RH

67832

COVER, FRONT DOOR SERVICE HOLE, LH

67835C

COVER, FRONT DOOR SERVICE HOLE, NO.3 RH

67836C

COVER, FRONT DOOR SERVICE HOLE, NO.3 LH

67846B

SUB-SHEET, FRONT DOOR SERVICE HOLE

67861

WEATHERSTRIP, FRONT DOOR, RH

67862

WEATHERSTRIP, FRONT DOOR, LH

67867C

RETAINER, FRONT DOOR WEATHERSTRIP, RH

67868A

CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

67868C

RETAINER, FRONT DOOR WEATHERSTRIP, LH

68101

GLASS SUB-ASSY, FRONT DOOR, RH

68102

GLASS SUB-ASSY, FRONT DOOR, LH

68141

RUN, FRONT DOOR GLASS

68141C

RUN, FRONT DOOR GLASS, RH

68610

CHECK ASSY, FRONT DOOR

9010508228

Крепеж

9014980030

Крепеж

9014980033

Крепеж

9015960303

Крепеж

9017908176

Крепеж

9018906018

Крепеж

9033301011

Крепеж

9033335004

Крепеж

9165160614

Крепеж

9356055010

Крепеж

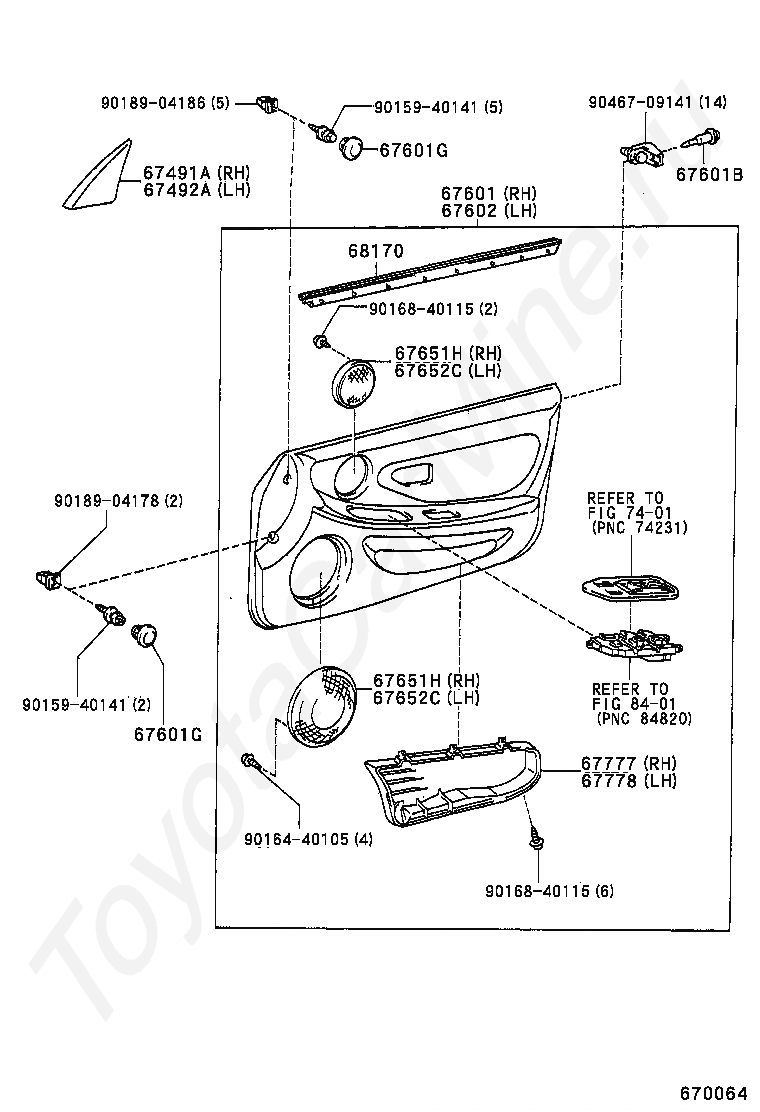

Код

Описание

67491A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

67492A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

67601

BOARD SUB-ASSY, FRONT DOOR TRIM, RH

67601B

CLIP(FOR FRONT DOOR TRIM BOARD)

67601G

PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

67602

BOARD SUB-ASSY, FRONT DOOR TRIM, LH

67651H

GRILLE, SPEAKER DOOR, RH

67652C

GRILLE, SPEAKER DOOR, LH

67777

POCKET, FRONT DOOR TRIM, RH

67778

POCKET, FRONT DOOR TRIM, LH

68170

WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

7401

переход к группе запчастей

8401

переход к группе запчастей

9015940141

Крепеж

9016440105

Крепеж

9016840115

Крепеж

9018904178

Крепеж

9018904186

Крепеж

9046709141

Крепеж

Код

Описание

67491A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

67492A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

67601

BOARD SUB-ASSY, FRONT DOOR TRIM, RH

67601B

CLIP(FOR FRONT DOOR TRIM BOARD)

67601G

PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

67602

BOARD SUB-ASSY, FRONT DOOR TRIM, LH

67661C

BASE, DOOR SPEAKER GRILLE, RH

67662A

BASE, DOOR SPEAKER GRILLE, LH

67777

POCKET, FRONT DOOR TRIM, RH

67778

POCKET, FRONT DOOR TRIM, LH

68170

WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

7401

переход к группе запчастей

8401

переход к группе запчастей

9015940141

Крепеж

9016440105

Крепеж

9016840115

Крепеж

9018904178

Крепеж

9018904186

Крепеж

9046709141

Крепеж

Код

Описание

67001

PANEL SUB-ASSY, FRONT DOOR, RH

67001A

CUSHION, FRONT DOOR PANEL

67002

PANEL SUB-ASSY, FRONT DOOR, LH

67111

PANEL, FRONT DOOR, OUTER RH

67112

PANEL, FRONT DOOR, OUTER LH

67411

FRAME, FRONT DOOR WINDOW, FRONT UPPER RH

67412A

FRAME, FRONT DOOR WINDOW, FRONT UPPER LH

67495A

COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

67496

CHANNEL, CANVAS DOOR WEATHERSTRIP UNDER HOLD

67503B

BRACKET SUB-ASSY, FRONT DOOR MIRROR, RH

67504B

BRACKET SUB-ASSY, FRONT DOOR MIRROR, LH

67831

COVER, FRONT DOOR SERVICE HOLE, RH

67832

COVER, FRONT DOOR SERVICE HOLE, LH

67835C

COVER, FRONT DOOR SERVICE HOLE, NO.3 RH

67836C

COVER, FRONT DOOR SERVICE HOLE, NO.3 LH

67846B

SUB-SHEET, FRONT DOOR SERVICE HOLE

67861

WEATHERSTRIP, FRONT DOOR, RH

67862

WEATHERSTRIP, FRONT DOOR, LH

67867C

RETAINER, FRONT DOOR WEATHERSTRIP, RH

67868A

CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

67868C

RETAINER, FRONT DOOR WEATHERSTRIP, LH

68101

GLASS SUB-ASSY, FRONT DOOR, RH

68102

GLASS SUB-ASSY, FRONT DOOR, LH

68141

RUN, FRONT DOOR GLASS

68141C

RUN, FRONT DOOR GLASS, RH

68610

CHECK ASSY, FRONT DOOR

9010508228

Крепеж

9014980030

Крепеж

9014980033

Крепеж

9015960303

Крепеж

9017908176

Крепеж

9018906018

Крепеж

9033301011

Крепеж

9033335004

Крепеж

9165160614

Крепеж

9356055010

Крепеж

Код

Описание

67491A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

67492A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

67601

BOARD SUB-ASSY, FRONT DOOR TRIM, RH

67601B

CLIP(FOR FRONT DOOR TRIM BOARD)

67601G

PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

67602

BOARD SUB-ASSY, FRONT DOOR TRIM, LH

67651H

GRILLE, SPEAKER DOOR, RH

67652C

GRILLE, SPEAKER DOOR, LH

67777

POCKET, FRONT DOOR TRIM, RH

67778

POCKET, FRONT DOOR TRIM, LH

68170

WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

7401

переход к группе запчастей

8401

переход к группе запчастей

9015940141

Крепеж

9016440105

Крепеж

9016840115

Крепеж

9018904178

Крепеж

9018904186

Крепеж

9046709141

Крепеж

Передние двери TOYOTA CARINA ED, 1993/09 - 1995/08, 2 литра, 16 клапанов, DOHC, EFI, G-LIMITED TYPE, ST202, механика
