Раздаточная коробка и дифференциал TOYOTA CARINA ED, 1993/09 - 1995/08, 2 литра, 16 клапанов, DOHC, EFI, G-LIMITED TYPE, ST202, механика

Каталог

Япония

Модель

CARINA ED

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Класс

G-LIMITED TYPE

Фрейм

ST202

Трансмиссия

механика

Опции

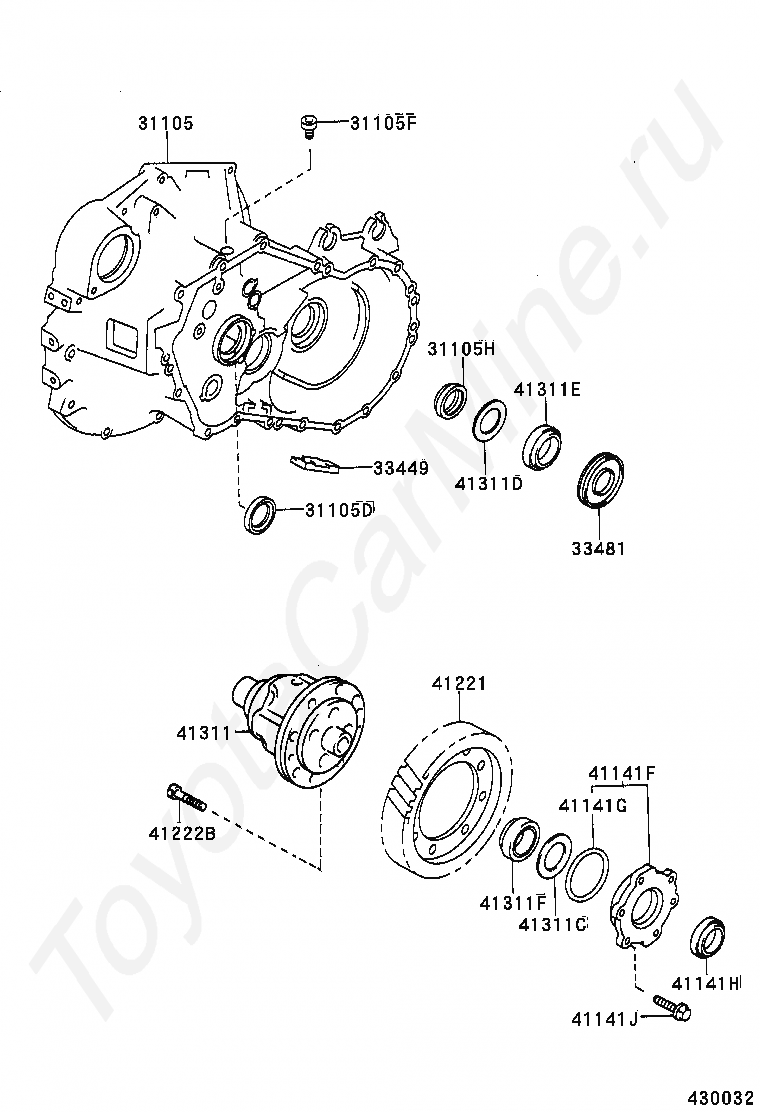

Код

Описание

31105

CASE SUB-ASSY, TRANSAXLE(MTM)

31105D

SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

31105F

PLUG(FOR TRANSAXLE CASE)

31105H

SEAL, OIL, NO.2(FOR TRANSAXLE CASE)

33449

MAGNET, TRANSMISSION

33481

GEAR, SPEEDOMETER DRIVE (MTM)

41141F

RETAINER, FRONT DIFFERENTIAL SIDE BEARING

41141G

RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

41141H

SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)

41141J

BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

41221

GEAR, FRONT DIFFERENTIAL RING

41222B

BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

41222F

PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

41311

CASE, FRONT DIFFERENTIAL

41311C

SHIM (FOR FRONT DIFFERENTIAL CASE REAR)

41311D

SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)

41311E

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

41311F

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

41331F

GEAR, FRONT DIFFERENTIAL SIDE

41341F

PINION, FRONT DIFFERENTIAL

41342A

PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

41342F

SHAFT, FRONT DIFFERENTIAL PINION, NO.1

41351F

WASHER, FRONT DIFFERENTIAL PINION THRUST

41361F

WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

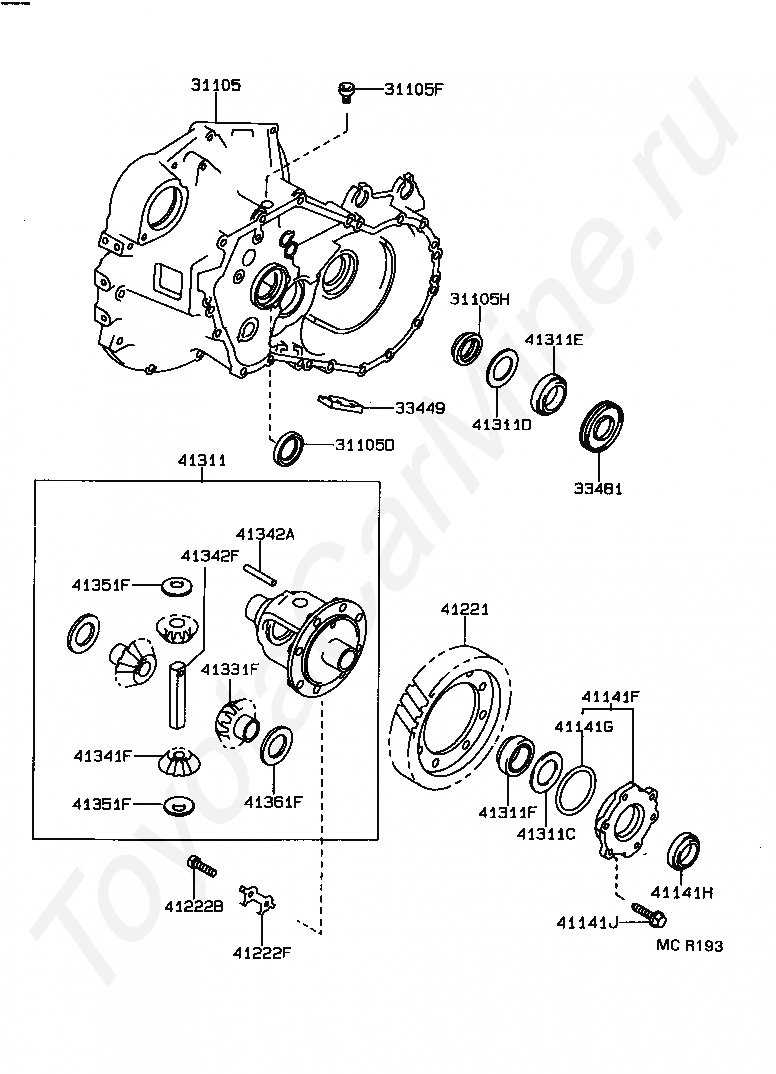

Код

Описание

31105

CASE SUB-ASSY, TRANSAXLE(MTM)

31105D

SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

31105F

PLUG(FOR TRANSAXLE CASE)

31105H

SEAL, OIL, NO.2(FOR TRANSAXLE CASE)

33449

MAGNET, TRANSMISSION

33481

GEAR, SPEEDOMETER DRIVE (MTM)

41141F

RETAINER, FRONT DIFFERENTIAL SIDE BEARING

41141G

RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

41141H

SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)

41141J

BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

41221

GEAR, FRONT DIFFERENTIAL RING

41222B

BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

41311

CASE, FRONT DIFFERENTIAL

41311C

SHIM (FOR FRONT DIFFERENTIAL CASE REAR)

41311D

SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)

41311E

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

41311F

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

Код

Описание

31105

CASE SUB-ASSY, TRANSAXLE(MTM)

31105D

SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

31105F

PLUG(FOR TRANSAXLE CASE)

31105H

SEAL, OIL, NO.2(FOR TRANSAXLE CASE)

33449

MAGNET, TRANSMISSION

33481

GEAR, SPEEDOMETER DRIVE (MTM)

41141F

RETAINER, FRONT DIFFERENTIAL SIDE BEARING

41141G

RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

41141H

SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)

41141J

BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

41221

GEAR, FRONT DIFFERENTIAL RING

41222B

BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

41222F

PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

41311

CASE, FRONT DIFFERENTIAL

41311C

SHIM (FOR FRONT DIFFERENTIAL CASE REAR)

41311D

SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)

41311E

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

41311F

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

41331F

GEAR, FRONT DIFFERENTIAL SIDE

41341F

PINION, FRONT DIFFERENTIAL

41342A

PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

41342F

SHAFT, FRONT DIFFERENTIAL PINION, NO.1

41351F

WASHER, FRONT DIFFERENTIAL PINION THRUST

41361F

WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

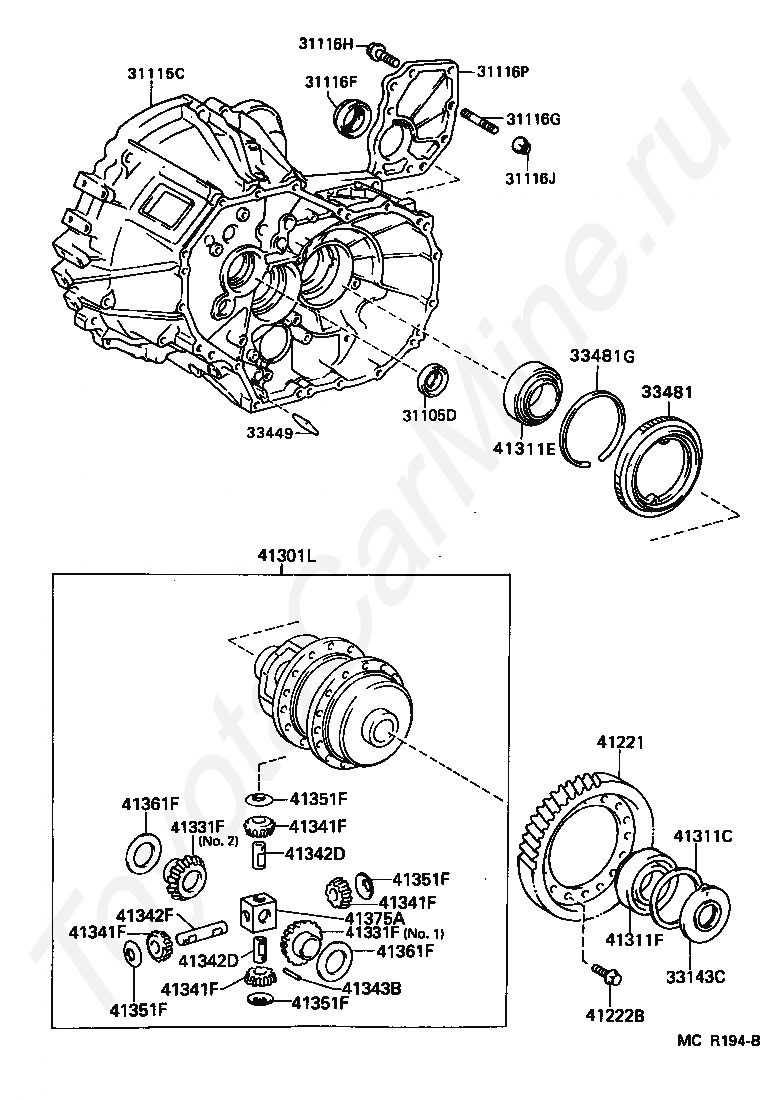

Код

Описание

31105D

SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

31115C

CASE, FRONT TRANSAXLE(MTM)

31116F

SEAL, OIL(FOR FRONT TRANSAXLE CASE COVER)

31116G

BOLT, STUD(FOR FRONT TRANSAXLE CASE COVER)

31116H

BOLT(FOR FRONT TRANSAXLE CASE COVER)

31116J

NUT(FOR TRANSAXLE CASE COVER)

31116P

COVER, TRANSAXLE CASE

33143C

BAFFLE, FRONT DIFFERENTIAL OIL

33449

MAGNET, TRANSMISSION

33481

GEAR, SPEEDOMETER DRIVE (MTM)

33481G

RING, SHAFT SNAP (FOR ATM SPEEDOMETER DRIVE GEAR)

41221

GEAR, FRONT DIFFERENTIAL RING

41222B

BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

41301L

CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1

41311C

SHIM (FOR FRONT DIFFERENTIAL CASE REAR)

41311E

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

41311F

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

41331F

GEAR, FRONT DIFFERENTIAL SIDE

41341F

PINION, FRONT DIFFERENTIAL

41342D

SHAFT, CENTER DIFFERENTIAL PINION

41342F

SHAFT, FRONT DIFFERENTIAL PINION, NO.1

41343B

PIN, FRONT DIFFERENTIAL PINION SHAFT

41351F

WASHER, FRONT DIFFERENTIAL PINION THRUST

41361F

WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

41375A

HOLDER, FRONT DIFFERENTIAL PINION SHAFT

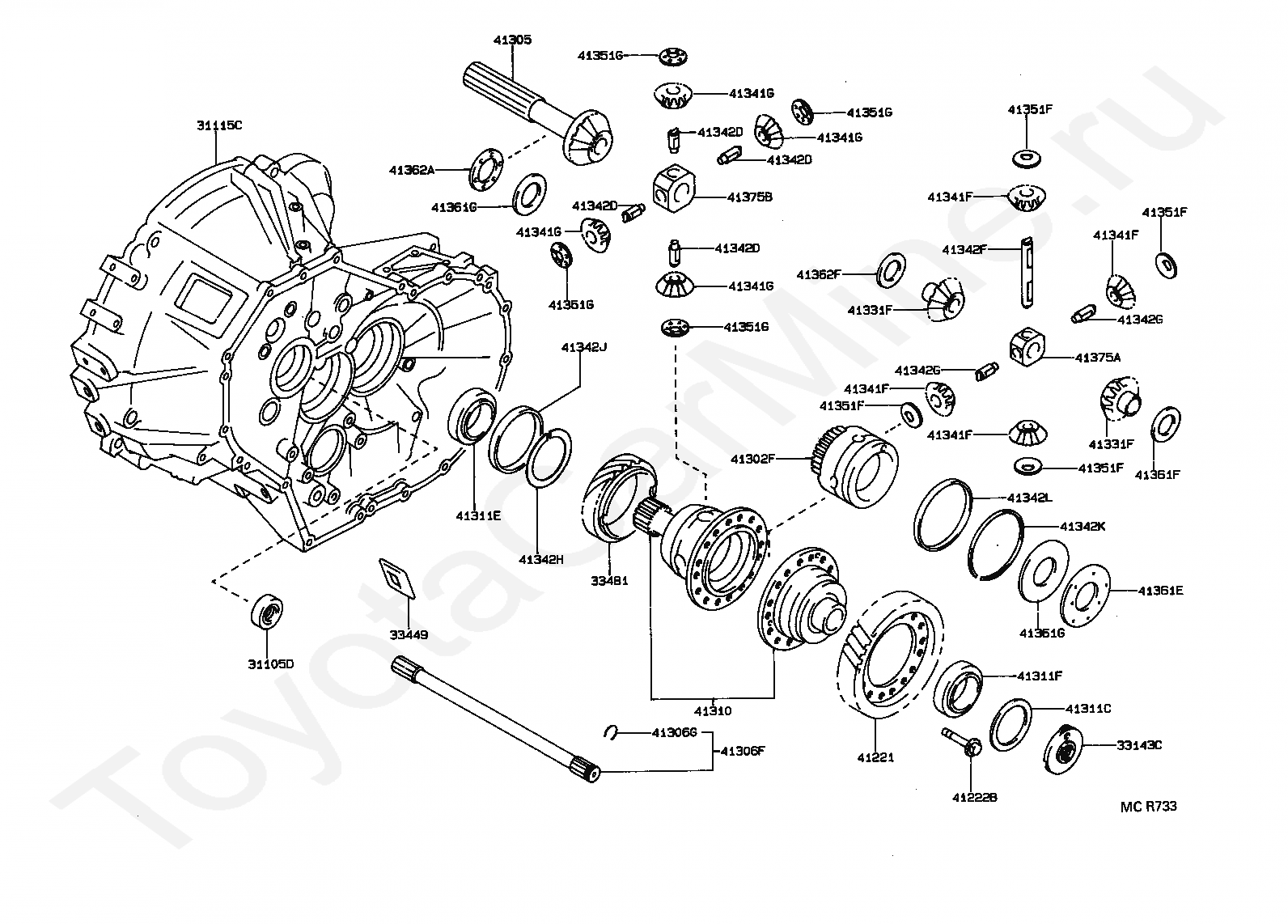

Код

Описание

31105D

SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

31115C

CASE, FRONT TRANSAXLE(MTM)

33143C

BAFFLE, FRONT DIFFERENTIAL OIL

33449

MAGNET, TRANSMISSION

33481

GEAR, SPEEDOMETER DRIVE (MTM)

41221

GEAR, FRONT DIFFERENTIAL RING

41222B

BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

41302F

CASE SUB-ASSY, FRONT DIFFERENTIAL

41305

GEAR SUB-ASSY, DIFFERENTIAL SIDE

41306F

SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER

41306G

RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR INTER SHAFT)

41310

CASE ASSY, DIFFERENTIAL

41311C

SHIM (FOR FRONT DIFFERENTIAL CASE REAR)

41311E

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

41311F

BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

41331F

GEAR, FRONT DIFFERENTIAL SIDE

41341F

PINION, FRONT DIFFERENTIAL

41341G

PINION, CENTER DIFFERENTIAL

41342D

SHAFT, CENTER DIFFERENTIAL PINION

41342F

SHAFT, FRONT DIFFERENTIAL PINION, NO.1

41342G

SHAFT, FRONT DIFFERENTIAL PINION, NO.2

41342H

RING, SHAFT SNAP (FOR CENTER DIFFERENTIAL PINION SHAFT)

41342J

SPACER (FOR CENTER DIFFERENTIAL PINION SHAFT)

41342K

RING, SHAFT SNAP (FOR FRONT DIFFERENTIAL PINION SHAFT)

41342L

SPACER (FOR DIFFERENTIAL PINION SHAFT)

41351F

WASHER, FRONT DIFFERENTIAL PINION THRUST

41351G

WASHER, CENTER DIFFERENTIAL PINION THRUST

41361E

WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1

41361F

WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

41361G

WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)

41362A

WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.2

41362F

WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.2

41375A

HOLDER, FRONT DIFFERENTIAL PINION SHAFT

41375B

HOLDER, CENTER DIFFERENTIAL PINION SHAFT

Раздаточная коробка и дифференциал TOYOTA CARINA ED, 1993/09 - 1995/08, 2 литра, 16 клапанов, DOHC, EFI, G-LIMITED TYPE, ST202, механика
