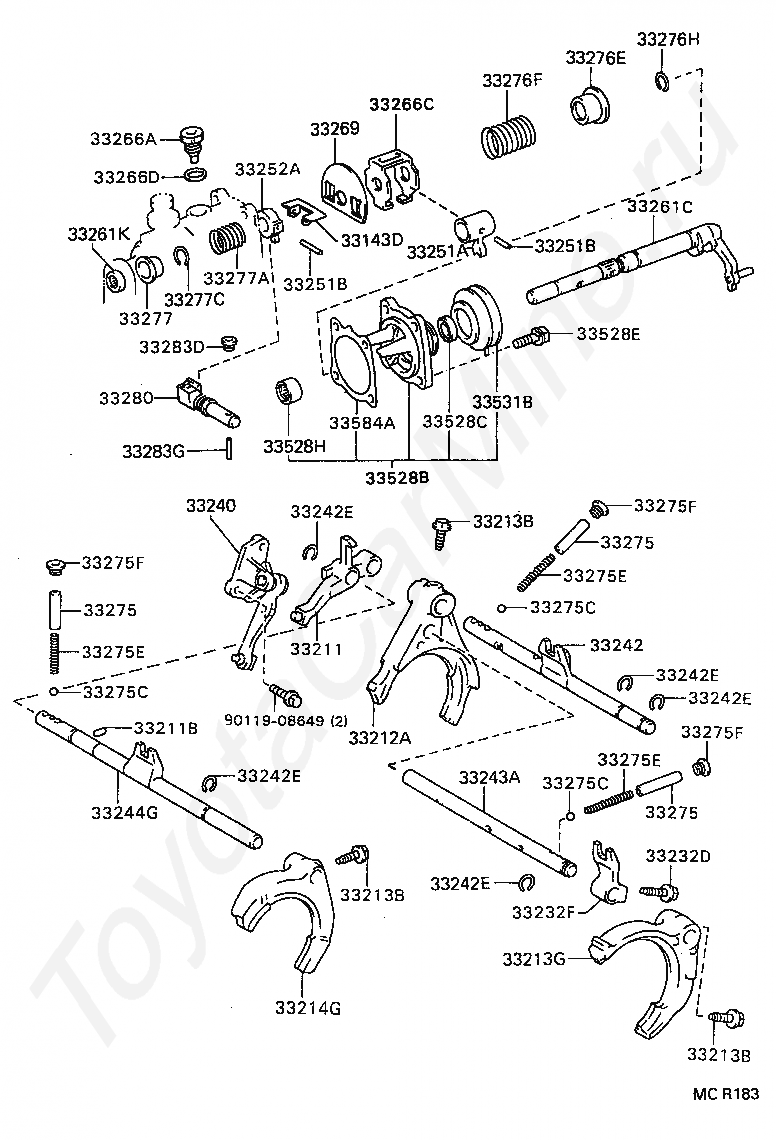

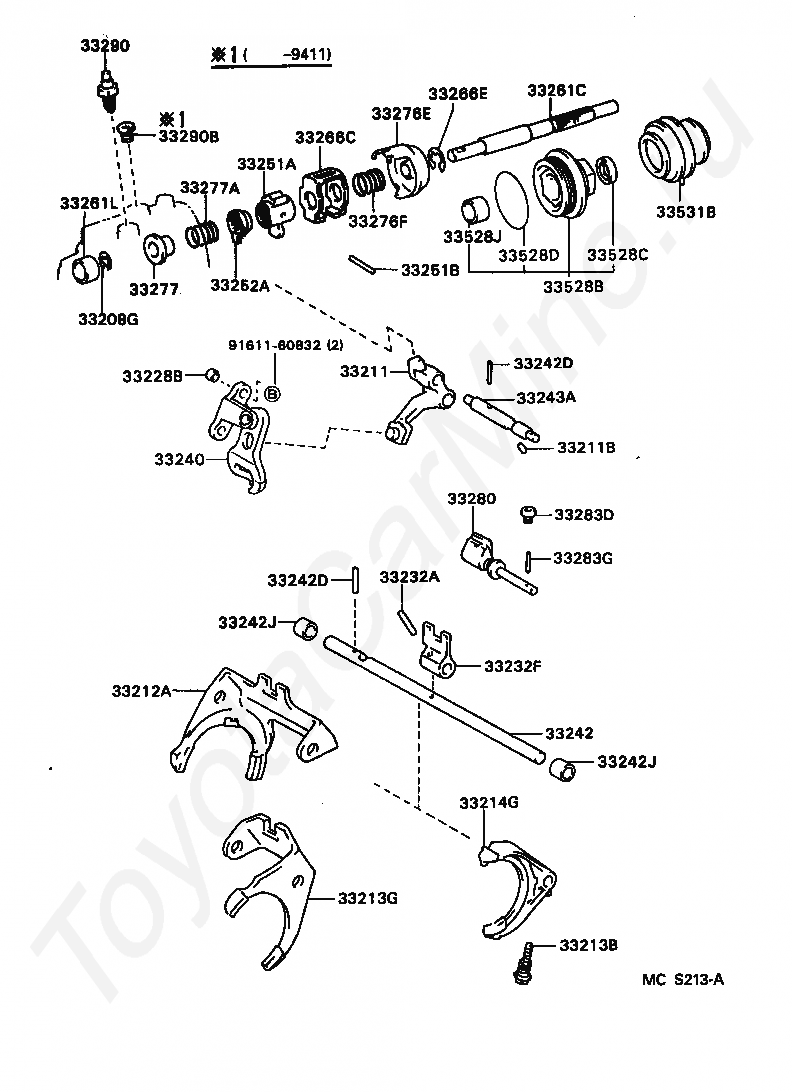

GEAR SHIFT FORK & LEVER SHAFT (MTM) TOYOTA CARINA ED, 1993/09 - 1995/08, 2 литра, 16 клапанов, DOHC, EFI, G-LIMITED TYPE, ST202, механика

Каталог

Япония

Модель

CARINA ED

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Класс

G-LIMITED TYPE

Фрейм

ST202

Трансмиссия

механика

Опции

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
  • 4
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

33208G

RING, E(FOR REVERSE RESTRICT PIN)

33211

FORK, REVERSE SHIFT

33211B

ROLLER(FOR REVERSE SHIFT FORK)

33212A

FORK, GEAR SHIFT, NO.1

33213B

BOLT(FOR SHIFT FORK SET)

33213G

FORK, GEAR SHIFT, NO.2

33214G

FORK, GEAR SHIFT, NO.3

33228B

PIN, RING(FOR REVERSE SHIFT ARM BRACKET)

33232A

PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)

33232F

HEAD, GEAR SHIFT, NO.1

33240

BRACKET ASSY, REVERSE SHIFT ARM

33242

SHAFT, GEAR SHIFT FORK, NO.1

33242D

PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT)

33242J

BUSH (FOR SHIFT FORK SHAFT)

33243A

SHAFT, GEAR SHIFT FORK, NO.2

33251A

LEVER, SHIFT, INNER NO.1

33251B

PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)

33252A

LEVER, SHIFT, INNER NO.2

33261C

SHAFT, SHIFT & SELECT LEVER

33261L

BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)

33266C

PLATE, SHIFT INTER LOCK

33266E

RING, E (FOR SHIFT INTER LOCK PLATE)

33276E

SEAT, SELECT SPRING, NO.1

33276F

SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)

33277

SEAT, SELECT SPRING, NO.2

33277A

SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)

33280

PIN ASSY, REVERSE RESTRICT

33283D

PLUG (FOR REVERSE RESTRICT PIN)

33283G

PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

33290

BALL ASSY, LOCK, NO.1

33290B

BALL ASSY, LOCK, NO.2

33528B

COVER, CONTROL SHAFT

33528C

SEAL, OIL (FOR CONTROL SHAFT COVER)

33528D

RING, O (FOR CONTROL SHAFT COVER)

33528J

BUSH, BIMETAL FORMED (FOR CONTROL SHAFT COVER)

33531B

BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)

9161160832

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

33143D

BAFFLE, TRANSMISSION OIL

33211

FORK, REVERSE SHIFT

33211B

ROLLER(FOR REVERSE SHIFT FORK)

33212A

FORK, GEAR SHIFT, NO.1

33213B

BOLT(FOR SHIFT FORK SET)

33213G

FORK, GEAR SHIFT, NO.2

33214G

FORK, GEAR SHIFT, NO.3

33232D

BOLT (FOR SHIFT HEAD SET)

33232F

HEAD, GEAR SHIFT, NO.1

33240

BRACKET ASSY, REVERSE SHIFT ARM

33242

SHAFT, GEAR SHIFT FORK, NO.1

33242E

RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

33243A

SHAFT, GEAR SHIFT FORK, NO.2

33244G

SHAFT, GEAR SHIFT FORK, NO.3

33251A

LEVER, SHIFT, INNER NO.1

33251B

PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)

33252A

LEVER, SHIFT, INNER NO.2

33261C

SHAFT, SHIFT & SELECT LEVER

33261K

BEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)

33266A

BOLT (FOR SHIFT INTER LOCK PLATE)

33266C

PLATE, SHIFT INTER LOCK

33266D

GASKET (FOR SHIFT INTER LOCK PLATE)

33269

COVER, SHIFT INTER LOCK PLATE

33275

SEAT, SHIFT DETENT BALL SPRING, NO.1

33275C

BALL (FOR SHIFT DETENT)

33275E

SPRING, COMPRESSION (FOR SHIFT DETENT BALL)

33275F

PLUG (FOR SHIFT DETENT BALL)

33276E

SEAT, SELECT SPRING, NO.1

33276F

SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)

33276H

RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)

33277

SEAT, SELECT SPRING, NO.2

33277A

SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)

33277C

RING, SHAFT SNAP (FOR SELECT SPRING NO.2 SEAT)

33280

PIN ASSY, REVERSE RESTRICT

33283D

PLUG (FOR REVERSE RESTRICT PIN)

33283G

PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

33528B

COVER, CONTROL SHAFT

33528C

SEAL, OIL (FOR CONTROL SHAFT COVER)

33528E

BOLT (FOR CONTROL SHAFT COVER)

33528H

BEARING, NEEDLE ROLLER (FOR CONTROL SHAFT COVER)

33531B

BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)

33584A

GASKET, CONTROL SHIFT LEVER RETAINER

9011908649

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

33208G

RING, E(FOR REVERSE RESTRICT PIN)

33211

FORK, REVERSE SHIFT

33211B

ROLLER(FOR REVERSE SHIFT FORK)

33212A

FORK, GEAR SHIFT, NO.1

33213B

BOLT(FOR SHIFT FORK SET)

33213G

FORK, GEAR SHIFT, NO.2

33214G

FORK, GEAR SHIFT, NO.3

33228B

PIN, RING(FOR REVERSE SHIFT ARM BRACKET)

33232A

PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)

33232F

HEAD, GEAR SHIFT, NO.1

33240

BRACKET ASSY, REVERSE SHIFT ARM

33242

SHAFT, GEAR SHIFT FORK, NO.1

33242D

PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT)

33242J

BUSH (FOR SHIFT FORK SHAFT)

33243A

SHAFT, GEAR SHIFT FORK, NO.2

33251A

LEVER, SHIFT, INNER NO.1

33251B

PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)

33252A

LEVER, SHIFT, INNER NO.2

33261C

SHAFT, SHIFT & SELECT LEVER

33261L

BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)

33266C

PLATE, SHIFT INTER LOCK

33266E

RING, E (FOR SHIFT INTER LOCK PLATE)

33276E

SEAT, SELECT SPRING, NO.1

33276F

SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)

33277

SEAT, SELECT SPRING, NO.2

33277A

SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)

33280

PIN ASSY, REVERSE RESTRICT

33283D

PLUG (FOR REVERSE RESTRICT PIN)

33283G

PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

33290

BALL ASSY, LOCK, NO.1

33290B

BALL ASSY, LOCK, NO.2

33528B

COVER, CONTROL SHAFT

33528C

SEAL, OIL (FOR CONTROL SHAFT COVER)

33528D

RING, O (FOR CONTROL SHAFT COVER)

33528J

BUSH, BIMETAL FORMED (FOR CONTROL SHAFT COVER)

33531B

BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)

9161160832

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

33143D

BAFFLE, TRANSMISSION OIL

33211

FORK, REVERSE SHIFT

33211B

ROLLER(FOR REVERSE SHIFT FORK)

33212A

FORK, GEAR SHIFT, NO.1

33213B

BOLT(FOR SHIFT FORK SET)

33213G

FORK, GEAR SHIFT, NO.2

33214G

FORK, GEAR SHIFT, NO.3

33232D

BOLT (FOR SHIFT HEAD SET)

33232F

HEAD, GEAR SHIFT, NO.1

33240

BRACKET ASSY, REVERSE SHIFT ARM

33242

SHAFT, GEAR SHIFT FORK, NO.1

33242E

RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

33243A

SHAFT, GEAR SHIFT FORK, NO.2

33244G

SHAFT, GEAR SHIFT FORK, NO.3

33251A

LEVER, SHIFT, INNER NO.1

33251B

PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)

33252A

LEVER, SHIFT, INNER NO.2

33261C

SHAFT, SHIFT & SELECT LEVER

33261K

BEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)

33266A

BOLT (FOR SHIFT INTER LOCK PLATE)

33266C

PLATE, SHIFT INTER LOCK

33266D

GASKET (FOR SHIFT INTER LOCK PLATE)

33269

COVER, SHIFT INTER LOCK PLATE

33275

SEAT, SHIFT DETENT BALL SPRING, NO.1

33275C

BALL (FOR SHIFT DETENT)

33275E

SPRING, COMPRESSION (FOR SHIFT DETENT BALL)

33275F

PLUG (FOR SHIFT DETENT BALL)

33276E

SEAT, SELECT SPRING, NO.1

33276F

SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)

33276H

RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)

33277

SEAT, SELECT SPRING, NO.2

33277A

SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)

33277C

RING, SHAFT SNAP (FOR SELECT SPRING NO.2 SEAT)

33280

PIN ASSY, REVERSE RESTRICT

33283D

PLUG (FOR REVERSE RESTRICT PIN)

33283G

PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

33528B

COVER, CONTROL SHAFT

33528C

SEAL, OIL (FOR CONTROL SHAFT COVER)

33528E

BOLT (FOR CONTROL SHAFT COVER)

33528H

BEARING, NEEDLE ROLLER (FOR CONTROL SHAFT COVER)

33531B

BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)

33584A

GASKET, CONTROL SHIFT LEVER RETAINER

9011908649

Крепеж
