Топливный бак и горловина TOYOTA CAMRY/HYBRID (CHINA), 2017/12 - 2021/03, 2,5 литра, 16 клапанов, DOHC, седан, AXVA70, автомат, АКПП, 8 скоростей

Каталог

Ближний Восток

Модель

CAMRY/HYBRID (CHINA)

Двигатель

2,5 литра, 16 клапанов, DOHC

Кузов

седан

Фрейм

AXVA70

Трансмиссия

автомат АКПП, 8 скоростей

Опции

левый руль 4 двери GRAMS Китай 666W

Код

Описание

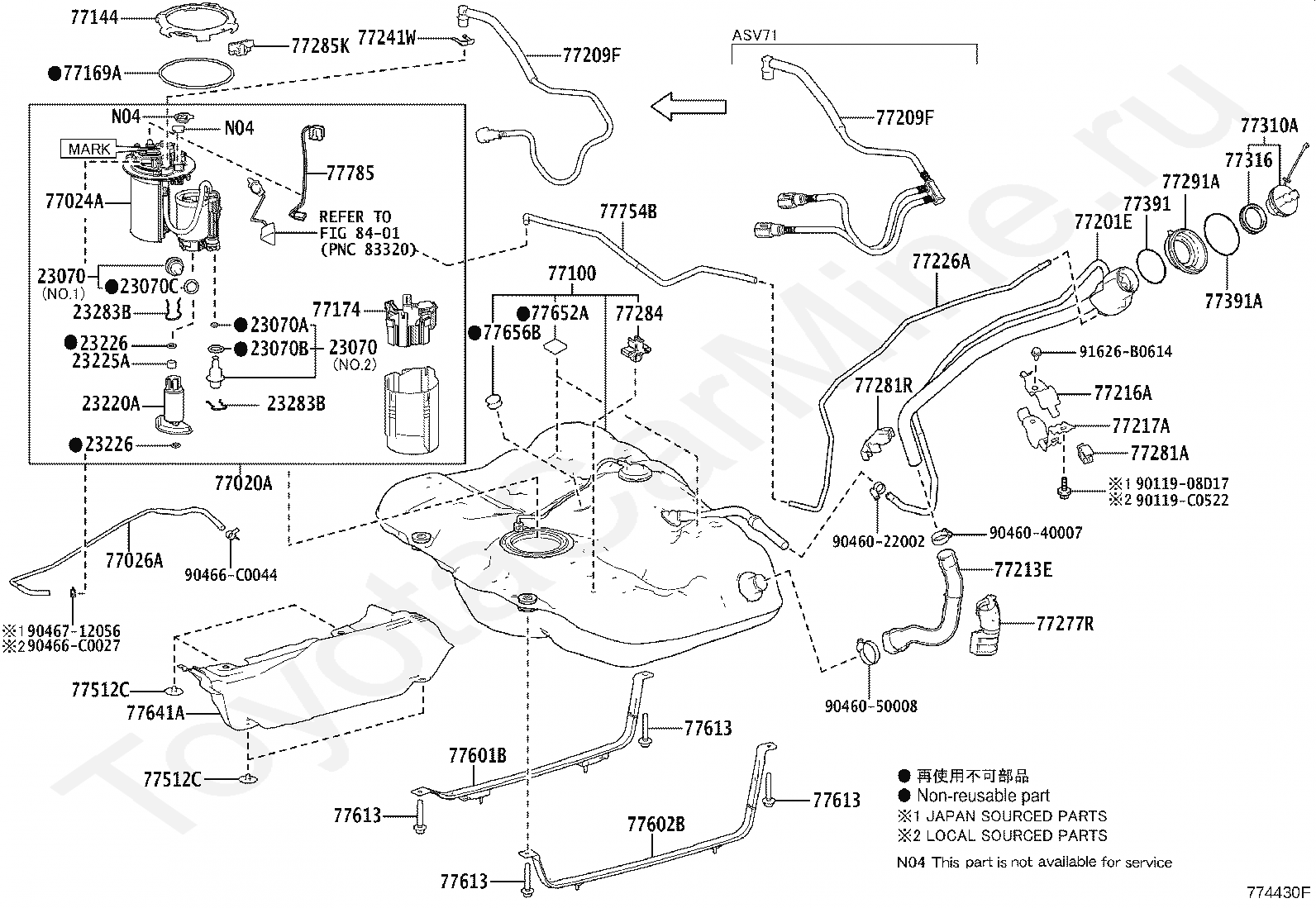

23070

VALVE ASSY, FUEL MAIN

23070A

RING, O, NO.1(FOR FUEL MAIN VALVE)

23070B

RING, O, NO.2(FOR FUEL MAIN VALVE)

23070C

RING, O, NO.3(FOR FUEL MAIN VALVE)

23220A

PUMP ASSY, FUEL W/FILTER

23225A

SPACER, FUEL PUMP

23226

RING, O(FOR FUEL PUMP)

23283B

HOLDER, FUEL PRESSURE REGULATOR

77020A

TUBE ASSY, FUEL SUCTION W/PUMP & GAGE

77024A

PLATE SUB-ASSY, FUEL SUCTION

77026A

TUBE SUB-ASSY, FUEL EVAPORATION, NO.1

77100

TANK ASSY, FUEL

77144

RETAINER, FUEL PUMP GAUGE

77169A

GASKET, FUEL SUCTION TUBE SET

77174

SUPPORT, FUEL SUCTION, NO.1

77201E

PIPE SUB-ASSY, FUEL TANK FILLER

77209F

TUBE SUB-ASSY, FUEL TANK MAIN

77213E

HOSE, FUEL TANK TO FILLER PIPE

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77217A

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77226A

TUBE, FUEL TANK BREATHER, NO.6

77241W

CLIP, TUBE JOINT

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77281A

CLAMP, FUEL FILLER PIPE

77281R

CLAMP, FUEL FILLER PIPE, NO.2

77284

CLAMP, FUEL TUBE

77285K

CLAMP, FUEL TUBE, NO.1

77291A

SHIELD, FUEL TANK FILLER PIPE

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77391

RING, FUEL INLET BOX

77391A

RING, FUEL INLET BOX

77512C

BRACKET, FUEL TANK

77601B

BAND SUB-ASSY, FUEL TANK, NO.1 RH

77602B

BAND SUB-ASSY, FUEL TANK, NO.1 LH

77613

BOLT, FUEL TANK BAND SET

77641A

PROTECTOR, FUEL TANK, NO.1

77652A

CUSHION, FUEL TANK, NO.2

77656B

CUSHION, FUEL TANK, NO.6

77754B

HOSE, CHARCOAL CANISTER OUTLET

77785

HARNESS, FUEL PUMP

8401

переход к группе запчастей

9011908D17

Крепеж

90119C0522

Крепеж

9046022002

Крепеж

9046040007

Крепеж

9046050008

Крепеж

90466C0027

Крепеж

90466C0044

Крепеж

9046712056

Крепеж

91626B0614

Крепеж

Код

Описание

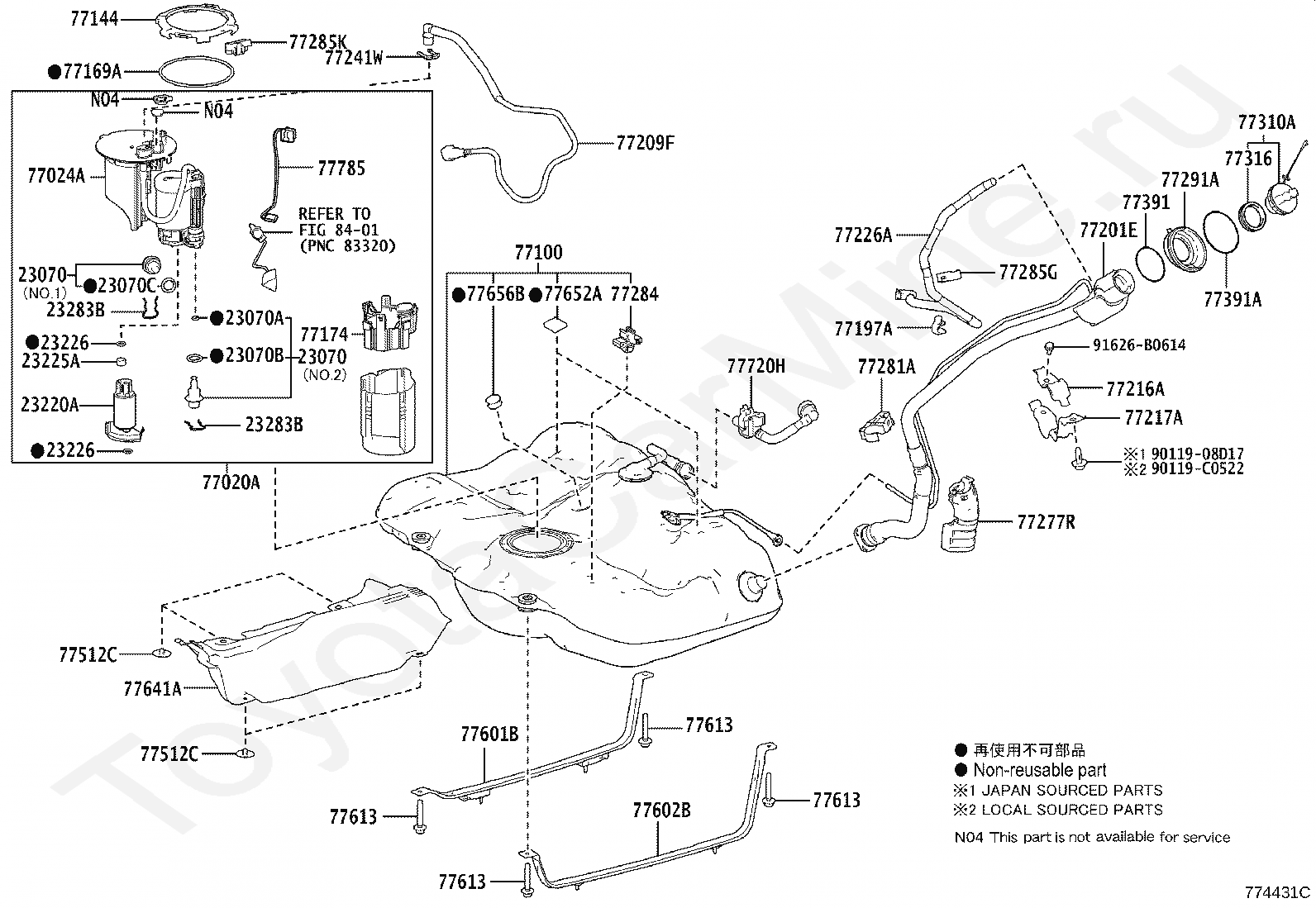

23070

VALVE ASSY, FUEL MAIN

23070A

RING, O, NO.1(FOR FUEL MAIN VALVE)

23070B

RING, O, NO.2(FOR FUEL MAIN VALVE)

23070C

RING, O, NO.3(FOR FUEL MAIN VALVE)

23220A

PUMP ASSY, FUEL W/FILTER

23225A

SPACER, FUEL PUMP

23226

RING, O(FOR FUEL PUMP)

23283B

HOLDER, FUEL PRESSURE REGULATOR

77020A

TUBE ASSY, FUEL SUCTION W/PUMP & GAGE

77024A

PLATE SUB-ASSY, FUEL SUCTION

77100

TANK ASSY, FUEL

77144

RETAINER, FUEL PUMP GAUGE

77169A

GASKET, FUEL SUCTION TUBE SET

77174

SUPPORT, FUEL SUCTION, NO.1

77197A

CLAMP, EVAPORATION VENT TUBE, NO.2

77201E

PIPE SUB-ASSY, FUEL TANK FILLER

77209F

TUBE SUB-ASSY, FUEL TANK MAIN

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77217A

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77226A

TUBE, FUEL TANK BREATHER, NO.6

77241W

CLIP, TUBE JOINT

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77281A

CLAMP, FUEL FILLER PIPE

77284

CLAMP, FUEL TUBE

77285G

CLAMP, FUEL TUBE, NO.1

77285K

CLAMP, FUEL TUBE, NO.1

77291A

SHIELD, FUEL TANK FILLER PIPE

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77391

RING, FUEL INLET BOX

77391A

RING, FUEL INLET BOX

77512C

BRACKET, FUEL TANK

77601B

BAND SUB-ASSY, FUEL TANK, NO.1 RH

77602B

BAND SUB-ASSY, FUEL TANK, NO.1 LH

77613

BOLT, FUEL TANK BAND SET

77641A

PROTECTOR, FUEL TANK, NO.1

77652A

CUSHION, FUEL TANK, NO.2

77656B

CUSHION, FUEL TANK, NO.6

77720H

VALVE ASSY, FUEL OUTLET

77785

HARNESS, FUEL PUMP

8401

переход к группе запчастей

9011908D17

Крепеж

90119C0522

Крепеж

91626B0614

Крепеж

Код

Описание

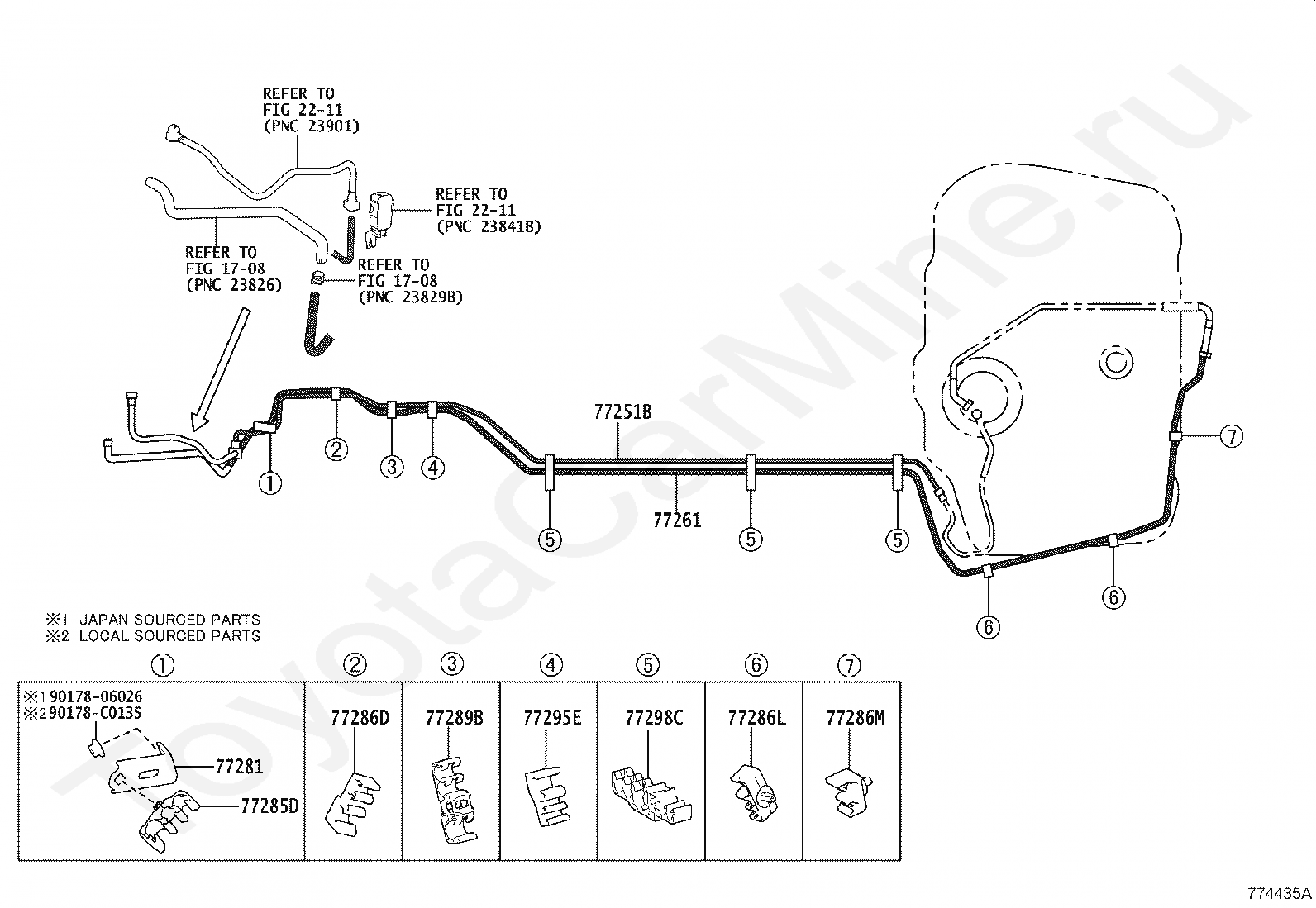

1708

переход к группе запчастей

2211

переход к группе запчастей

77251B

TUBE, FUEL MAIN

77261

TUBE SUB-ASSY, FUEL EMISSION

77281

BRACKET, FUEL MAIN TUBE, NO.1

77285D

CLAMP, FUEL TUBE, NO.1

77286D

CLAMP, FUEL TUBE, NO.2

77286L

CLAMP, FUEL TUBE, NO.5

77286M

CLAMP, FUEL TUBE, NO.6

77289B

CLAMP, FUEL TUBE, NO.3

77295E

GROMMET, FUEL TUBE

77298C

CLAMP, FUEL TUBE, NO.4

9017806026

Крепеж

90178C0135

Крепеж

Код

Описание

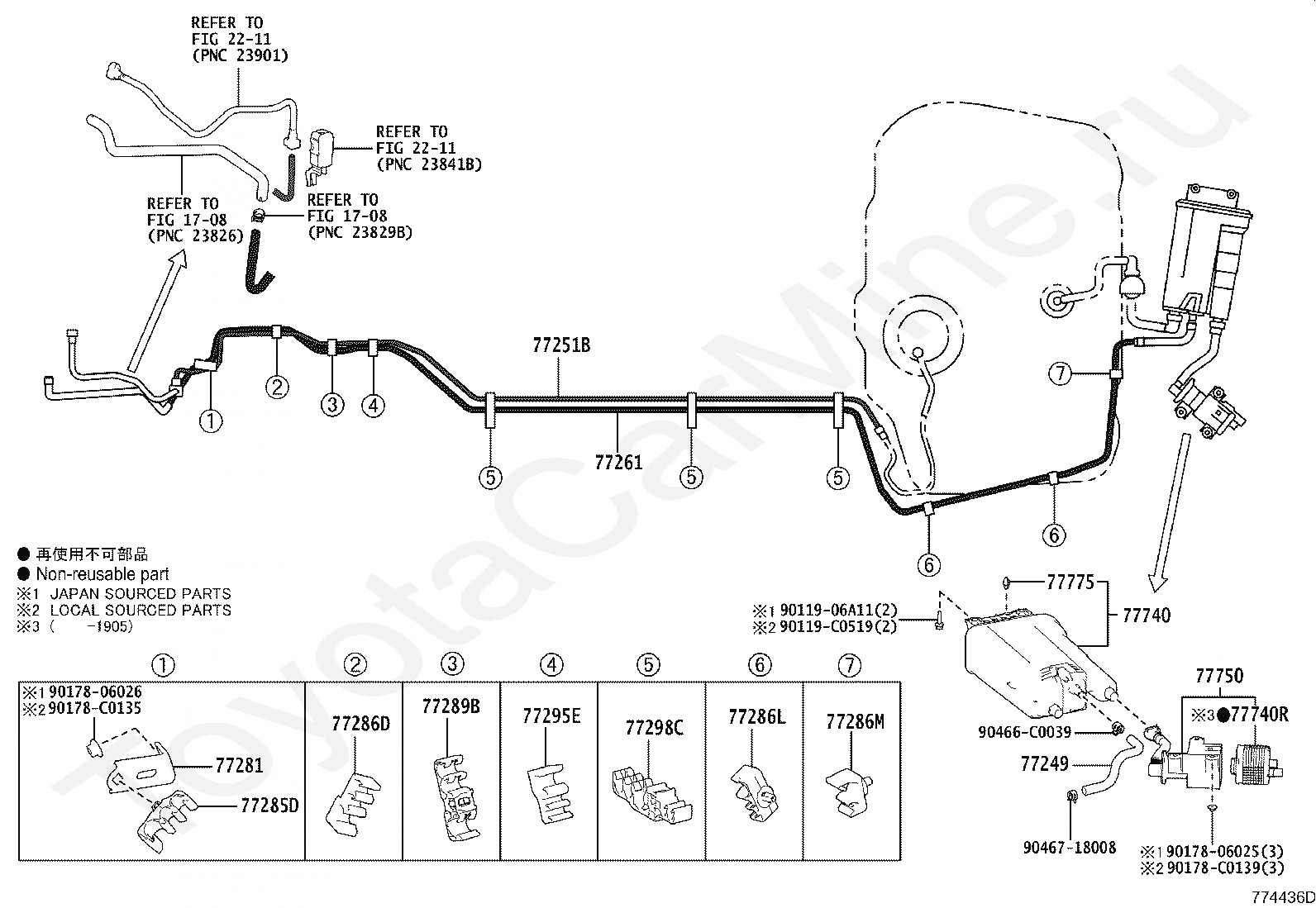

1708

переход к группе запчастей

2211

переход к группе запчастей

77249

HOSE, FUEL EMISSION

77251B

TUBE, FUEL MAIN

77261

TUBE SUB-ASSY, FUEL EMISSION

77281

BRACKET, FUEL MAIN TUBE, NO.1

77285D

CLAMP, FUEL TUBE, NO.1

77286D

CLAMP, FUEL TUBE, NO.2

77286L

CLAMP, FUEL TUBE, NO.5

77286M

CLAMP, FUEL TUBE, NO.6

77289B

CLAMP, FUEL TUBE, NO.3

77295E

GROMMET, FUEL TUBE

77298C

CLAMP, FUEL TUBE, NO.4

77740

CANISTER ASSY, CHARCOAL

77740R

PUMP SUB-ASSY, LEAK DETECTION

77750

CANISTER ASSY, CHARCOAL

77775

GUIDE, CHARCOAL CANISTER OUTLET

9011906A11

Крепеж

90119C0519

Крепеж

9017806025

Крепеж

9017806026

Крепеж

90178C0135

Крепеж

90178C0139

Крепеж

90466C0039

Крепеж

9046718008

Крепеж

Код

Описание

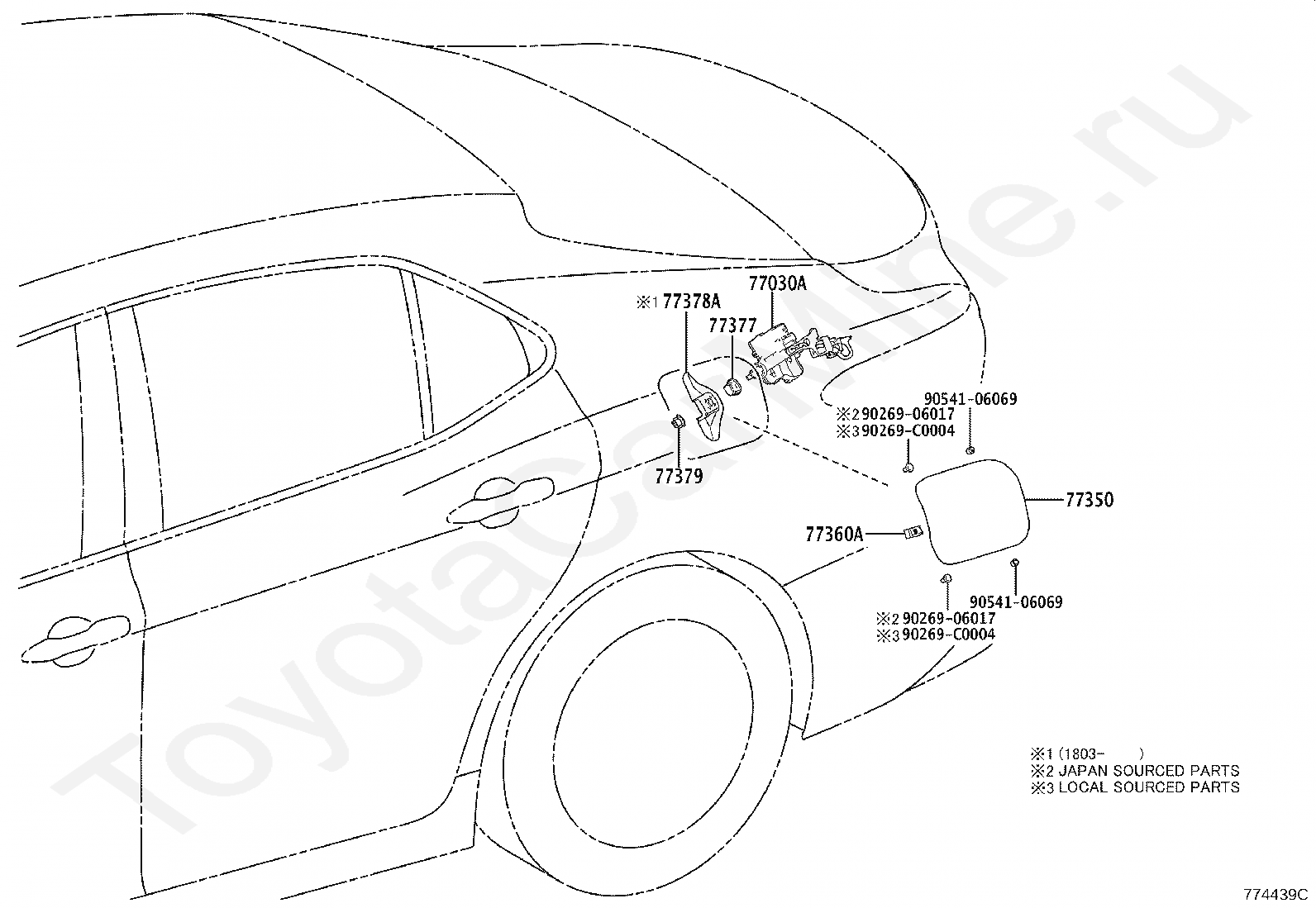

77030A

LOCK ASSY, FUEL LID W/MOTOR

77350

LID ASSY, FUEL FILLER OPENING

77360A

SPRING ASSY, FUEL FILLER OPENING LID

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77378A

COVER, FUEL FILLER OPENING LID LOCK

77379

SPACER, FUEL INLET BOX COVER, NO.2

9026906017

Крепеж

90269C0004

Крепеж

9054106069

Крепеж
