Каталог
ЯпонияМодель
CAMRY GRACIAДвигатель
2,5 литра, 24 клапана, DOHC, EFIКузов
фургонФрейм
MCV25Опции

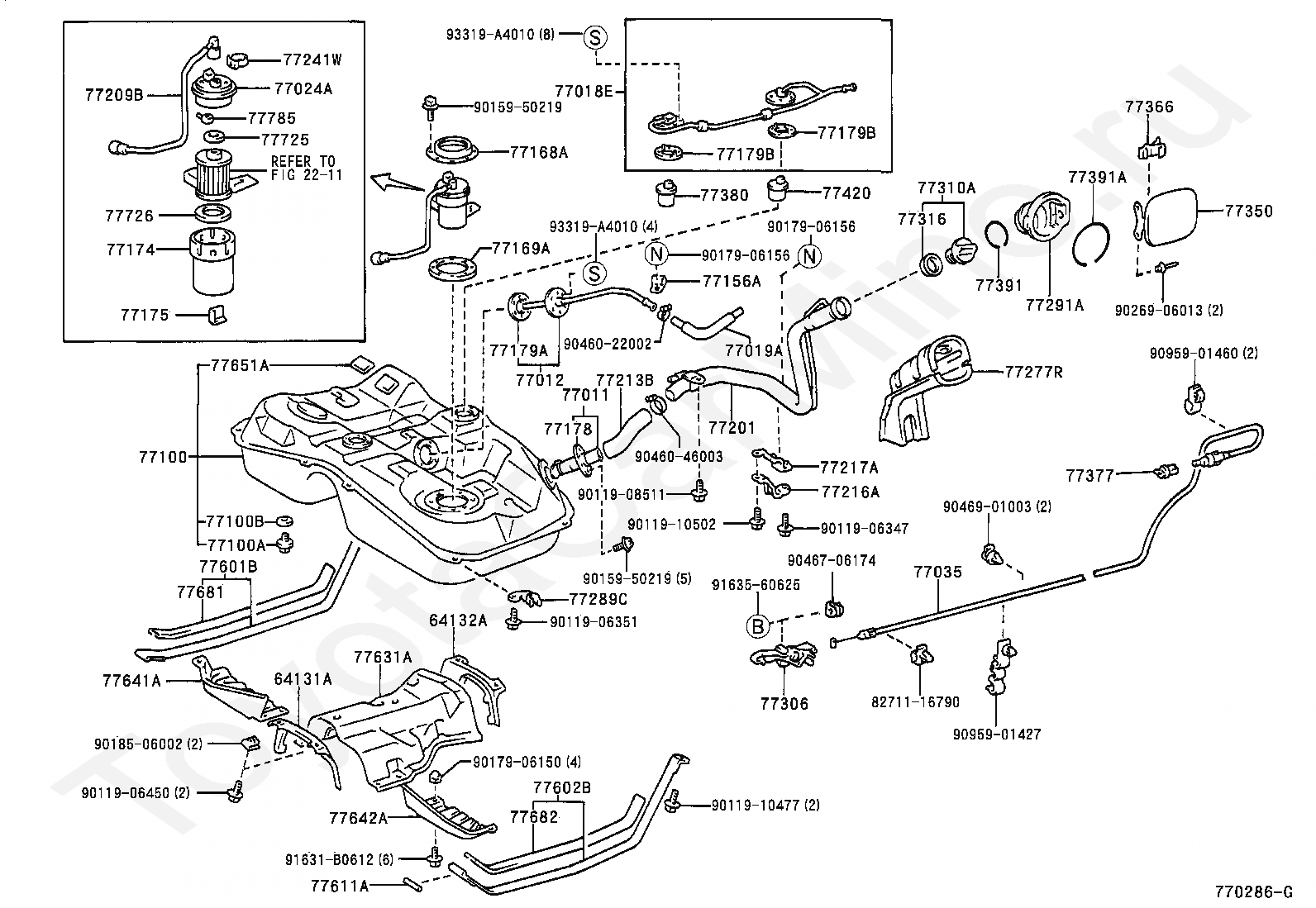

Код
Описание
2211
переход к группе запчастей
64131A
BRACKET, FUEL TANK PROTECTOR, UPPER NO.1
64132A
BRACKET, FUEL TANK PROTECTOR, UPPER NO.2
77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012
TUBE SUB-ASSY, FUEL TANK BREATHER
77018E
TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77019A
HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)
77024A
PLATE SUB-ASSY, FUEL SUCTION
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100
TANK ASSY, FUEL
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77156A
PLATE, BREATHER TUBE SUPPORT, NO.2
77168A
PLATE, FUEL TANK VENT TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77174
SUPPORT, FUEL SUCTION, NO.1
77175
SUPPORT, FUEL SUCTION, NO.2
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77179A
GASKET, FUEL TANK BREATHER TUBE
77179B
GASKET, FUEL TANK EVAPORATION VENT TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77209B
TUBE SUB-ASSY, FUEL PUMP
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77241W
CLIP, TUBE JOINT
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77289C
CLAMP, FUEL TUBE, NO.4
77291A
SHIELD, FUEL TANK FILLER PIPE
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77380
VALVE ASSY, FUEL CUT OFF
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77420
VALVE ASSY, FUEL CUT OFF, NO.2
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77611A
PIN (FOR FUEL TANK BAND)
77631A
PROTECTOR, FUEL TANK, LOWER CENTER
77641A
PROTECTOR, FUEL TANK, NO.1
77642A
PROTECTOR, FUEL TANK, NO.2
77651A
CUSHION, FUEL TANK, NO.1
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
77725
CUSHION, FUEL FILTER, NO.1
77726
CUSHION, FUEL FILTER, NO.2
77785
HARNESS, FUEL PUMP
8271116790
Крепеж
9011906347
Крепеж
9011906351
Крепеж
9011906450
Крепеж
9011908511
Крепеж
9011910477
Крепеж
9011910502
Крепеж
9015950219
Крепеж
9017906150
Крепеж
9017906156
Крепеж
9018506002
Крепеж
9026906013
Крепеж
9046022002
Крепеж
9046046003
Крепеж
9046706174
Крепеж
9046901003
Крепеж
9095901427
Крепеж
9095901460
Крепеж
91631B0612
Крепеж
9163560625
Крепеж
93319A4010
Крепеж

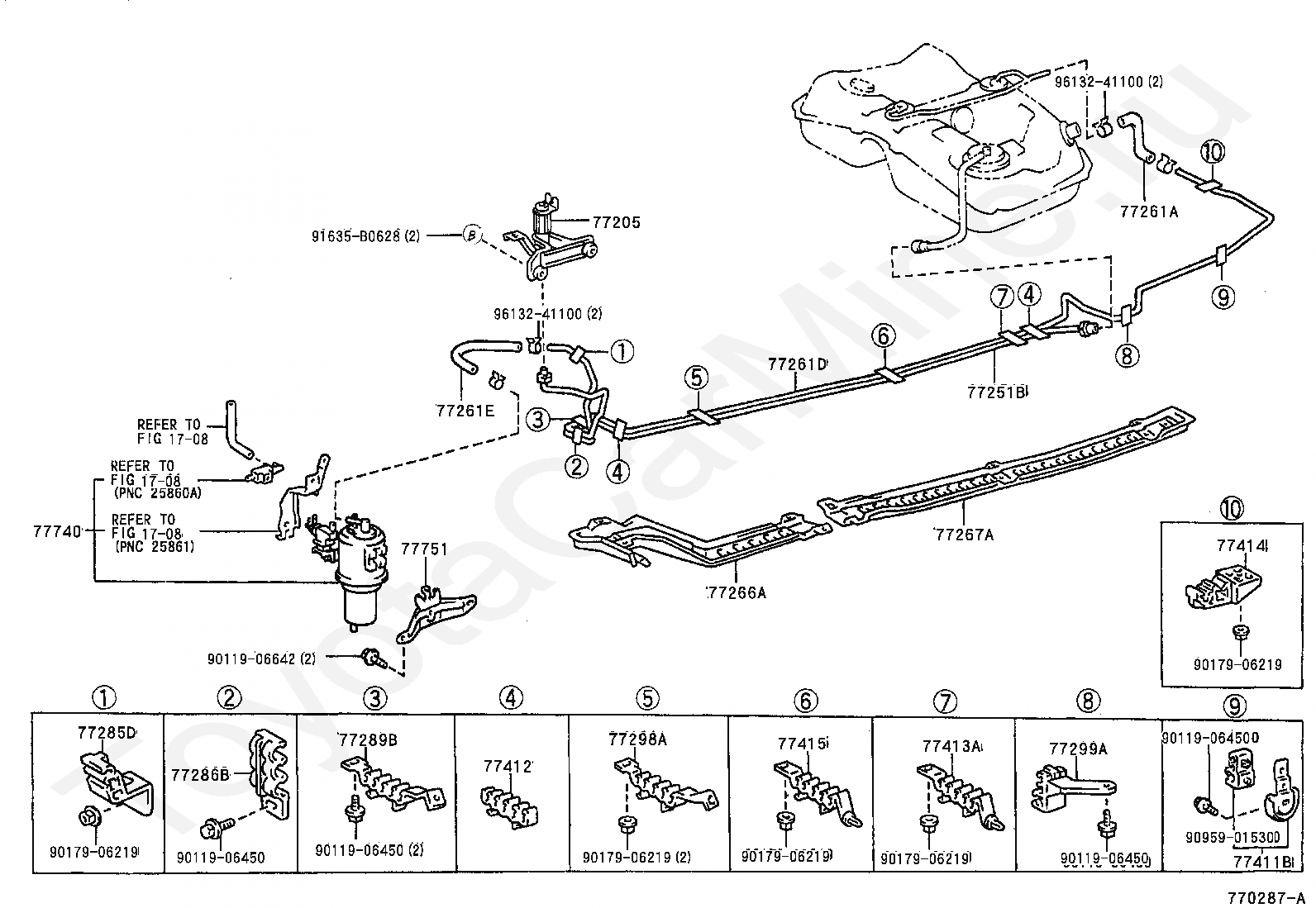

Код
Описание
1708
переход к группе запчастей
77205
TUBE SUB-ASSY, FUEL MAIN
77251B
TUBE, FUEL MAIN
77261A
HOSE, FUEL, NO.1 (FOR FUEL EMISSION TUBE)
77261D
TUBE, FUEL TANK TO CANISTER
77261E
HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77266A
PROTECTOR, FUEL TUBE, NO.1
77267A
PROTECTOR, FUEL TUBE, NO.2
77285D
CLAMP, FUEL TUBE, NO.1
77286B
CLAMP, FUEL TUBE W/GROMMET, NO.2
77289B
CLAMP, FUEL TUBE, NO.3
77298A
CLAMP, FUEL TUBE, NO.4
77299A
CLAMP, FUEL TUBE, NO.5
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
77412
SUPPORT, FUEL TUBE GROMMET, NO.2
77413A
SUPPORT, FUEL TUBE GROMMET, NO.3
77414
SUPPORT, FUEL TUBE GROMMET, NO.4
77415
SUPPORT, FUEL TUBE GROMMET, NO.5
77740
CANISTER ASSY, CHARCOAL
77751
BRACKET, CHARCOAL CANISTER BASE
9011906450
Крепеж
9011906642
Крепеж
9017906219
Крепеж
9095901530
Крепеж
91635B0628
Крепеж
9613241100
Крепеж
