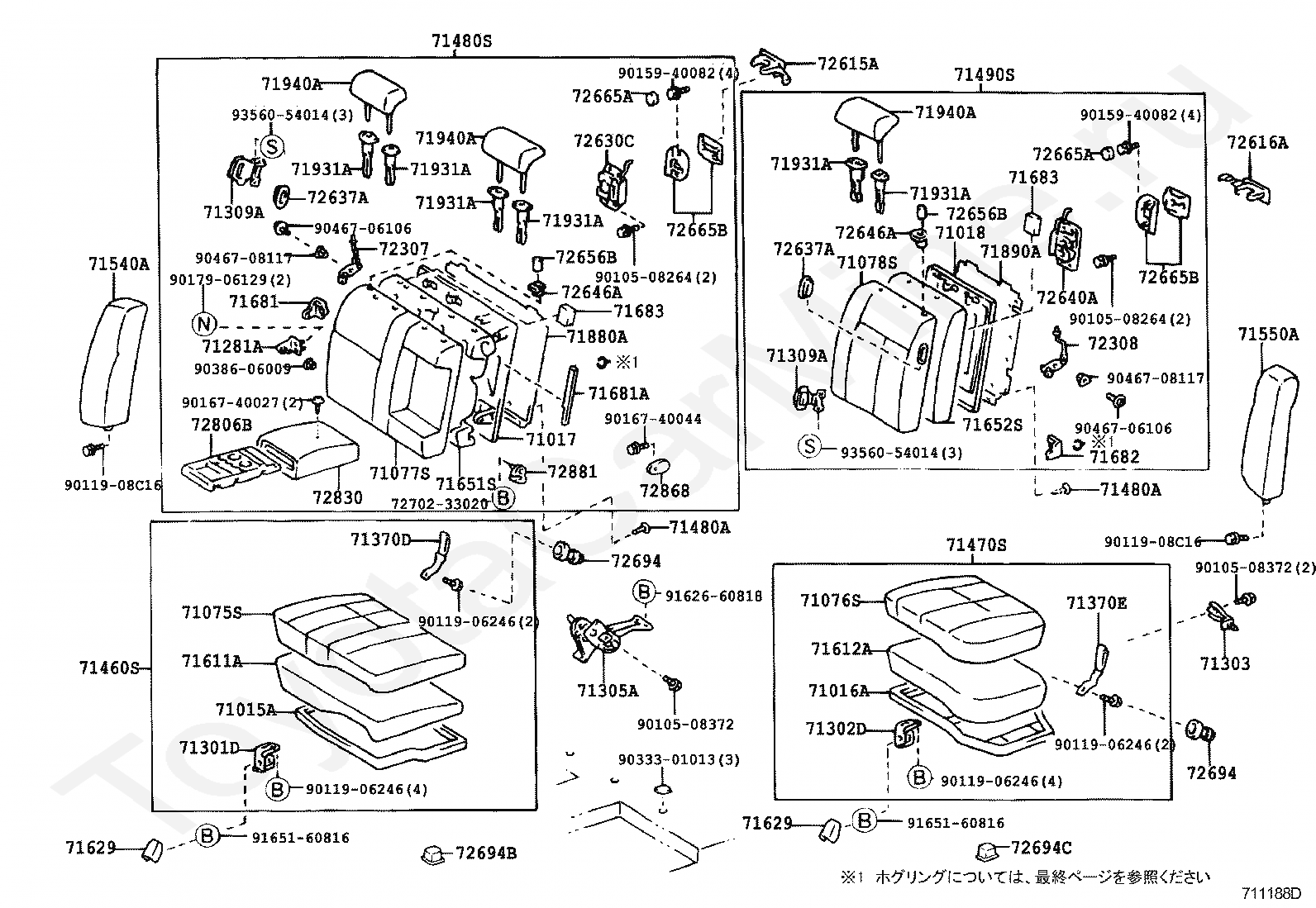

Задние кресла TOYOTA CAMRY GRACIA, 1997/06 - 2001/09, 2,5 литра, 24 клапана, DOHC, EFI, фургон, MCV25

Каталог

Япония

Модель

CAMRY GRACIA

Двигатель

2,5 литра, 24 клапана, DOHC, EFI

Кузов

фургон

Фрейм

MCV25

Опции

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71281A

HINGE, REAR SEAT CENTER ARMREST

71301D

HINGE SUB-ASSY, REAR SEAT, RH

71302D

HINGE SUB-ASSY, REAR SEAT, LH

71303

HINGE SUB-ASSY, REAR SEAT BACK

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71309A

BRACKET SUB-ASSY, REAR SEAT BACK HOLDER

71370D

HOLDER ASSY, REAR SEAT CUSHION, RH

71370E

HOLDER ASSY, REAR SEAT CUSHION, LH

71460S

CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)

71470S

CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71480A

CLIP (FOR REAR SEAT BACK)

71480S

BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

71490S

BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71540A

BACK ASSY, REAR SIDE SEAT, RH

71550A

BACK ASSY, REAR SIDE SEAT, LH

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71629

COVER, REAR SEAT CUSHION HINGE

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71681

PAD, REAR SEAT BACK CORNER, A

71681A

PAD, REAR SEAT BACK CORNER, RH

71682

PAD, REAR SEAT BACK CORNER, B

71683

PAD, REAR SEAT BACK CORNER, C

71880A

CARPET ASSY, REAR SEAT BACK BOARD, RH

71890A

CARPET ASSY, REAR SEAT BACK BOARD, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72307

LINK SUB-ASSY, RECLINING CONTROL, RH

72308

LINK SUB-ASSY, RECLINING CONTROL, LH

72615A

COVER, REAR SEAT BACK LOCK STRIKER, RH

72616A

COVER, REAR SEAT BACK LOCK STRIKER, LH

72630C

LOCK ASSY, REAR SEAT BACK, RH

72637A

HANDLE, REAR SEAT LOCK

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646A

GROMMET, REAR SEAT BACK STOP BUTTON

72656B

BUTTON, REAR SEAT BACK STOP RELEASE

72665A

CAP(FOR REAR SEAT BACK LOCK COVER)

72665B

COVER, REAR SEAT BACK LOCK

72694

COVER, REAR SEAT CUSHION LOCK

72694B

COVER, REAR SEAT CUSHION LOCK, RH

72694C

COVER, REAR SEAT CUSHION LOCK, LH

7270233020

Крепеж

72806B

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72868

COVER, CENTER ARMREST HINGE, RH

72881

SUPPORT, REAR SEAT CENTER ARMREST, RH

9010508264

Крепеж

9010508372

Крепеж

9011906246

Крепеж

9011908C16

Крепеж

9015940082

Крепеж

9016740027

Крепеж

9016740044

Крепеж

9017906129

Крепеж

9033301013

Крепеж

9038606009

Крепеж

9046706106

Крепеж

9046708117

Крепеж

9162660818

Крепеж

9165160816

Крепеж

9356054014

Крепеж

Код

Описание

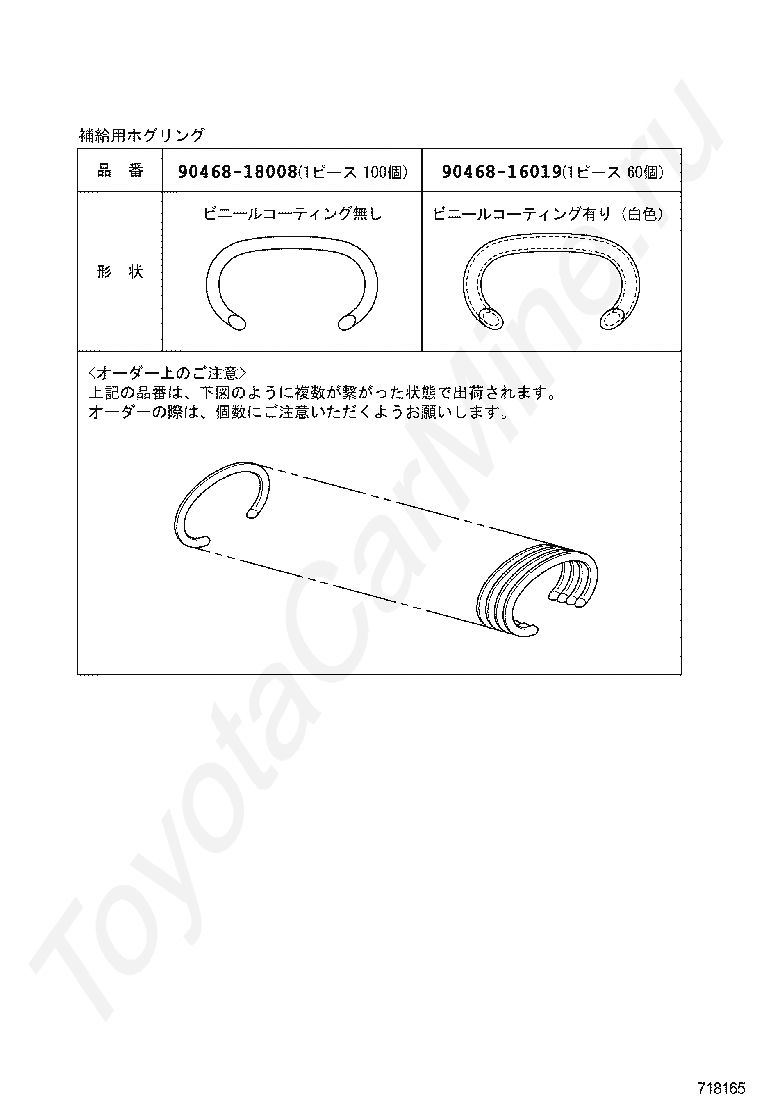

9046816019

Крепеж

9046818008

Крепеж

Задние кресла TOYOTA CAMRY GRACIA, 1997/06 - 2001/09, 2,5 литра, 24 клапана, DOHC, EFI, фургон, MCV25
