Каталог
ЯпонияМодель
CAMRY GRACIAДвигатель
2,5 литра, 24 клапана, DOHC, EFIКузов
фургонФрейм
MCV25Опции

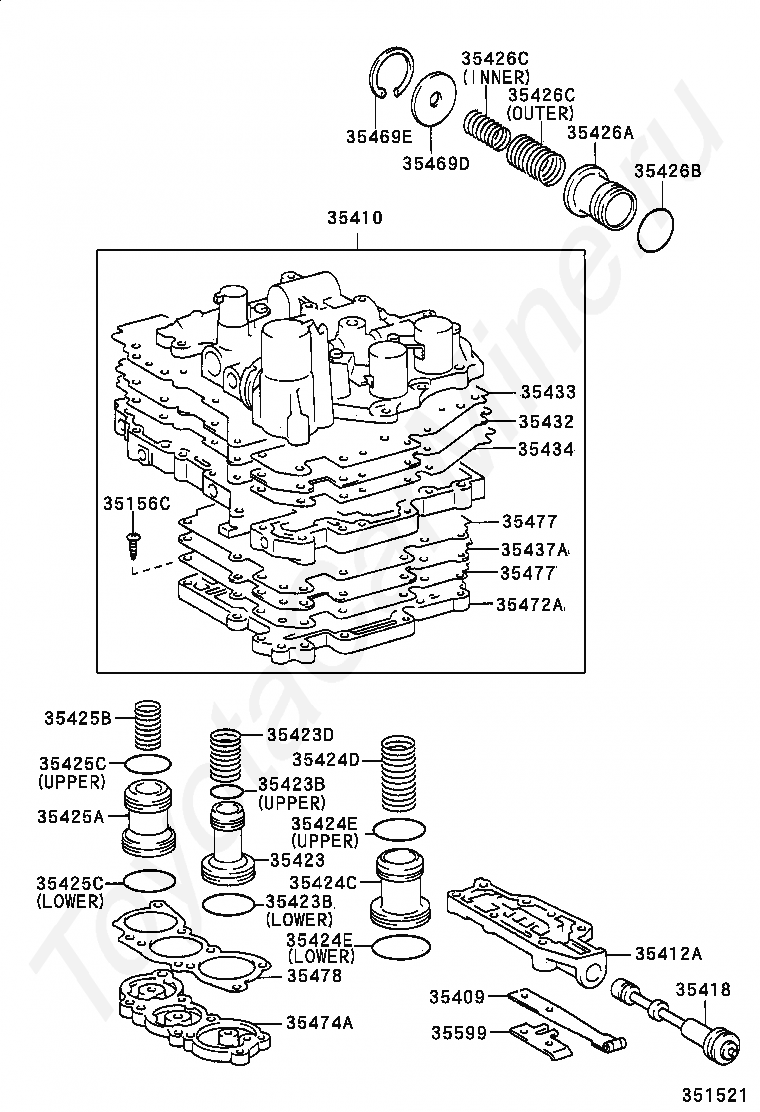

Код
Описание
35156C
SCREW(FOR TRANSMISSION CASE NO.2 PLATE)
35409
SPRING SUB-ASSY, MANUAL DETENT
35410
BODY ASSY, TRANSMISSION VALVE
35412A
BODY, MANUAL VALVE
35418
VALVE, MANUAL
35423
PISTON, B-2 ACCUMULATOR
35423B
RING, O (FOR B-2 ACCUMULATOR PISTON)
35423D
SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)
35424C
PISTON, C-1 ACCUMULATOR
35424D
SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424E
RING, O (FOR C-1 ACCUMULATOR PISTON)
35425A
PISTON, C-2 ACCUMULATOR
35425B
SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425C
RING, O (FOR C-2 ACCUMULATOR PISTON)
35426A
PISTON, C-0 ACCUMULATOR
35426B
RING, O (FOR C-0 ACCUMULATOR PISTON)
35426C
SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
35432
PLATE, VALVE BODY, NO.1
35433
GASKET, VALVE BODY, NO.1
35434
GASKET, VALVE BODY, NO.2
35437A
PLATE, UPPER VALVE BODY COVER
35469D
SPACER (FOR C-0 ACCUMULATOR PISTON)
35469E
RING, SNAP (FOR C-0 ACCUMULATOR PISTON SPACER)
35472A
COVER, LOWER VALVE BODY
35474A
COVER, ACCUMULATOR
35477
GASKET, VALVE BODY COVER
35478
GASKET, ACCUMULATOR COVER
35599
COVER, MANUAL DETENT SPRING

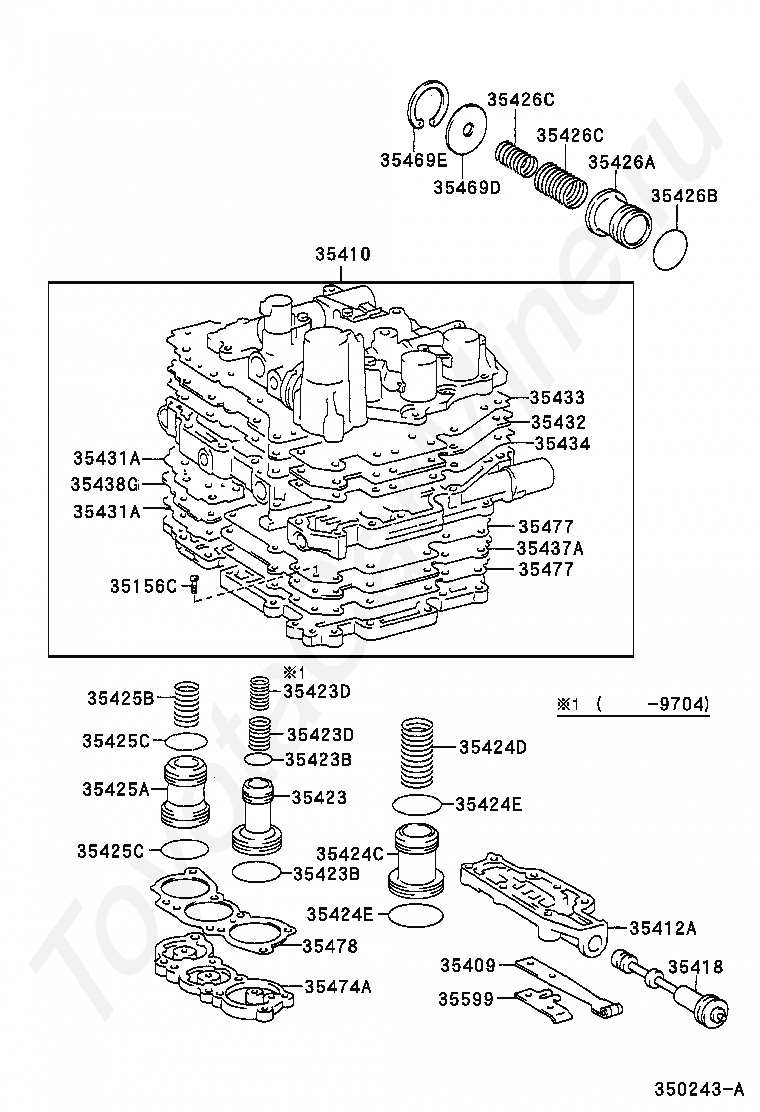

Код
Описание
35156C
SCREW(FOR TRANSMISSION CASE NO.2 PLATE)
35409
SPRING SUB-ASSY, MANUAL DETENT
35410
BODY ASSY, TRANSMISSION VALVE
35412A
BODY, MANUAL VALVE
35418
VALVE, MANUAL
35423
PISTON, B-2 ACCUMULATOR
35423B
RING, O (FOR B-2 ACCUMULATOR PISTON)
35423D
SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)
35424C
PISTON, C-1 ACCUMULATOR
35424D
SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424E
RING, O (FOR C-1 ACCUMULATOR PISTON)
35425A
PISTON, C-2 ACCUMULATOR
35425B
SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425C
RING, O (FOR C-2 ACCUMULATOR PISTON)
35426A
PISTON, C-0 ACCUMULATOR
35426B
RING, O (FOR C-0 ACCUMULATOR PISTON)
35426C
SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
35431A
GASKET, UPPER VALVE BODY COVER
35432
PLATE, VALVE BODY, NO.1
35433
GASKET, VALVE BODY, NO.1
35434
GASKET, VALVE BODY, NO.2
35437A
PLATE, UPPER VALVE BODY COVER
35438G
PLATE, VALVE BODY, NO.2
35469D
SPACER (FOR C-0 ACCUMULATOR PISTON)
35469E
RING, SNAP (FOR C-0 ACCUMULATOR PISTON SPACER)
35474A
COVER, ACCUMULATOR
35477
GASKET, VALVE BODY COVER
35478
GASKET, ACCUMULATOR COVER
35599
COVER, MANUAL DETENT SPRING

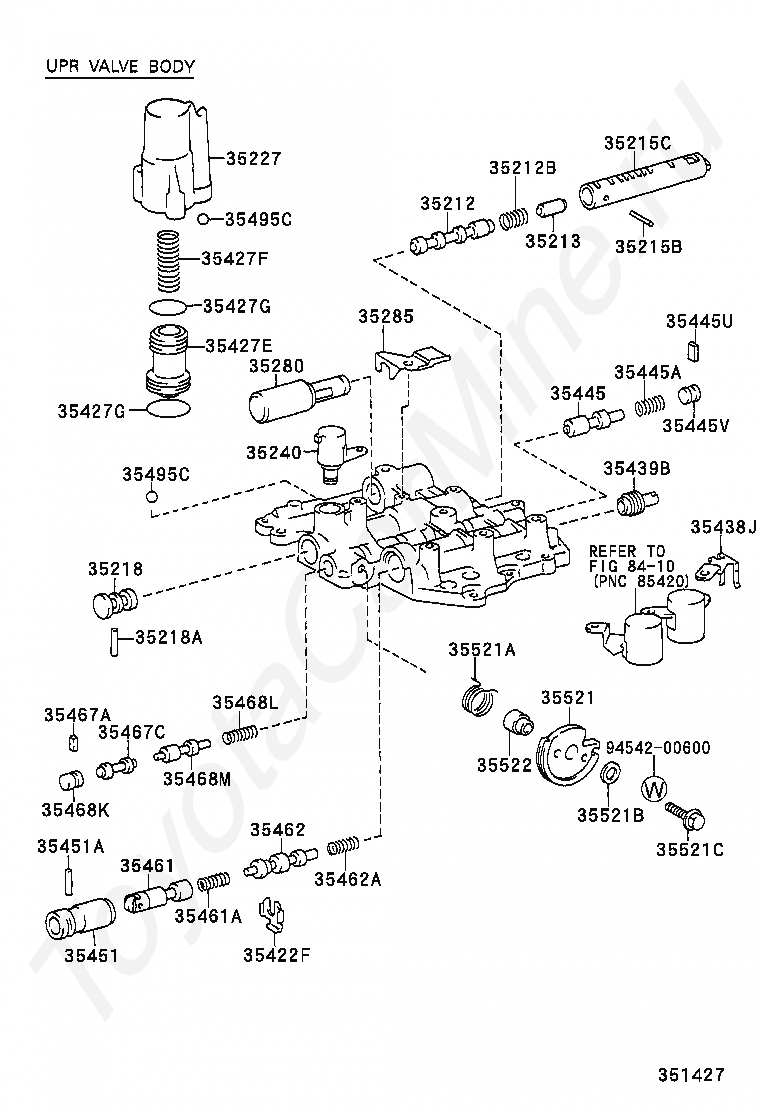

Код
Описание

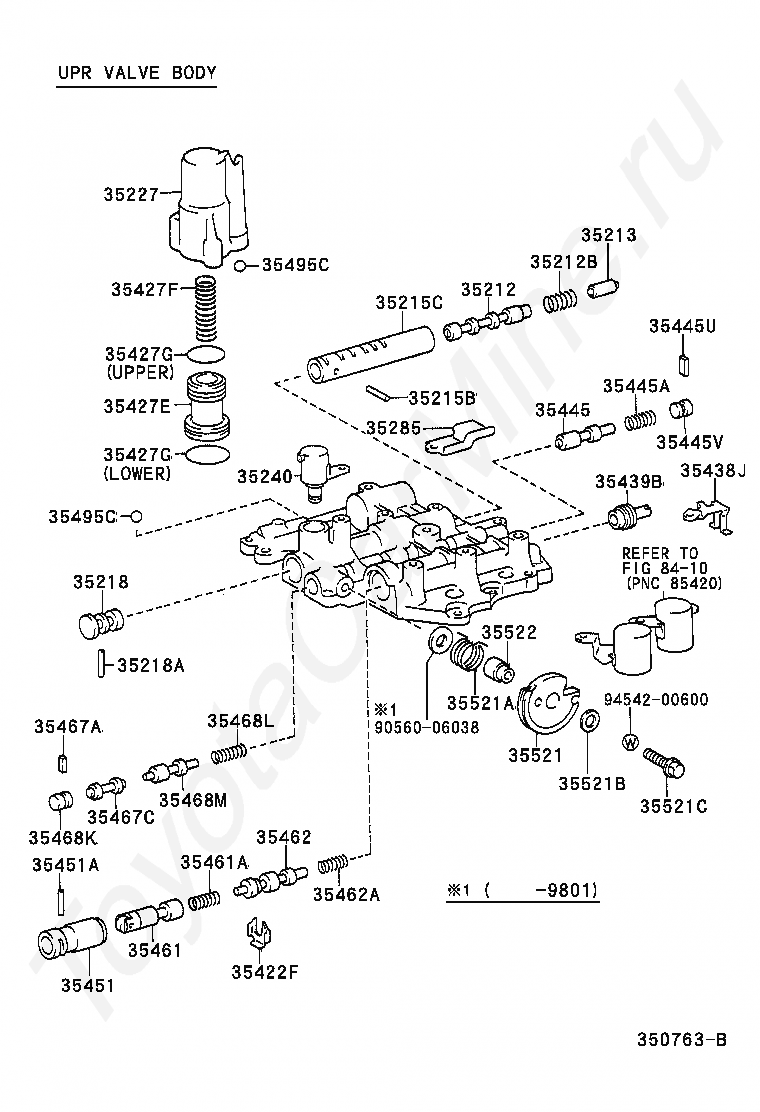

35212
VALVE, LOCK UP RELAY
35212B
SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)
35213
VALVE, LOCK UP RELAY CONTROL
35215B
PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE)
35215C
SLEEVE, LOCK UP RELAY VALVE, NO.1
35218
PLUG, LOCK UP RELAY VALVE
35218A
KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG)
35227
CYLINDER, B-0 ACCUMULATOR
35240
SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35285
PLATE, SOLENOID LOCK
35422F
STOPPER, VALVE VIBRATING
35427E
PISTON, B-0 ACCUMULATOR
35427F
SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
35427G
RING, O (FOR B-0 ACCUMULATOR PISTON)
35438J
SEAT, THROTTLE VALVE SPRING
35439B
SCREW, THROTTLE VALVE
35445
VALVE, LOW MODULATOR
35445A
SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)
35445U
KEY, STRAIGHT (FOR LOW COAST MODULATOR VALVE)
35445V
PLUG (FOR LOW COAST MODULATOR VALVE)
35451
SLEEVE, THROTTLE VALVE
35451A
PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE)
35461
PLUG, DOWN SHIFT
35461A
SPRING, COMPRESSION (FOR DOWN SHIFT PLUG)
35462
VALVE, THROTTLE
35462A
SPRING, COMPRESSION (FOR THROTTLE VALVE)
35467A
KEY, STRAIGHT (FOR INTERMEDIATE SHIFT VALVE)
35467C
PLUNGER, ORIFICE CONTROL VALVE
35468K
PLUG (FOR B-1 ORIFICE CONTROL VALVE)
35468L
SPRING, COMPRESSION (FOR B-1 ORIFICE CONTROL VALVE)
35468M
VALVE, B-1 ORIFICE CONTROL
35495C
BALL, CHECK, NO.1
35521
CAM, THROTTLE VALVE
35521A
SPRING (FOR THROTTLE VALVE CAM RETURN)
35521B
WASHER (FOR THROTTLE VALVE CAM SET)
35521C
BOLT (FOR THROTTLE VALVE CAM SET)
35522
PIN, THROTTLE VALVE CAM
8410
переход к группе запчастей
9056006038
Крепеж
9454200600
Крепеж
Код
Описание
35212
VALVE, LOCK UP RELAY
35212B
SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)
35213
VALVE, LOCK UP RELAY CONTROL
35215B
PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE)
35215C
SLEEVE, LOCK UP RELAY VALVE, NO.1
35218
PLUG, LOCK UP RELAY VALVE
35218A
KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG)
35227
CYLINDER, B-0 ACCUMULATOR
35240
SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35280
SOLENOID ASSY, LOCK UP CONTROL
35285
PLATE, SOLENOID LOCK
35422F
STOPPER, VALVE VIBRATING
35427E
PISTON, B-0 ACCUMULATOR
35427F
SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
35427G
RING, O (FOR B-0 ACCUMULATOR PISTON)
35438J
SEAT, THROTTLE VALVE SPRING
35439B
SCREW, THROTTLE VALVE
35445
VALVE, LOW MODULATOR
35445A
SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)
35445U
KEY, STRAIGHT (FOR LOW COAST MODULATOR VALVE)
35445V
PLUG (FOR LOW COAST MODULATOR VALVE)
35451
SLEEVE, THROTTLE VALVE
35451A
PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE)
35461
PLUG, DOWN SHIFT
35461A
SPRING, COMPRESSION (FOR DOWN SHIFT PLUG)
35462
VALVE, THROTTLE
35462A
SPRING, COMPRESSION (FOR THROTTLE VALVE)
35467A
KEY, STRAIGHT (FOR INTERMEDIATE SHIFT VALVE)
35467C
PLUNGER, ORIFICE CONTROL VALVE
35468K
PLUG (FOR B-1 ORIFICE CONTROL VALVE)
35468L
SPRING, COMPRESSION (FOR B-1 ORIFICE CONTROL VALVE)
35468M
VALVE, B-1 ORIFICE CONTROL
35495C
BALL, CHECK, NO.1
35521
CAM, THROTTLE VALVE
35521A
SPRING (FOR THROTTLE VALVE CAM RETURN)
35521B
WASHER (FOR THROTTLE VALVE CAM SET)
35521C
BOLT (FOR THROTTLE VALVE CAM SET)
35522
PIN, THROTTLE VALVE CAM
8410
переход к группе запчастей
9454200600
Крепеж

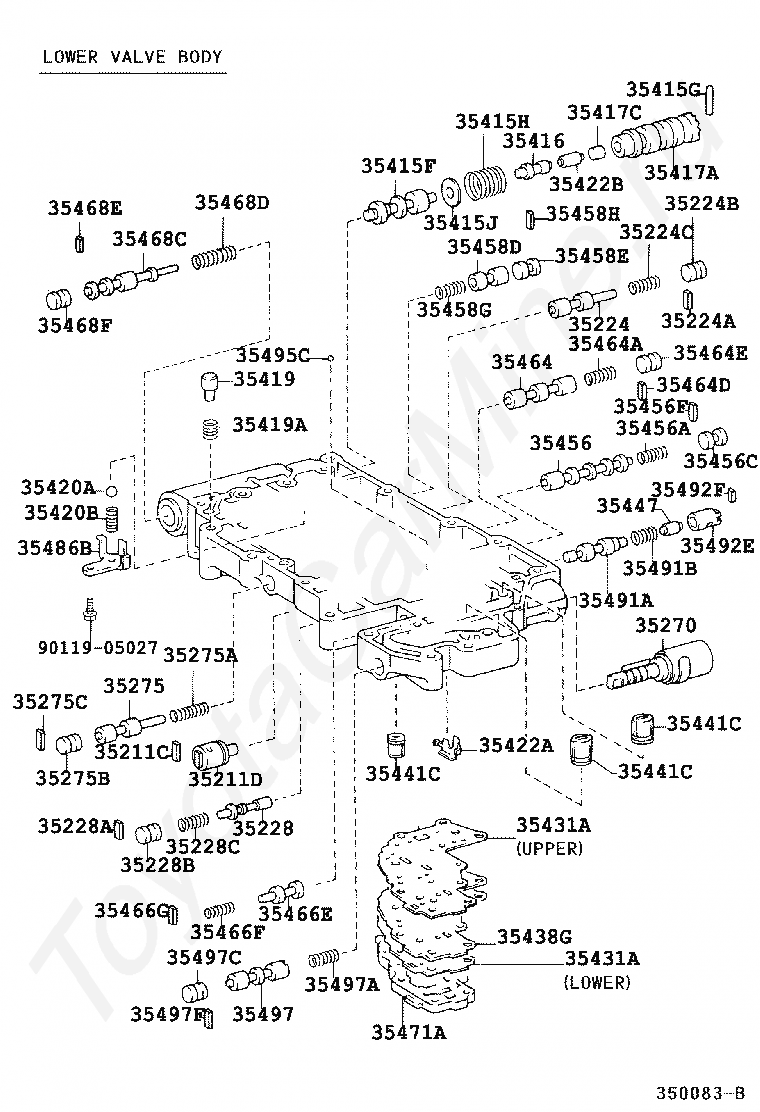

Код
Описание
35211C
KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE)
35211D
SLEEVE, LOCK UP CONTROL VALVE
35224
VALVE, REVERSE CONTROL
35224A
KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)
35224B
PLUG (FOR REVERSE CONTROL VALVE)
35224C
SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)
35228
VALVE, 2ND MODULATOR
35228A
KEY, STRAIGHT (FOR 2ND MODULATOR VALVE)
35228B
PLUG (FOR 2ND MODULATOR VALVE)
35228C
SPRING, COMPRESSION (FOR 2ND MODULATOR VALVE)
35270
SOLENOID ASSY, SHIFT CONTROL
35275
VALVE, SOLENOID MODULATOR
35275A
SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE)
35275B
PLUG (FOR SOLENOID MODULATOR VALVE)
35275C
KEY, STRAIGHT
35415F
VALVE, PRIMARY REGULATOR
35415G
KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE)
35415H
SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)
35415J
WASHER (FOR PRIMARY REGULATOR VALVE)
35416
PLUNGER, PRIMARY REGULATOR VALVE, NO.1
35417A
SLEEVE, PRIMARY REGULATOR VALVE
35417C
PLUG(FOR PRIMARY REGULATOR VALVE)
35419
VALVE, CHECK, NO.1
35419A
SPRING, COMPRESSION (FOR CHECK VALVE)
35420A
BALL (FOR PRESSURE RELIEF)
35420B
SPRING (FOR PRESSURE RELIEF)
35422A
ST0PPER, VALVE VIBRATING
35422B
PLUNGER, PRIMARY REGULATOR VALVE, NO.2
35431A
GASKET, UPPER VALVE BODY COVER
35438G
PLATE, VALVE BODY, NO.2
35441C
STRAINER, SOLENOID OIL
35447
PLUNGER, ACCUMULATOR CONTROL VALVE
35456
VALVE, 2-3 SHIFT
35456A
SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35456C
PLUG (FOR 2-3 SHIFT VALVE)
35456F
KEY, STRAIGHT (FOR 2-3 SHIFT VALVE)
35458D
VALVE, CUT BACK
35458E
PLUG (FOR CUT BACK VALVE)
35458G
SPRING, COMPRESSION (FOR CUT BACK VALVE)
35458H
KEY, STRAIGHT (FOR CUT BACK VALVE)
35464
VALVE, 1-2 SHIFT
35464A
SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
35464D
KEY, STRAIGHT (FOR 1-2 SHIFT VALVE)
35464E
PLUG (FOR 1-2 SHIFT VALVE)
35466E
VALVE, 2ND LOCK
35466F
SPRING, COMPRESSION (FOR 2ND LOCK VALVE)
35466G
KEY, STRAIGHT (FOR 2ND LOCK VALVE)
35468C
VALVE, SECONDARY REGULATOR
35468D
SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
35468E
KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)
35468F
PLUG (FOR SECONDARY REGULATOR VALVE)
35471A
COVER, UPPER VALVE BODY
35486B
SEAT, PRESSURE RELIEF VALVE SPRING
35491A
VALVE, ACCUMULATOR CONTROL, NO.1
35491B
SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492E
SLEEVE, ACCUMULATOR CONTROL VALVE
35492F
KEY, STRAIGHT (FOR COVER DRIVE EXHAUST VALVE)
35495C
BALL, CHECK, NO.1
35497
VALVE, 3-4 SHIFT
35497A
SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)
35497C
PLUG (FOR 3-4 SHIFT VALVE)
35497F
KEY, STRAIGHT (FOR 3-4 SHIFT VALVE)
9011905027
Крепеж

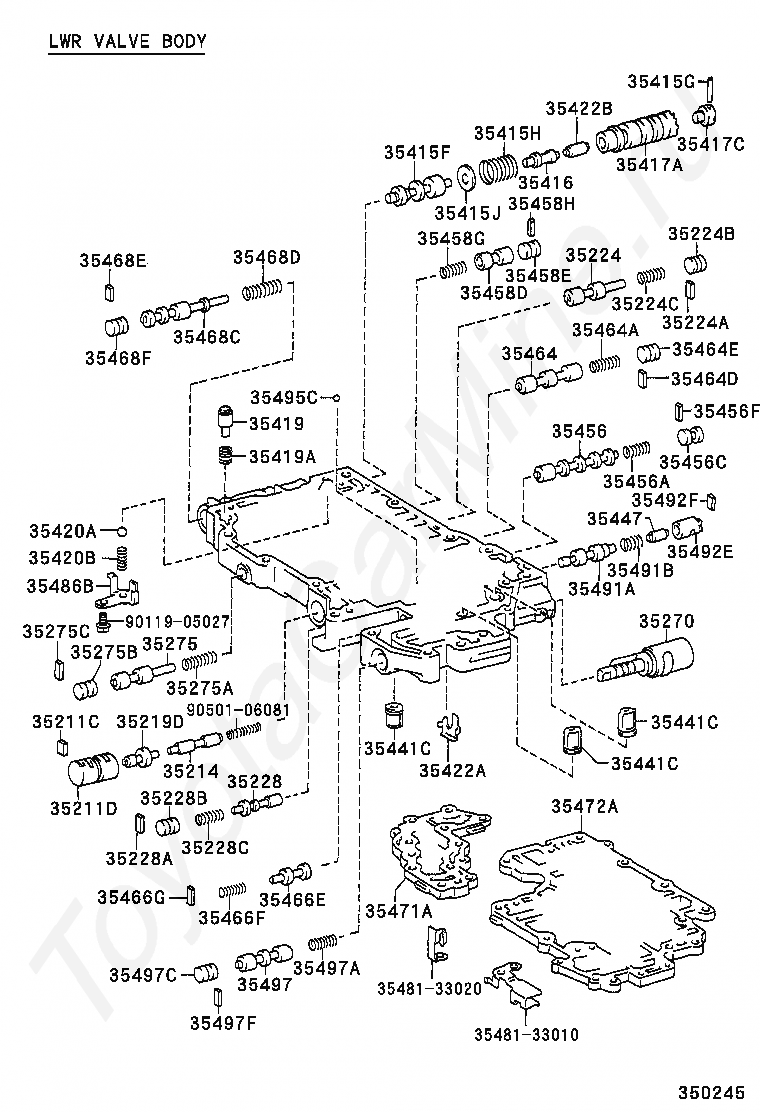

Код
Описание
35211C
KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE)
35211D
SLEEVE, LOCK UP CONTROL VALVE
35214
VALVE, LOCK UP CONTROL
35219D
PLUNGER, LOCK UP CONTROL VALVE
35224
VALVE, REVERSE CONTROL
35224A
KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)
35224B
PLUG (FOR REVERSE CONTROL VALVE)
35224C
SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)
35228
VALVE, 2ND MODULATOR
35228A
KEY, STRAIGHT (FOR 2ND MODULATOR VALVE)
35228B
PLUG (FOR 2ND MODULATOR VALVE)
35228C
SPRING, COMPRESSION (FOR 2ND MODULATOR VALVE)
35270
SOLENOID ASSY, SHIFT CONTROL
35275
VALVE, SOLENOID MODULATOR
35275A
SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE)
35275B
PLUG (FOR SOLENOID MODULATOR VALVE)
35275C
KEY, STRAIGHT
35415F
VALVE, PRIMARY REGULATOR
35415G
KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE)
35415H
SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)
35415J
WASHER (FOR PRIMARY REGULATOR VALVE)
35416
PLUNGER, PRIMARY REGULATOR VALVE, NO.1
35417A
SLEEVE, PRIMARY REGULATOR VALVE
35417C
PLUG(FOR PRIMARY REGULATOR VALVE)
35419
VALVE, CHECK, NO.1
35419A
SPRING, COMPRESSION (FOR CHECK VALVE)
35420A
BALL (FOR PRESSURE RELIEF)
35420B
SPRING (FOR PRESSURE RELIEF)
35422A
ST0PPER, VALVE VIBRATING
35422B
PLUNGER, PRIMARY REGULATOR VALVE, NO.2
35441C
STRAINER, SOLENOID OIL
35447
PLUNGER, ACCUMULATOR CONTROL VALVE
35456
VALVE, 2-3 SHIFT
35456A
SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35456C
PLUG (FOR 2-3 SHIFT VALVE)
35456F
KEY, STRAIGHT (FOR 2-3 SHIFT VALVE)
35458D
VALVE, CUT BACK
35458E
PLUG (FOR CUT BACK VALVE)
35458G
SPRING, COMPRESSION (FOR CUT BACK VALVE)
35458H
KEY, STRAIGHT (FOR CUT BACK VALVE)
35464
VALVE, 1-2 SHIFT
35464A
SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
35464D
KEY, STRAIGHT (FOR 1-2 SHIFT VALVE)
35464E
PLUG (FOR 1-2 SHIFT VALVE)
35466E
VALVE, 2ND LOCK
35466F
SPRING, COMPRESSION (FOR 2ND LOCK VALVE)
35466G
KEY, STRAIGHT (FOR 2ND LOCK VALVE)
35468C
VALVE, SECONDARY REGULATOR
35468D
SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
35468E
KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)
35468F
PLUG (FOR SECONDARY REGULATOR VALVE)
35471A
COVER, UPPER VALVE BODY
35472A
COVER, LOWER VALVE BODY
3548133010
Крепеж
3548133020
Крепеж
35486B
SEAT, PRESSURE RELIEF VALVE SPRING
35491A
VALVE, ACCUMULATOR CONTROL, NO.1
35491B
SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492E
SLEEVE, ACCUMULATOR CONTROL VALVE
35492F
KEY, STRAIGHT (FOR COVER DRIVE EXHAUST VALVE)
35495C
BALL, CHECK, NO.1
35497
VALVE, 3-4 SHIFT
35497A
SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)
35497C
PLUG (FOR 3-4 SHIFT VALVE)
35497F
KEY, STRAIGHT (FOR 3-4 SHIFT VALVE)
9011905027
Крепеж
9050106081
Крепеж
Код
Описание

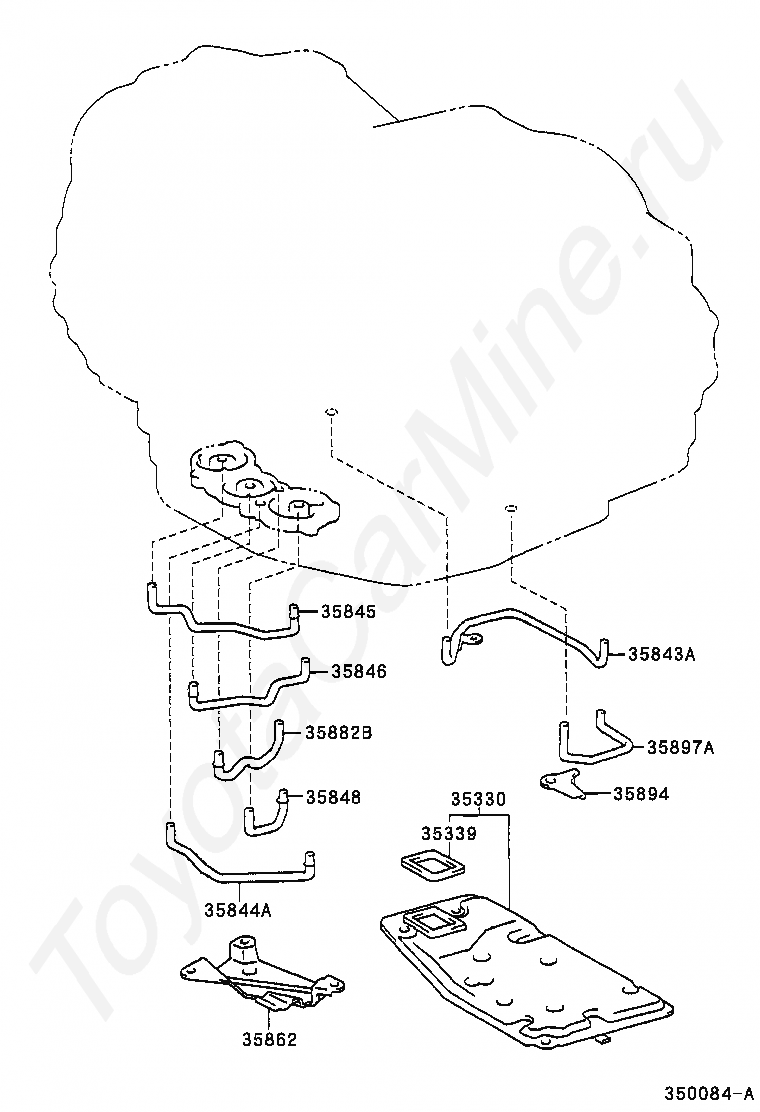

35330
STRAINER ASSY, VALVE BODY OIL
35339
GASKET, OIL STRAINER
35843A
TUBE, TRANSFER LUBRICATION APPLY
35844A
TUBE, ACCUMULATOR BACK PRESSURE, NO.1
35845
TUBE, RR CLUTCH ACCUMULATOR
35846
TUBE, BRAKE ACCUMULATOR
35848
TUBE, FORWARD CLUTCH ACCUMULATOR
35862
BRACKET, ACCUMULATOR APPLY TUBE
35882B
TUBE, REAR SERVO APPLY
35894
SUPPORT, ACCUMULATOR TUBE
35897A
TUBE, 1ST & REVERSE BRAKE, NO.1
Код
Описание

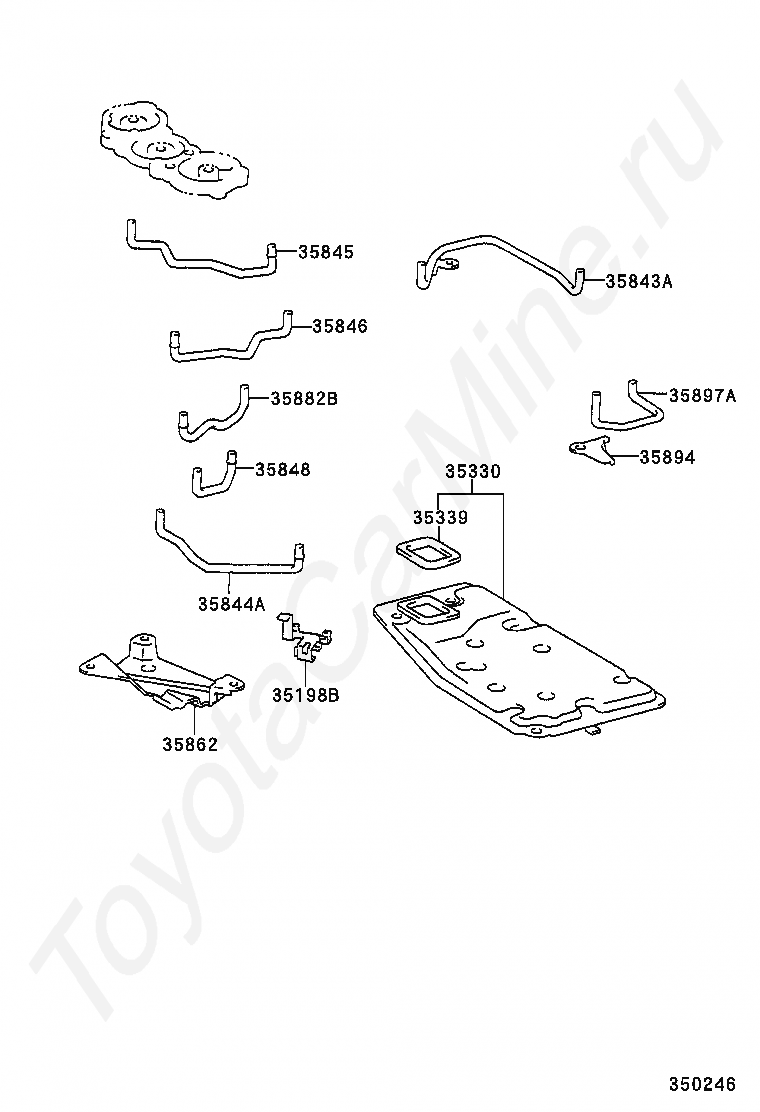

35198B
BRACKET, WIRE HARNESS CLAMP
35330
STRAINER ASSY, VALVE BODY OIL
35339
GASKET, OIL STRAINER
35843A
TUBE, TRANSFER LUBRICATION APPLY
35844A
TUBE, ACCUMULATOR BACK PRESSURE, NO.1
35845
TUBE, RR CLUTCH ACCUMULATOR
35846
TUBE, BRAKE ACCUMULATOR
35848
TUBE, FORWARD CLUTCH ACCUMULATOR
35862
BRACKET, ACCUMULATOR APPLY TUBE
35882B
TUBE, REAR SERVO APPLY
35894
SUPPORT, ACCUMULATOR TUBE
35897A
TUBE, 1ST & REVERSE BRAKE, NO.1
Код
Описание

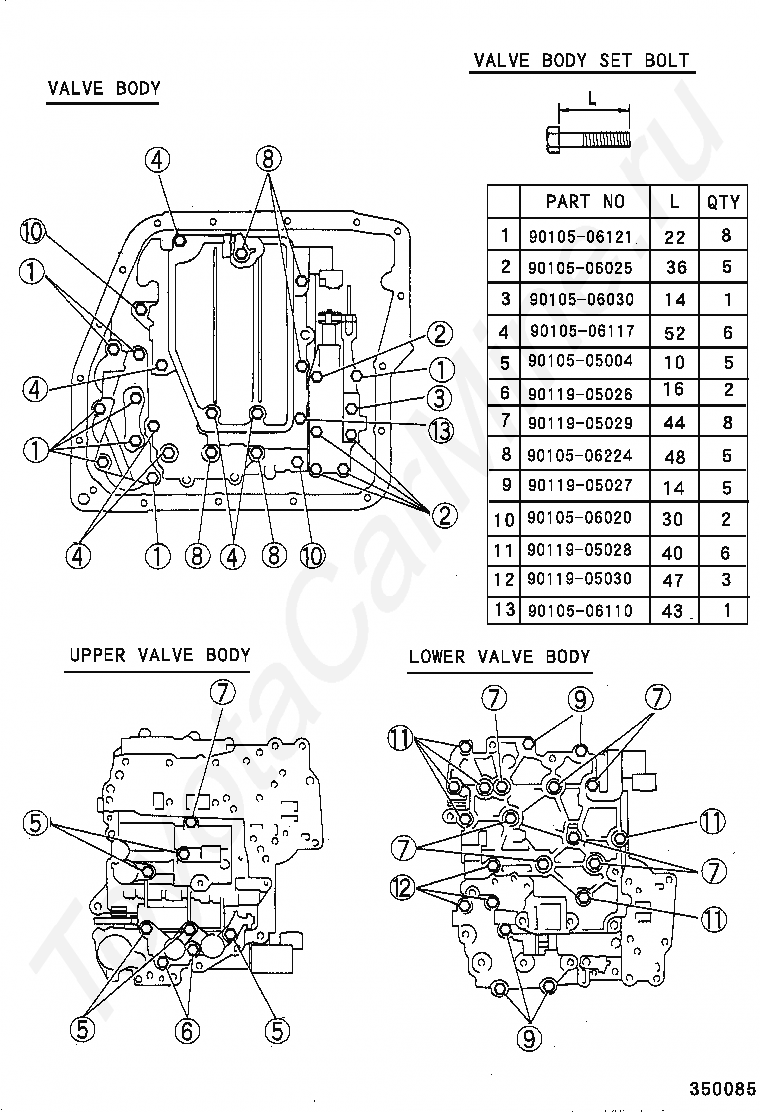

9010505004
Крепеж
9010506020
Крепеж
9010506025
Крепеж
9010506030
Крепеж
9010506110
Крепеж
9010506117
Крепеж
9010506121
Крепеж
9010506224
Крепеж
9011905026
Крепеж
9011905027
Крепеж
9011905028
Крепеж
9011905029
Крепеж
9011905030
Крепеж
Наш менеджер перезвонит в ближайшее время
