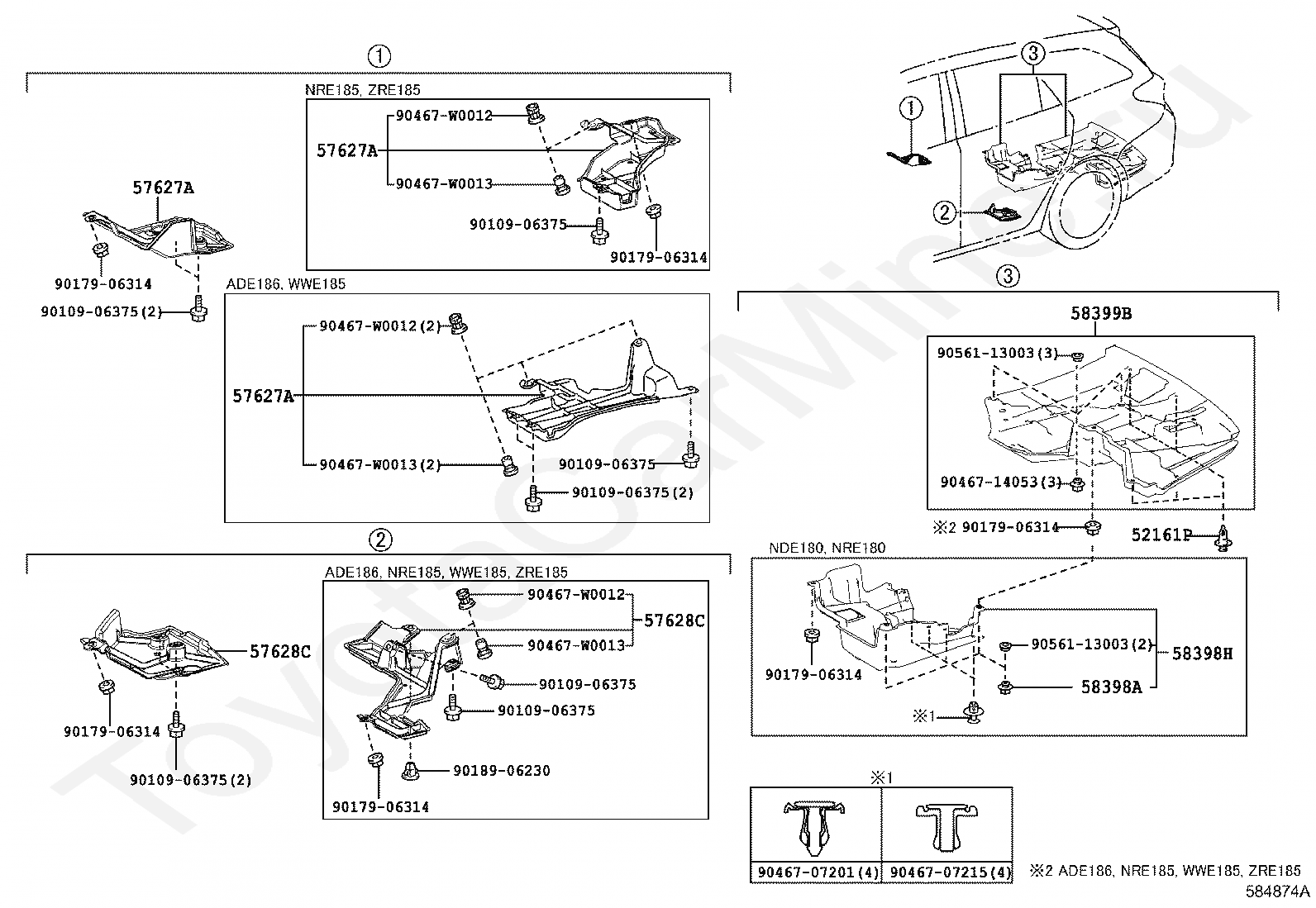

FLOOR PAN & LOWER BACK PANEL TOYOTA AURIS/HYBRID (UKP), 2015/05 - 2025, 1,2 литра, 16 клапанов, DOHC, D4, фургон, NRE185, вариатор

Каталог

Европа

Модель

AURIS/HYBRID (UKP)

Двигатель

1,2 литра, 16 клапанов, DOHC, D4

Кузов

фургон

Фрейм

NRE185

Трансмиссия

вариатор

Опции

левый руль 5 дверей WITH TURBO (HARGER) S TYPE 635W

Код

Описание

52581F

PROTECTOR, REAR BUMPER

55129C

COVER, DASH PANEL HOLE

5701

переход к группе запчастей

57043A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

57044A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57053

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH

57054A

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH

57407C

MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

57501C

BRACE SUB-ASSY, FRONT FLOOR, CENTER

57509

REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

57531

BRACKET, FRONT FLOOR CENTER BRACE, RH

57532

BRACKET, FRONT FLOOR CENTER BRACE, LH

58015A

REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

58016A

REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

58111A

PAN, FRONT FLOOR, RH

58112C

PAN, FRONT FLOOR, LH

58113A

PANEL, FRONT FLOOR, CENTER

58136A

COVER, FRONT FLOOR SERVICE HOLE

58171

REINFORCEMENT, PARKING BRAKE BASE

58173D

BRACKET, COMPUTER MOUNTING, NO.4

58175A

REINFORCEMENT, PARKING BRAKE BASE, NO.1

58176C

REINFORCEMENT, PARKING BRAKE BASE, NO.2

58211H

PAN, CENTER FLOOR

58233

BRACKET, EXHAUST PIPE MOUNTING

58247A

REINFORCEMENT, REAR SEAT CUSHION HINGE, RH

58248A

REINFORCEMENT, REAR SEAT CUSHION HINGE, LH

58251C

BRACE, FLOOR PANEL, FRONT RH

58252B

BRACE, FLOOR PANEL, FRONT LH

58253D

BRACKET, PARKING BRAKE CABLE

58305F

PANEL SUB-ASSY, REAR FLOOR SIDE, RH

58306F

PANEL SUB-ASSY, REAR FLOOR SIDE, LH

58307

PANEL SUB-ASSY, BODY LOWER BACK

58311

PAN, REAR FLOOR

58313

PANEL, REAR FLOOR SIDE, RH

58314

PANEL, REAR FLOOR SIDE, LH

58325E

COVER, REAR FLOOR SERVICE HOLE

58336B

REINFORCEMENT, REAR FLOOR PAN

58351A

BRACKET, SPARE WHEEL CARRIER

58375D

REINFORCEMENT, BODY LOWER BACK PANEL, RH

58376D

REINFORCEMENT, BODY LOWER BACK, LH

58379G

PAD, BODY LOWER BACK

58383E

REINFORCEMENT, BODY LOWER BACK, NO.2 RH

58384C

REINFORCEMENT, BODY LOWER BACK, NO.2 LH

58386B

BRACKET, REAR BUMPER COVER, NO.2

58396A

BRACKET, WIRE HARNESS CLAMP

58556E

SILENCER, REAR FLOOR, NO.1

90105W0049

Крепеж

90105W0058

Крепеж

9011506281

Крепеж

90115W0008

Крепеж

90115W0010

Крепеж

9011908A12

Крепеж

90119W0202

Крепеж

9029703004

Крепеж

9029703007

Крепеж

Код

Описание

58165B

COVER, FRONT FLOOR, RH

58166

COVER, FRONT FLOOR, LH

58167C

COVER, FRONT FLOOR, CENTER RH

58167F

CLIP, NO.1(FOR FLOOR UNDER COVER)

58167G

CLIP, NO.2(FOR FLOOR UNDER COVER)

58168B

CLIP, NO.1(FOR FLOOR UNDER COVER)

58168C

COVER, FRONT FLOOR, CENTER LH

58168E

CLIP, NO.2(FOR FLOOR UNDER COVER)

58399E

CLIP, NO.1(FOR FLOOR UNDER COVER)

58399F

CLIP, NO.2(FOR FLOOR UNDER COVER)

9010908252

Крепеж

9046707214

Крепеж

Код

Описание

52161P

PIECE, REAR BUMPER

57627A

COVER, REAR FLOOR SIDE MEMBER, RH

57628C

COVER, REAR FLOOR SIDE MEMBER, LH

58398A

CLIP, NO.3(FOR FLOOR UNDER COVER)

58398H

COVER, FLOOR UNDER, NO.1

58399B

COVER, FLOOR UNDER, NO.2

9010906375

Крепеж

9017906314

Крепеж

9018906230

Крепеж

9046707201

Крепеж

9046707215

Крепеж

9046714053

Крепеж

90467W0012

Крепеж

90467W0013

Крепеж

9056113003

Крепеж
