> Запчасти AQUA > Поиск по каталогу
Запчасти
Аксессуары
Масло
Расходники
Каталог
Шины, диски

Фары TOYOTA AQUA, 2017/06 - 2024, 1,5 литра, 16 клапанов DOHC, EFI, седан, GRAMS, NHP10, вариатор

Каталог

Япония

Модель

AQUA

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Кузов

седан

Класс

GRAMS

Фрейм

NHP10

Трансмиссия

вариатор

Опции

5 дверей 697W
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

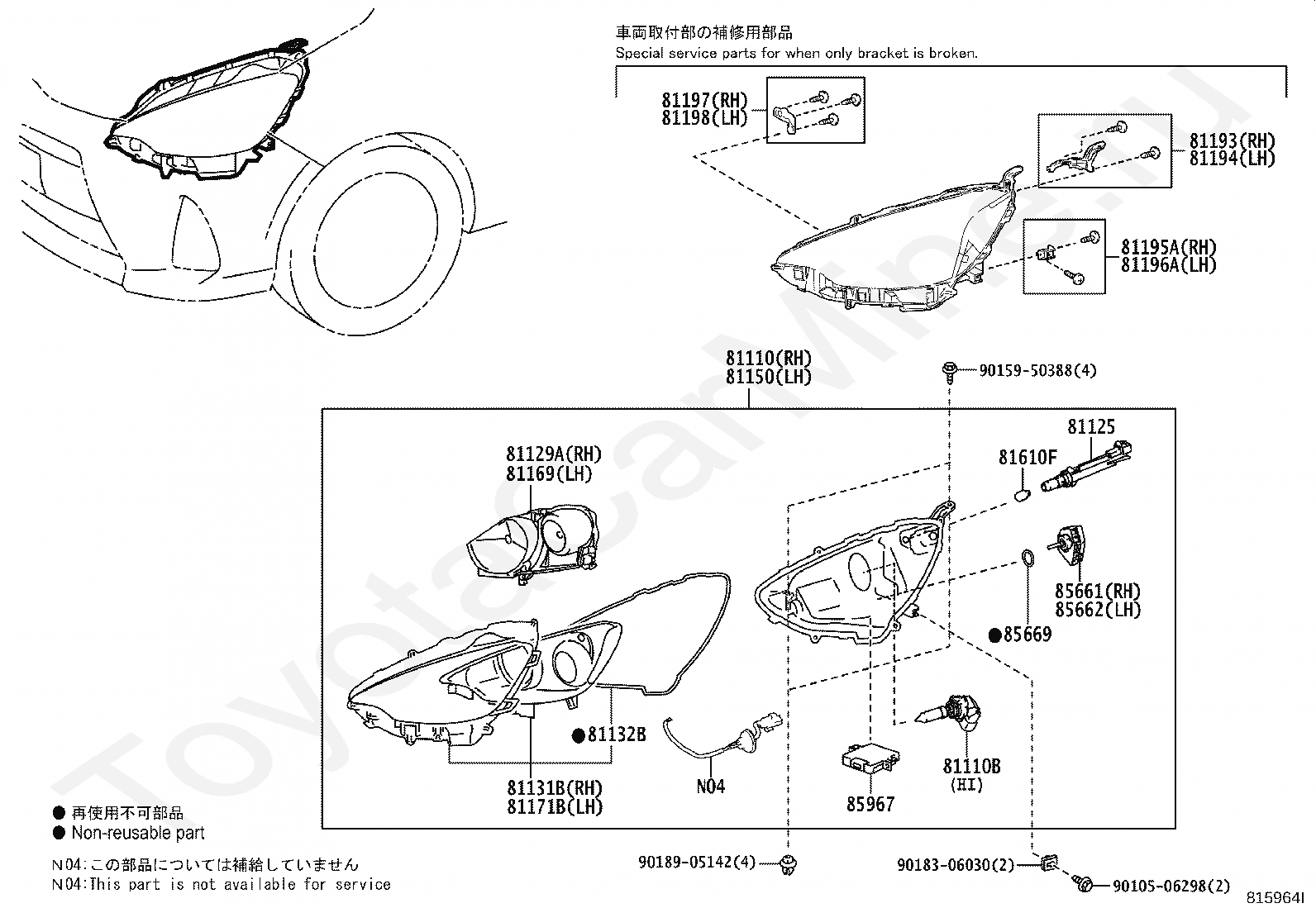

Код

Описание

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81125

CORD, HEADLAMP

81131B

HEAD LAMP LENS, RH

81132B

GASKET, HEADLAMP LENS

81150

HEADLAMP ASSY, LH

81171B

HEAD LAMP LENS, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81610F

BULB(FOR CLEARANCE LAMP)

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9010506298

Крепеж

9015950388

Крепеж

9018306030

Крепеж

9018905142

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

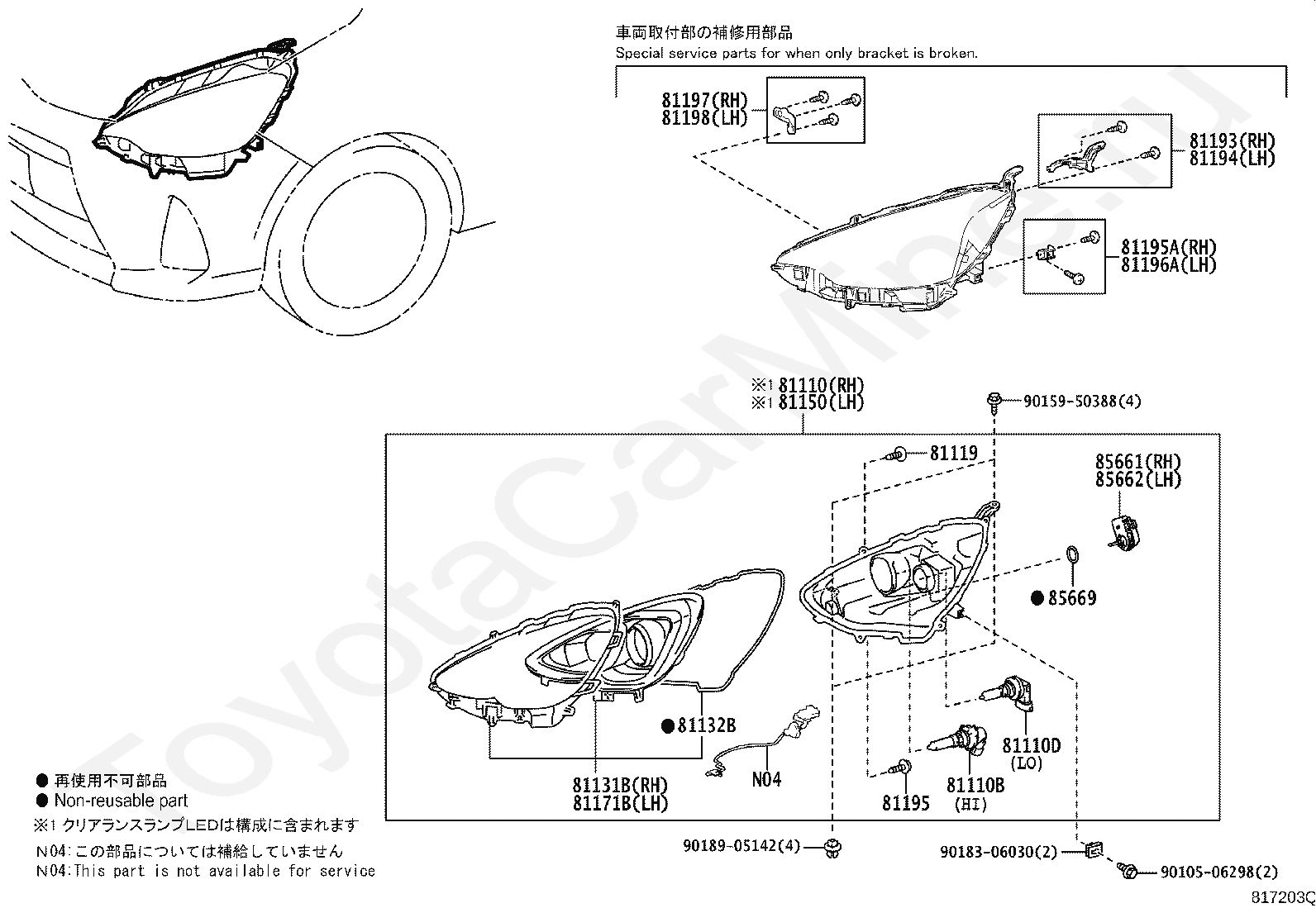

Код

Описание

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81125

CORD, HEADLAMP

81129A

REFLECTOR, HEADLAMP, RH

81131B

HEAD LAMP LENS, RH

81132B

GASKET, HEADLAMP LENS

81150

HEADLAMP ASSY, LH

81169

REFLECTOR, HEADLAMP, LH

81171B

HEAD LAMP LENS, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81610F

BULB(FOR CLEARANCE LAMP)

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

85967

COMPUTER, LIGHT CONTROL

9010506298

Крепеж

9015950388

Крепеж

9018306030

Крепеж

9018905142

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

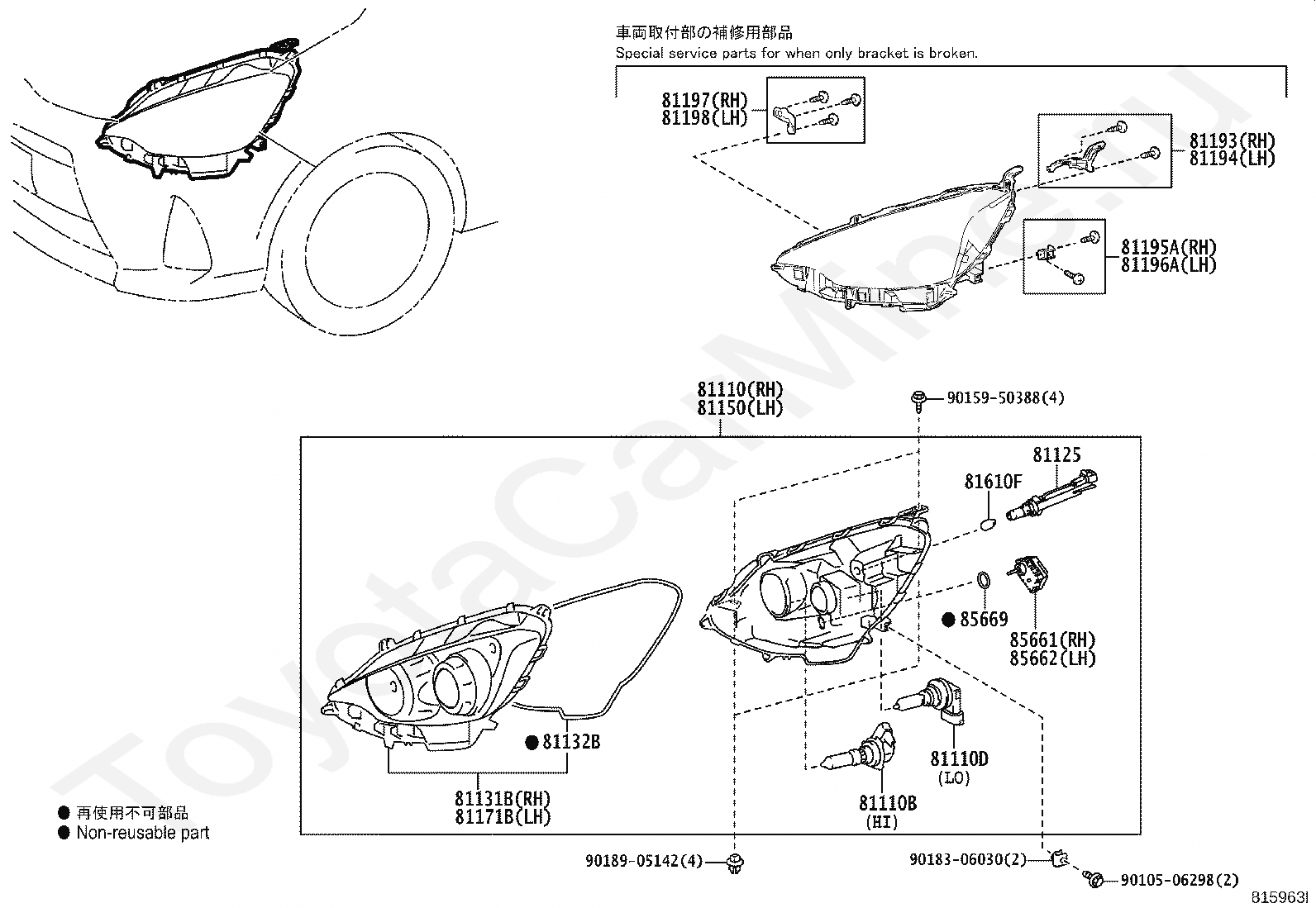

Код

Описание

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81119

SCREW, HEADLAMP

81131B

HEAD LAMP LENS, RH

81132B

GASKET, HEADLAMP LENS

81150

HEADLAMP ASSY, LH

81171B

HEAD LAMP LENS, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195

SCREW, HEADLAMP

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9010506298

Крепеж

9015950388

Крепеж

9018306030

Крепеж

9018905142

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

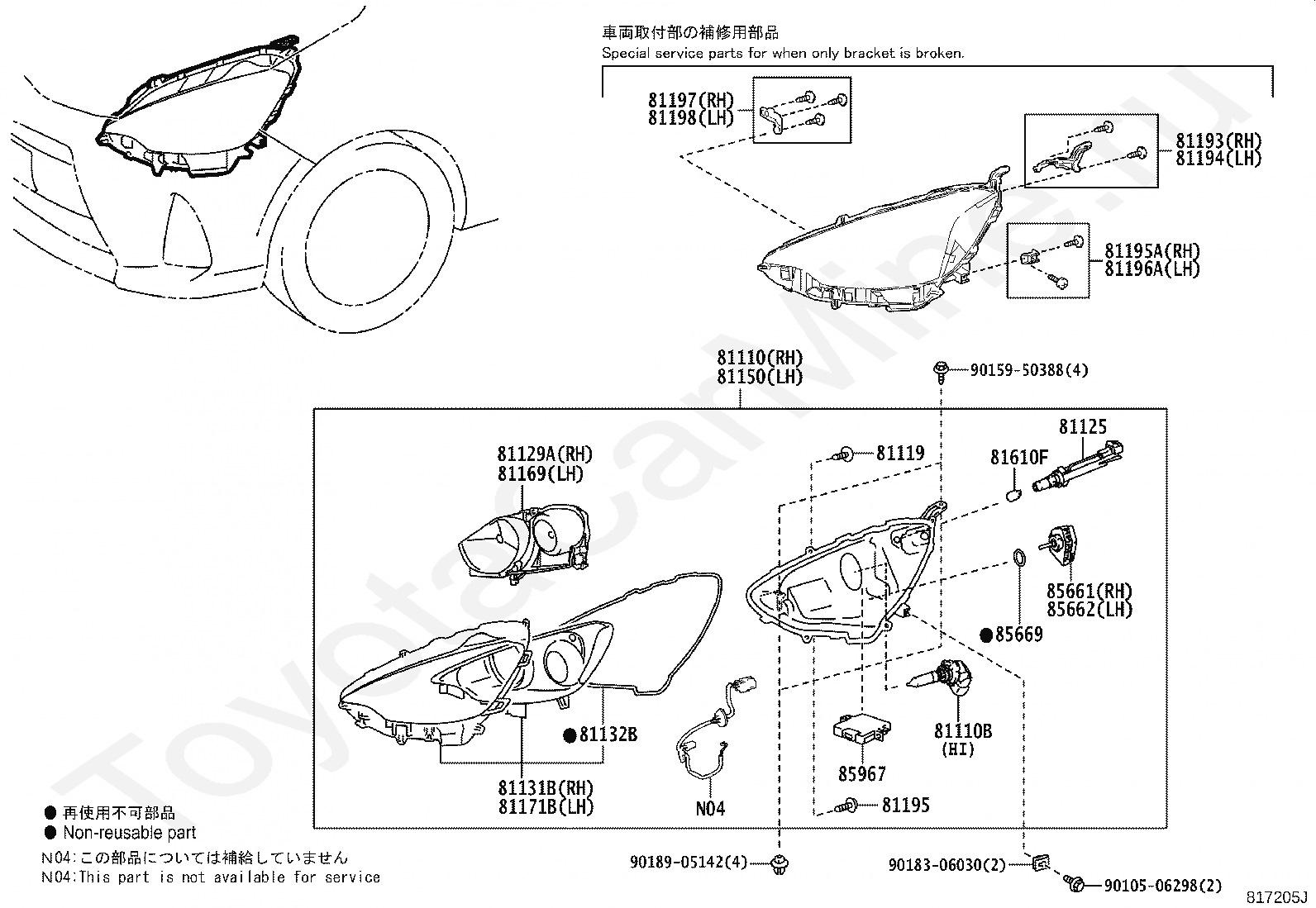

Код

Описание

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81119

SCREW, HEADLAMP

81125

CORD, HEADLAMP

81129A

REFLECTOR, HEADLAMP, RH

81131B

HEAD LAMP LENS, RH

81132B

GASKET, HEADLAMP LENS

81150

HEADLAMP ASSY, LH

81169

REFLECTOR, HEADLAMP, LH

81171B

HEAD LAMP LENS, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195

SCREW, HEADLAMP

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81610F

BULB(FOR CLEARANCE LAMP)

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

85967

COMPUTER, LIGHT CONTROL

9010506298

Крепеж

9015950388

Крепеж

9018306030

Крепеж

9018905142

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

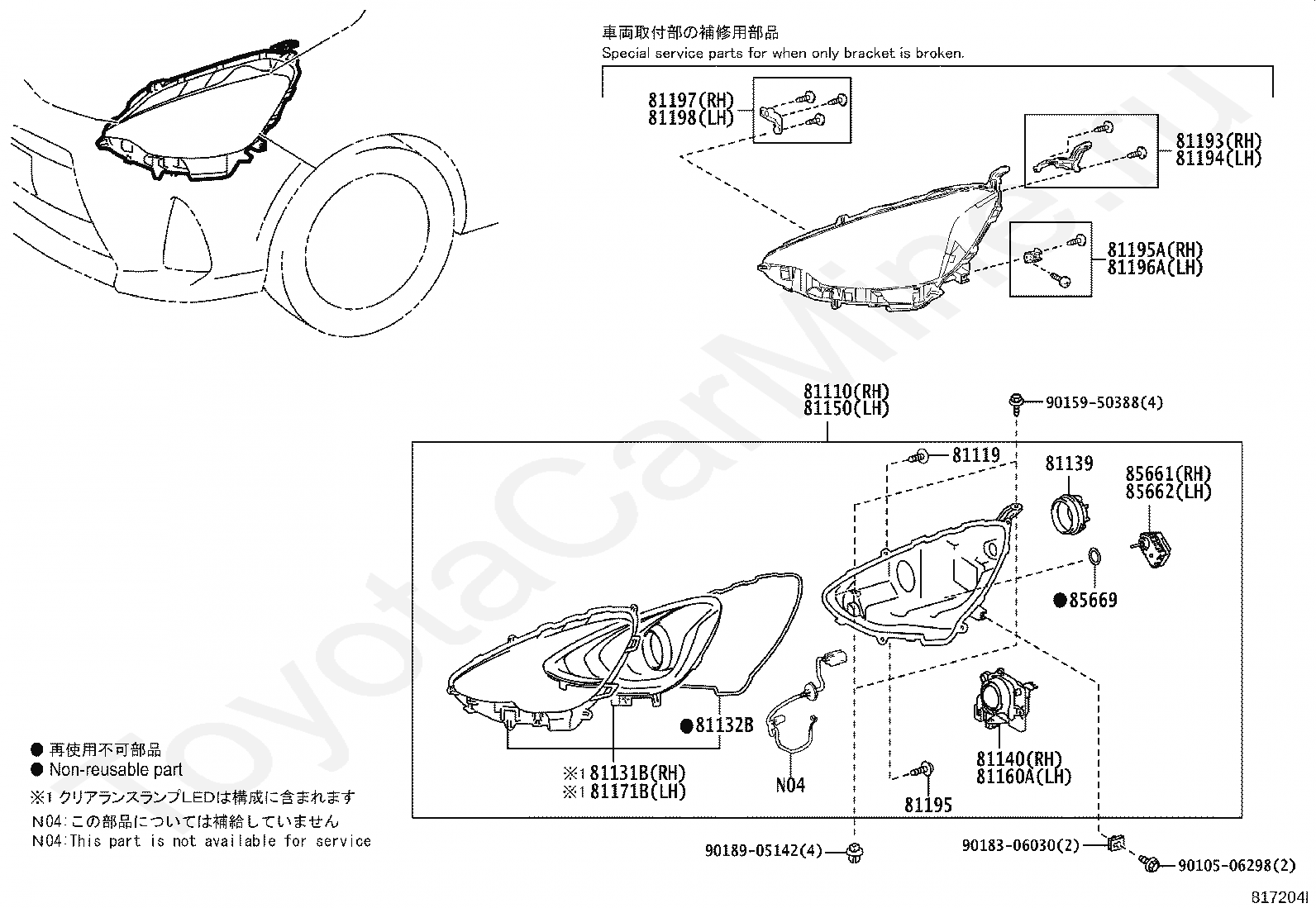

Код

Описание

81110

HEADLAMP ASSY, RH

81119

SCREW, HEADLAMP

81131B

HEAD LAMP LENS, RH

81132B

GASKET, HEADLAMP LENS

81139

COVER, HEADLAMP SOCKET

81140

UNIT ASSY, HEADLAMP LED, RH

81150

HEADLAMP ASSY, LH

81160A

UNIT ASSY, HEADLAMP LED, LH

81171B

HEAD LAMP LENS, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195

SCREW, HEADLAMP

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9010506298

Крепеж

9015950388

Крепеж

9018306030

Крепеж

9018905142

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

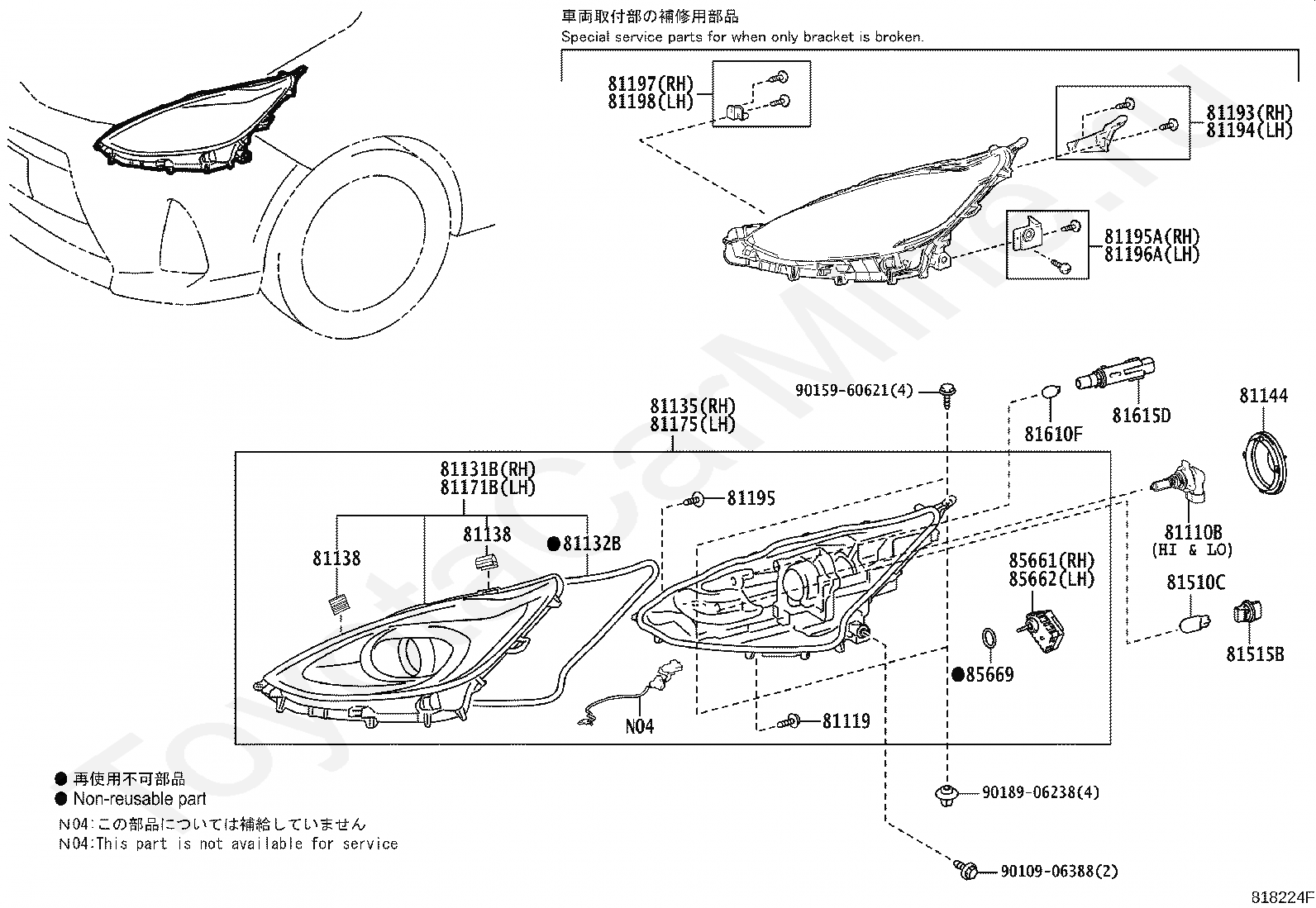

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81119

SCREW, HEADLAMP

81131B

HEAD LAMP LENS, RH

81132B

GASKET, HEADLAMP LENS

81135

UNIT ASSY, HEADLAMP, RH

81138

SPRING, HEADLAMP

81144

COVER, HEADLAMP, NO.1

81171B

HEAD LAMP LENS, LH

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195

SCREW, HEADLAMP

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9010906388

Крепеж

9015960621

Крепеж

9018906238

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

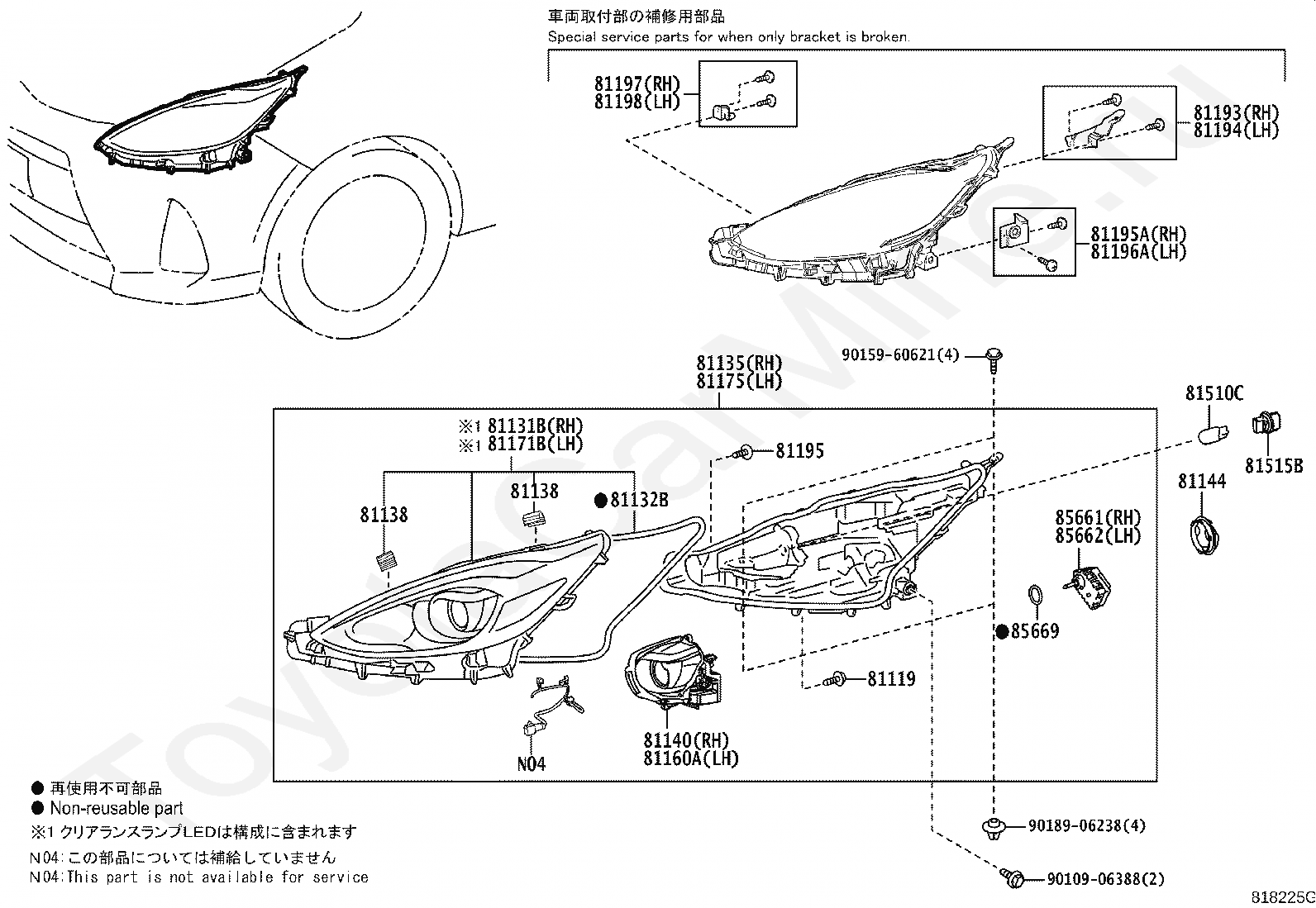

Код

Описание

81119

SCREW, HEADLAMP

81131B

HEAD LAMP LENS, RH

81132B

GASKET, HEADLAMP LENS

81135

UNIT ASSY, HEADLAMP, RH

81138

SPRING, HEADLAMP

81140

UNIT ASSY, HEADLAMP LED, RH

81144

COVER, HEADLAMP, NO.1

81160A

UNIT ASSY, HEADLAMP LED, LH

81171B

HEAD LAMP LENS, LH

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195

SCREW, HEADLAMP

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9010906388

Крепеж

9015960621

Крепеж

9018906238

Крепеж
