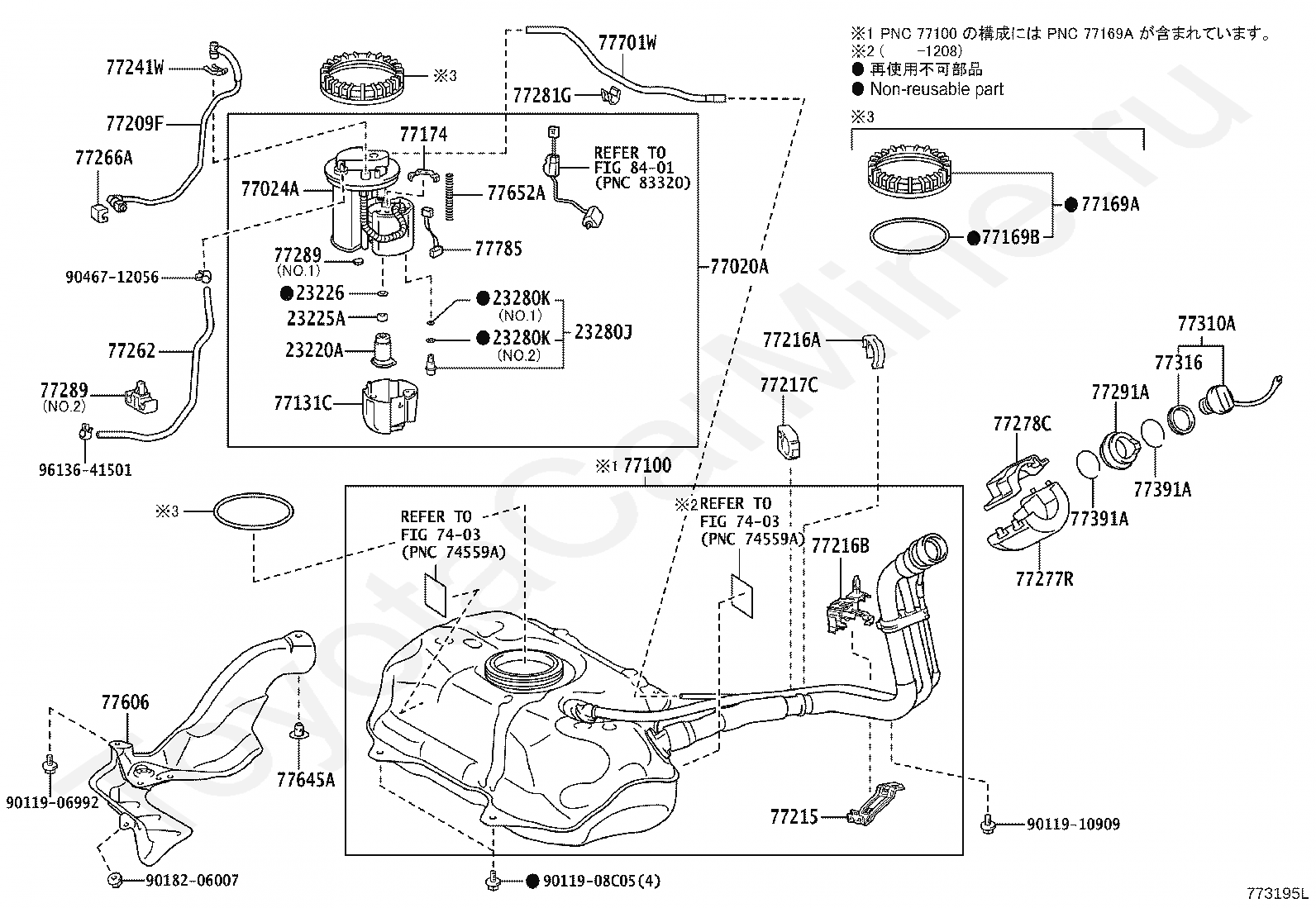

Топливный бак и горловина TOYOTA AQUA, 2017/06 - 2024, 1,5 литра, 16 клапанов DOHC, EFI, седан, GRAMS, NHP10, вариатор

Каталог

Япония

Модель

AQUA

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Кузов

седан

Класс

GRAMS

Фрейм

NHP10

Трансмиссия

вариатор

Опции

5 дверей 697W

Код

Описание

23220A

PUMP ASSY, FUEL W/FILTER

23225A

SPACER, FUEL PUMP

23226

RING, O(FOR FUEL PUMP)

23280J

REGULATOR ASSY, FUEL PRESSURE

23280K

RING, O(FOR FUEL PRESSURE REGULATOR)

7403

переход к группе запчастей

77020A

TUBE ASSY, FUEL SUCTION W/PUMP & GAGE

77024A

PLATE SUB-ASSY, FUEL SUCTION

77100

TANK ASSY, FUEL

77131C

SUB-TANK, FUEL, NO.1

77169A

GASKET, FUEL SUCTION TUBE SET

77169B

GASKET, FUEL SUCTION TUBE SET, NO.1

77174

SUPPORT, FUEL SUCTION, NO.1

77209F

TUBE SUB-ASSY, FUEL TANK MAIN

77215

PLATE, FUEL TANK FILLER PIPE FLANGE

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77216B

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77217C

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77241W

CLIP, TUBE JOINT

77262

TUBE, FUEL EMISSION, NO.2

77266A

PROTECTOR, FUEL TUBE, NO.1

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77278C

PROTECTOR, FUEL TANK FILLER PIPE, NO.2

77281G

CLAMP, FUEL HOSE

77289

HOLDER, FUEL TANK PIPE SETTING

77291A

SHIELD, FUEL TANK FILLER PIPE

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77391A

RING, FUEL INLET BOX

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77645A

RETAINER, FUEL TANK PROTECTOR

77652A

CUSHION, FUEL TANK, NO.2

77701W

HOSE SUB-ASSY, CANISTER OUTLET, NO.1

77785

HARNESS, FUEL PUMP

8401

переход к группе запчастей

9011906992

Крепеж

9011908C05

Крепеж

9011910909

Крепеж

9018206007

Крепеж

9046712056

Крепеж

9613641501

Крепеж

Код

Описание

23221

PUMP, FUEL

23225A

SPACER, FUEL PUMP

23226

RING, O(FOR FUEL PUMP)

23280J

REGULATOR ASSY, FUEL PRESSURE

23280K

RING, O(FOR FUEL PRESSURE REGULATOR)

7403

переход к группе запчастей

77020A

TUBE ASSY, FUEL SUCTION W/PUMP & GAGE

77024A

PLATE SUB-ASSY, FUEL SUCTION

77100

TANK ASSY, FUEL

77131C

SUB-TANK, FUEL, NO.1

77169A

GASKET, FUEL SUCTION TUBE SET

77169B

GASKET, FUEL SUCTION TUBE SET, NO.1

77175

SUPPORT, FUEL SUCTION, NO.2

77209F

TUBE SUB-ASSY, FUEL TANK MAIN

77215

PLATE, FUEL TANK FILLER PIPE FLANGE

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77216B

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77217C

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77241W

CLIP, TUBE JOINT

77262

TUBE, FUEL EMISSION, NO.2

77266A

PROTECTOR, FUEL TUBE, NO.1

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77278C

PROTECTOR, FUEL TANK FILLER PIPE, NO.2

77281G

CLAMP, FUEL HOSE

77289

HOLDER, FUEL TANK PIPE SETTING

77291A

SHIELD, FUEL TANK FILLER PIPE

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77391A

RING, FUEL INLET BOX

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77645A

RETAINER, FUEL TANK PROTECTOR

77701W

HOSE SUB-ASSY, CANISTER OUTLET, NO.1

77785

HARNESS, FUEL PUMP

8401

переход к группе запчастей

9011906992

Крепеж

9011908C05

Крепеж

9011910909

Крепеж

9018206007

Крепеж

9046712056

Крепеж

9613641501

Крепеж

Код

Описание

23221

PUMP, FUEL

23225A

SPACER, FUEL PUMP

23226

RING, O(FOR FUEL PUMP)

23280J

REGULATOR ASSY, FUEL PRESSURE

23280K

RING, O(FOR FUEL PRESSURE REGULATOR)

7403

переход к группе запчастей

77020A

TUBE ASSY, FUEL SUCTION W/PUMP & GAGE

77024A

PLATE SUB-ASSY, FUEL SUCTION

77100

TANK ASSY, FUEL

77131C

SUB-TANK, FUEL, NO.1

77169A

GASKET, FUEL SUCTION TUBE SET

77169B

GASKET, FUEL SUCTION TUBE SET, NO.1

77175

SUPPORT, FUEL SUCTION, NO.2

77209F

TUBE SUB-ASSY, FUEL TANK MAIN

77215

PLATE, FUEL TANK FILLER PIPE FLANGE

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77216B

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77217C

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77241W

CLIP, TUBE JOINT

77262

TUBE, FUEL EMISSION, NO.2

77266A

PROTECTOR, FUEL TUBE, NO.1

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77278C

PROTECTOR, FUEL TANK FILLER PIPE, NO.2

77281G

CLAMP, FUEL HOSE

77289

HOLDER, FUEL TANK PIPE SETTING

77291A

SHIELD, FUEL TANK FILLER PIPE

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77391A

RING, FUEL INLET BOX

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77645A

RETAINER, FUEL TANK PROTECTOR

77701W

HOSE SUB-ASSY, CANISTER OUTLET, NO.1

77785

HARNESS, FUEL PUMP

8401

переход к группе запчастей

9011906992

Крепеж

9011908C05

Крепеж

9011910909

Крепеж

9018206007

Крепеж

9046712056

Крепеж

9613641501

Крепеж

Код

Описание

1708

переход к группе запчастей

2211

переход к группе запчастей

77246C

SUPPORT, FUEL MAIN TUBE

77251B

TUBE, FUEL MAIN

77261D

TUBE, FUEL TANK TO CANISTER

77267A

PROTECTOR, FUEL TUBE, NO.2

77286D

CLAMP, FUEL TUBE, NO.2

77295C

GROMMET, FUEL TUBE

77299A

CLAMP, FUEL TUBE, NO.5

Код

Описание

64648A

GROMMET, LUGGAGE DOOR LOCK OPENER

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77035A

CLAMP (FOR FUEL LID LOCK CONTROL CABLE)

77306

LEVER SUB-ASSY, FUEL LID LOCK OPEN

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

9015960602

Крепеж

9026906013

Крепеж
