Передние амортизаторы TOYOTA AQUA, 2017/06 - 2024, 1,5 литра, 16 клапанов DOHC, EFI, седан, GRAMS, NHP10, вариатор

Каталог

Япония

Модель

AQUA

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Кузов

седан

Класс

GRAMS

Фрейм

NHP10

Трансмиссия

вариатор

Опции

5 дверей 697W
  • 1
  • 2
  • 3
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

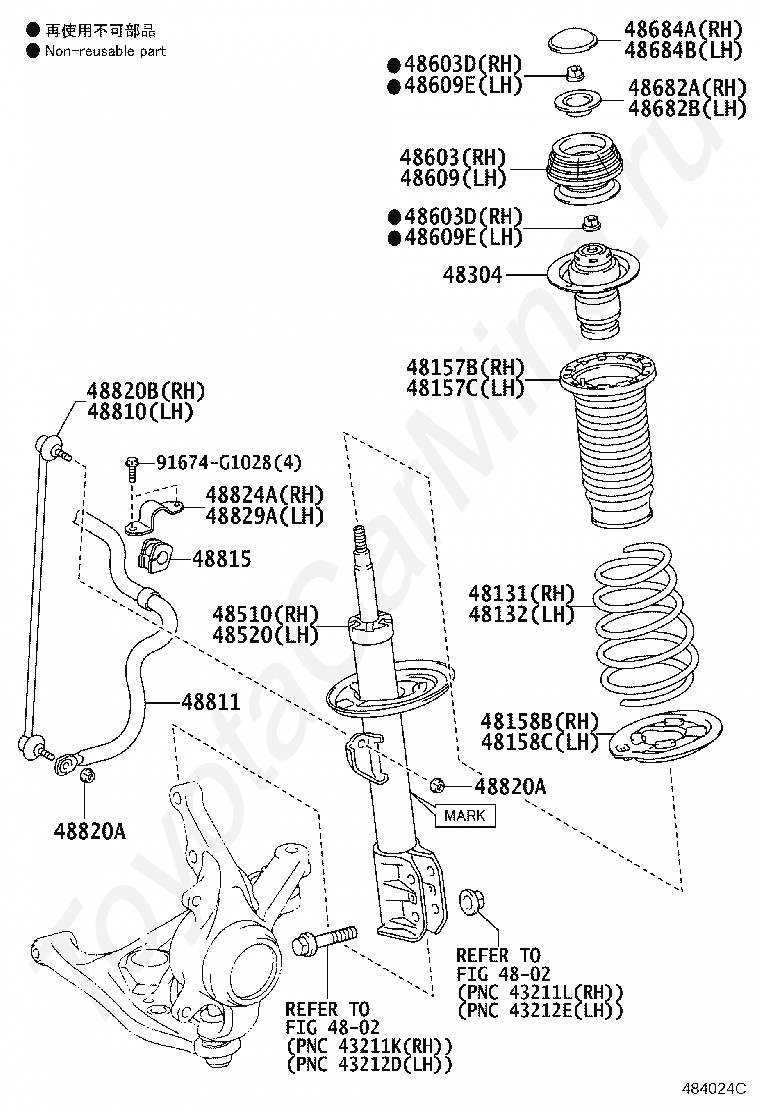

Код

Описание

4802

переход к группе запчастей

48131

SPRING, FRONT COIL, RH

48132

SPRING, FRONT COIL, LH

48157B

INSULATOR, FRONT COIL SPRING, UPPER RH

48157C

INSULATOR, FRONT COIL SPRING, UPPER LH

48304

BUMPER SUB-ASSY, FRONT SPRING, NO.1

48510

ABSORBER ASSY, SHOCK, FRONT RH

48520

ABSORBER ASSY, SHOCK, FRONT LH

48603

SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

48603D

NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

48609

SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

48609E

NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

48682A

SUPPORT, FRONT SUSPENSION, NO.2 RH

48682B

SUPPORT, FRONT SUSPENSION, NO.2 LH

48684A

COVER, FRONT SUSPENSION SUPPORT DUST, RH

48684B

COVER, FRONT SUSPENSION SUPPORT DUST, LH

48810

LINK ASSY, FRONT STABILIZER, LH

48811

BAR, STABILIZER, FRONT

48815

BUSH, FRONT STABILIZER BAR, NO.1

48820A

NUT(FOR FRONT STABILIZER LINK)

48820B

LINK ASSY, FRONT STABILIZER, RH

48824A

BRACKET, FRONT STABILIZER, NO.1 RH

48829A

BRACKET, FRONT STABILIZER, NO.1 LH

91674G1028

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

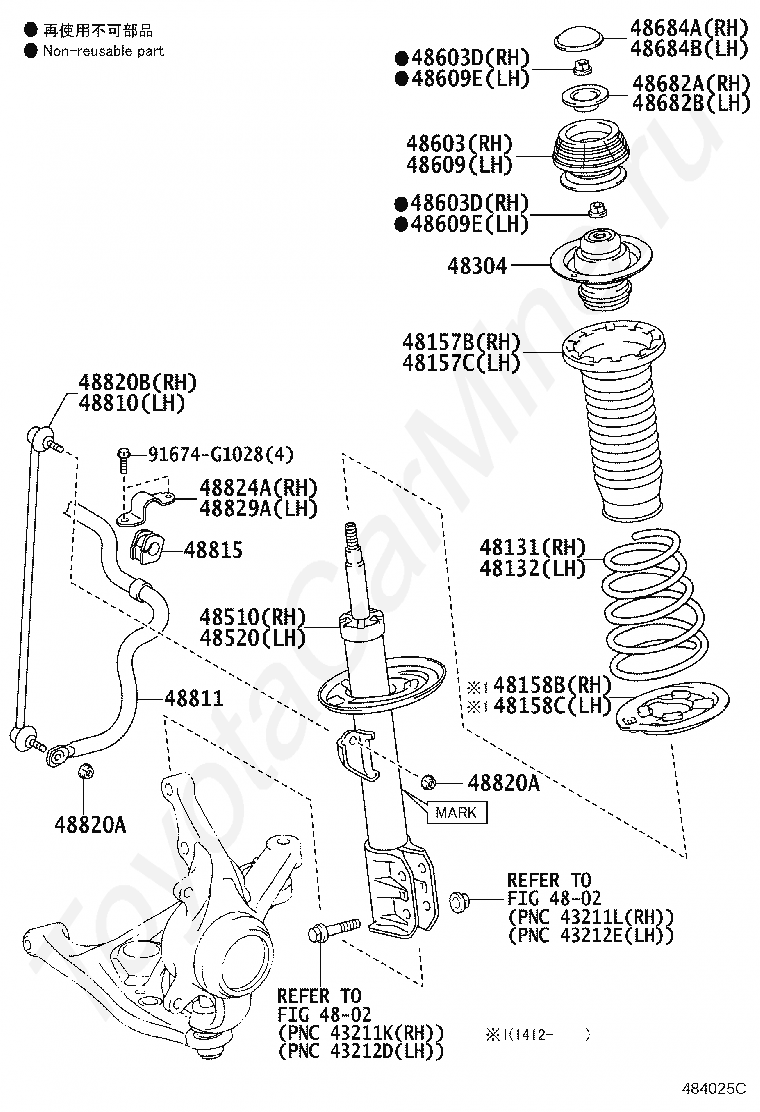

Код

Описание

4802

переход к группе запчастей

48131

SPRING, FRONT COIL, RH

48132

SPRING, FRONT COIL, LH

48157B

INSULATOR, FRONT COIL SPRING, UPPER RH

48157C

INSULATOR, FRONT COIL SPRING, UPPER LH

48158B

INSULATOR, FRONT COIL SPRING, LOWER RH

48158C

INSULATOR, FRONT COIL SPRING, LOWER LH

48304

BUMPER SUB-ASSY, FRONT SPRING, NO.1

48510

ABSORBER ASSY, SHOCK, FRONT RH

48520

ABSORBER ASSY, SHOCK, FRONT LH

48603

SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

48603D

NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

48609

SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

48609E

NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

48682A

SUPPORT, FRONT SUSPENSION, NO.2 RH

48682B

SUPPORT, FRONT SUSPENSION, NO.2 LH

48684A

COVER, FRONT SUSPENSION SUPPORT DUST, RH

48684B

COVER, FRONT SUSPENSION SUPPORT DUST, LH

48810

LINK ASSY, FRONT STABILIZER, LH

48811

BAR, STABILIZER, FRONT

48815

BUSH, FRONT STABILIZER BAR, NO.1

48820A

NUT(FOR FRONT STABILIZER LINK)

48820B

LINK ASSY, FRONT STABILIZER, RH

48824A

BRACKET, FRONT STABILIZER, NO.1 RH

48829A

BRACKET, FRONT STABILIZER, NO.1 LH

91674G1028

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

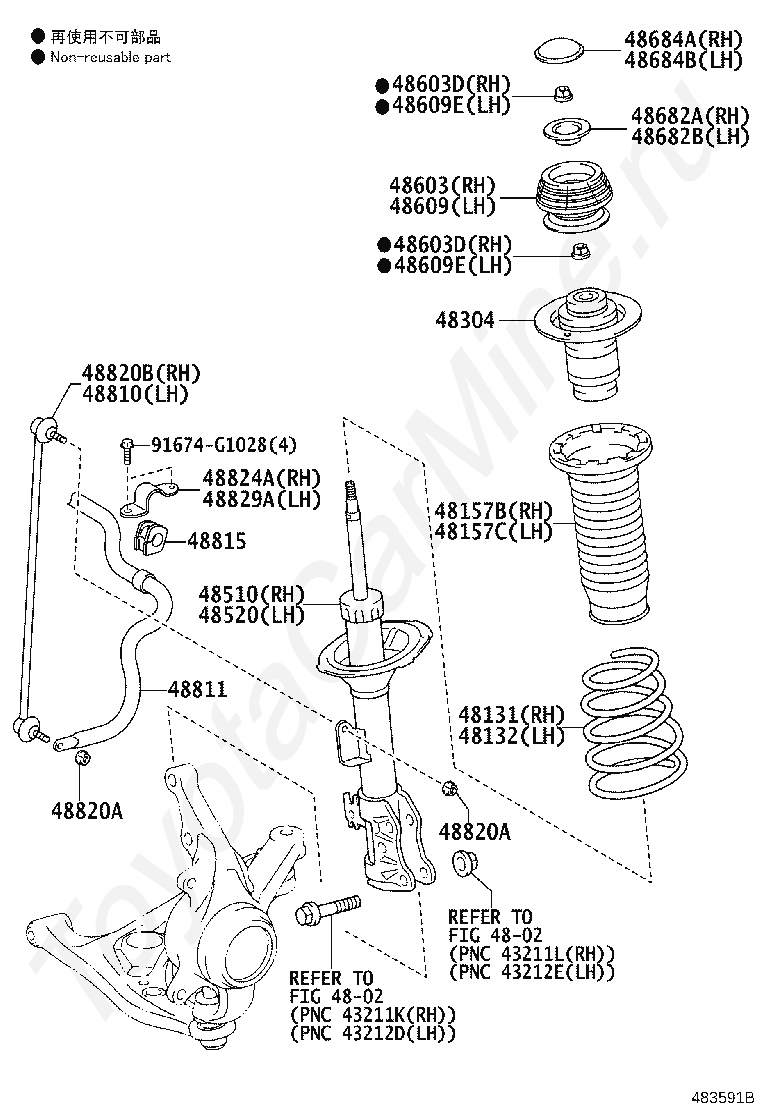

Код

Описание

4802

переход к группе запчастей

48131

SPRING, FRONT COIL, RH

48132

SPRING, FRONT COIL, LH

48157B

INSULATOR, FRONT COIL SPRING, UPPER RH

48157C

INSULATOR, FRONT COIL SPRING, UPPER LH

48158B

INSULATOR, FRONT COIL SPRING, LOWER RH

48158C

INSULATOR, FRONT COIL SPRING, LOWER LH

48304

BUMPER SUB-ASSY, FRONT SPRING, NO.1

48510

ABSORBER ASSY, SHOCK, FRONT RH

48520

ABSORBER ASSY, SHOCK, FRONT LH

48603

SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

48603D

NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

48609

SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

48609E

NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

48682A

SUPPORT, FRONT SUSPENSION, NO.2 RH

48682B

SUPPORT, FRONT SUSPENSION, NO.2 LH

48684A

COVER, FRONT SUSPENSION SUPPORT DUST, RH

48684B

COVER, FRONT SUSPENSION SUPPORT DUST, LH

48810

LINK ASSY, FRONT STABILIZER, LH

48811

BAR, STABILIZER, FRONT

48815

BUSH, FRONT STABILIZER BAR, NO.1

48820A

NUT(FOR FRONT STABILIZER LINK)

48820B

LINK ASSY, FRONT STABILIZER, RH

48824A

BRACKET, FRONT STABILIZER, NO.1 RH

48829A

BRACKET, FRONT STABILIZER, NO.1 LH

91674G1028

Крепеж
