REAR SEAT & SEAT TRACK TOYOTA ALPHARD G/V, 2002/05 - 2005/04, 3 литра, 24 клапана DOHC, EFI, MICRO COMPUTER PRESET STEERING, MNH15, АКПП, 4 ступени

Каталог

Япония

Модель

ALPHARD G/V

Двигатель

3 литра, 24 клапана DOHC, EFI

Класс

MICRO COMPUTER PRESET STEERING

Фрейм

MNH15

Трансмиссия

АКПП, 4 ступени

Опции

7-местный 229W

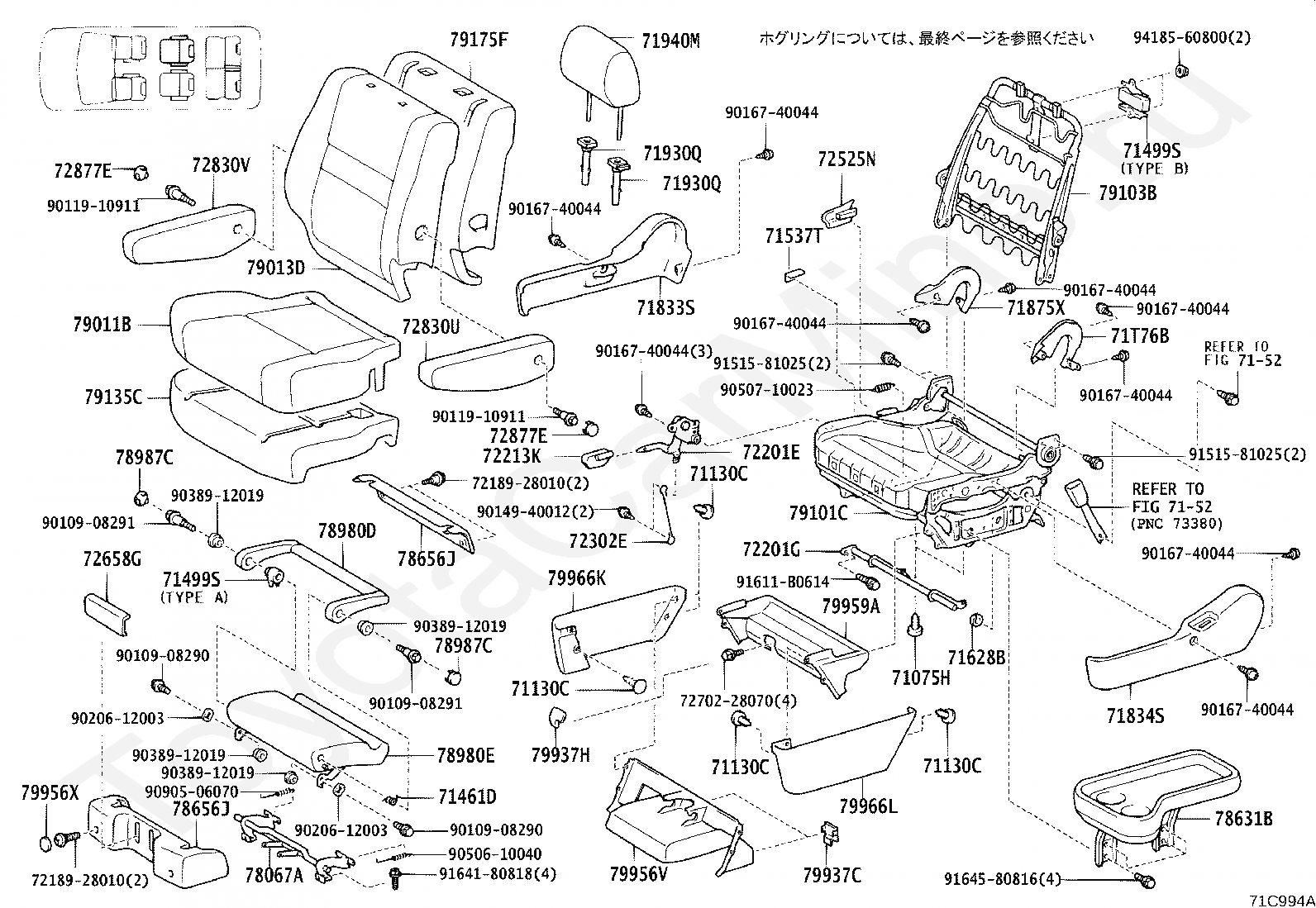

Код

Описание

71075H

CLIP(FOR REAR SEAT)

71130C

CLIP, REAR SEAT LEG

71461D

SPRING, NO.1 SEAT CUSHION, NO.1(FOR RH SEAT)

71499S

DAMPER, SEAT CUSHION SPRING

7152

переход к группе запчастей

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71628B

SPACER, REAR SEAT CUSHION, RH

71833S

COVER, REAR SEAT RECLINING, NO.1 RH

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

7218928010

Крепеж

72201E

HANDLE SUB-ASSY, SEAT TRACK RH

72201G

HANDLE SUB-ASSY, SEAT TRACK, RH

72213K

KNOB, SEAT TRACK ADJUSTING HANDLE, RH

72302E

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72658G

KNOB, REAR SEAT LOCK HANDLE, RH

7270228070

Крепеж

72830U

ARMREST ASSY, REAR SEAT, RH

72830V

ARMREST ASSY, REAR NO.1 SEAT, RH

72877E

COVER, NO.1 SEAT ARMREST, RH

78067A

BRACKET SUB-ASSY, REAR SEAT LEGREST, OUTER(FOR RH SEAT)

78631B

TABLE, REAR SEAT SIDE

78656J

COVER, REAR SEAT LEGREST, RH

78980D

FOOTREST ASSY, REAR SEAT, NO.1

78980E

FOOTREST ASSY, REAR SEAT, NO.2

78987C

COVER, REAR NO.1 SEAT FOOTREST, NO.1 RH

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79101C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79135C

PAD, NO.1 SEAT CUSHION, RH

79175F

PAD, NO.1 SEAT BACK, RH

79937C

COVER, NO.1 SEAT LEG, NO.1(FOR RH SEAT)

79937H

COVER, REAR SEAT LEG, NO.2

79956V

COVER, REAR SEAT LEG SIDE, RH

79956X

CAP(FOR REAR SEAT LEG SIDE COVER)

79966K

COVER, REAR SEAT LEG, RH(FOR RH SEAT)

79966L

COVER, REAR SEAT LEG, LH(FOR RH SEAT)

9010908290

Крепеж

9010908291

Крепеж

9011910911

Крепеж

9014940012

Крепеж

9016740044

Крепеж

9020612003

Крепеж

9038912019

Крепеж

9050610040

Крепеж

9050710023

Крепеж

9090506070

Крепеж

9151581025

Крепеж

91611B0614

Крепеж

9164180818

Крепеж

9164580816

Крепеж

9418560800

Крепеж

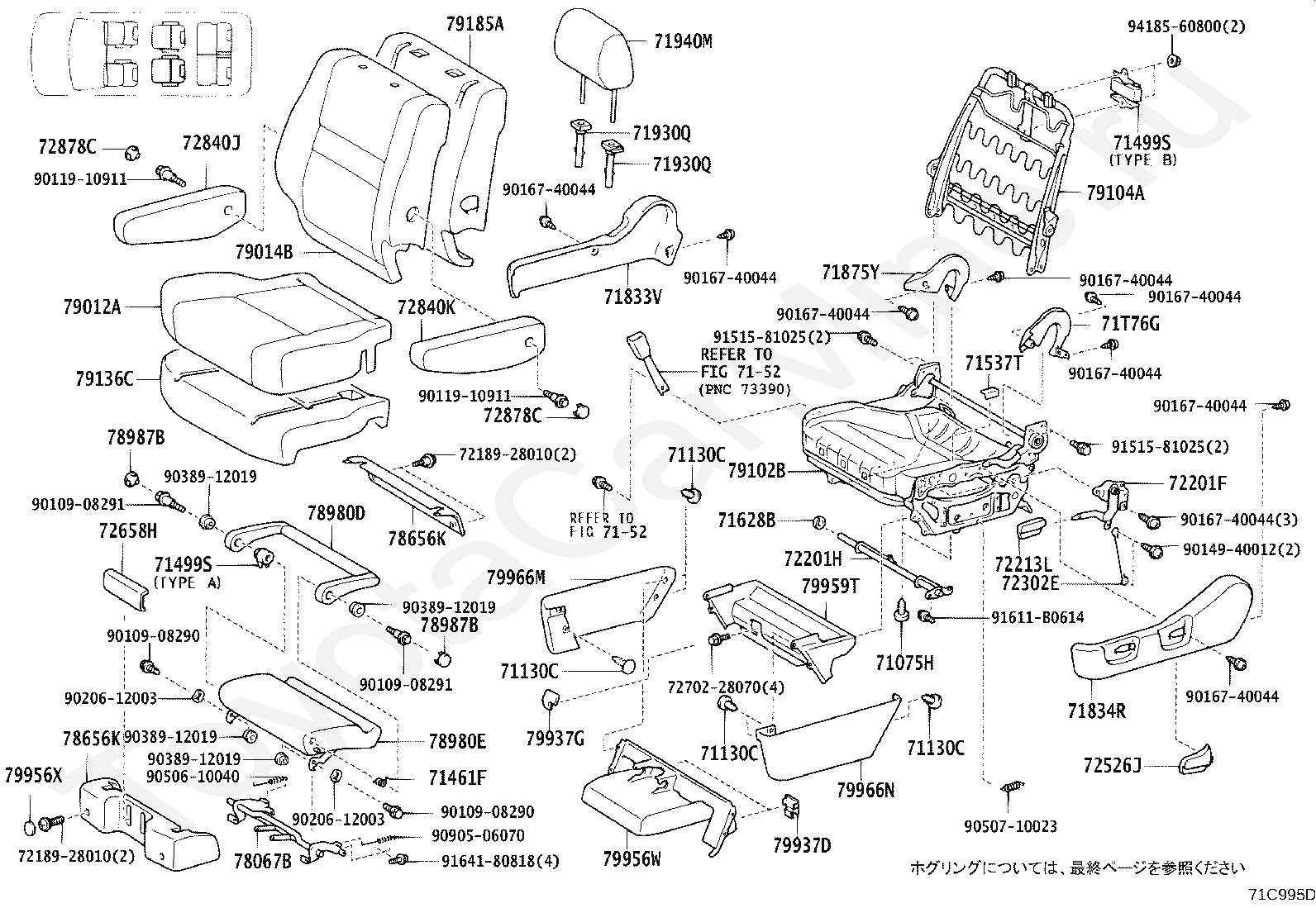

Код

Описание

71075H

CLIP(FOR REAR SEAT)

71130C

CLIP, REAR SEAT LEG

71461F

SPRING, NO.1 SEAT CUSHION, NO.1(FOR LH SEAT)

71499S

DAMPER, SEAT CUSHION SPRING

7152

переход к группе запчастей

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71628B

SPACER, REAR SEAT CUSHION, RH

71833V

COVER, NO.1 SEAT RECLINING, NO.2 RH

71834R

COVER, REAR SEAT RECLINING, LH

71875Y

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT BACK)

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71T76G

COVER, RECLINING ADJUSTER INSIDE, LH

7218928010

Крепеж

72201F

HANDLE SUB-ASSY, SEAT TRACK LH

72201H

HANDLE SUB-ASSY, SEAT TRACK, LH

72213L

KNOB, SEAT TRACK ADJUSTING HANDLE, LH

72302E

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

72658H

KNOB, REAR SEAT LOCK HANDLE, LH

7270228070

Крепеж

72840J

ARMREST ASSY, REAR SEAT, LH

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72878C

COVER, NO.1 SEAT ARMREST, LH

78067B

BRACKET SUB-ASSY, REAR SEAT LEGREST, OUTER(FOR LH SEAT)

78656K

COVER, REAR SEAT LEGREST, LH

78980D

FOOTREST ASSY, REAR SEAT, NO.1

78980E

FOOTREST ASSY, REAR SEAT, NO.2

78987B

COVER, REAR NO.1 SEAT FOOTREST, NO.1 LH

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79102B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

79937D

COVER, NO.1 SEAT LEG, NO.1(FOR LH SEAT)

79937G

COVER, REAR SEAT LEG, NO.2

79956W

COVER, REAR SEAT LEG SIDE, LH

79956X

CAP(FOR REAR SEAT LEG SIDE COVER)

79959T

COVER, REAR SEAT LEG, LH

79966M

COVER, REAR SEAT LEG, RH(FOR LH SEAT)

79966N

COVER, REAR SEAT LEG, LH(FOR LH SEAT)

9010908290

Крепеж

9010908291

Крепеж

9011910911

Крепеж

9014940012

Крепеж

9016740044

Крепеж

9020612003

Крепеж

9038912019

Крепеж

9050610040

Крепеж

9050710023

Крепеж

9090506070

Крепеж

9151581025

Крепеж

91611B0614

Крепеж

9164180818

Крепеж

9418560800

Крепеж

Код

Описание

7152

переход к группе запчастей

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71833S

COVER, REAR SEAT RECLINING, NO.1 RH

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

72155B

BRACKET, SEAT TRACK HANDLE SUPPORT

72201E

HANDLE SUB-ASSY, SEAT TRACK RH

72210Q

CABLE ASSY, NO.1 SEAT SLIDE, RH

72210X

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH

72213K

KNOB, SEAT TRACK ADJUSTING HANDLE, RH

72215A

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

7270228070

Крепеж

72771A

SPRING, REAR SEAT TURN NO.1

72830U

ARMREST ASSY, REAR SEAT, RH

72830V

ARMREST ASSY, REAR NO.1 SEAT, RH

72877E

COVER, NO.1 SEAT ARMREST, RH

72959A

SPACER, REAR SEAT TURN SIDE

72960C

TABLE ASSY, NO.1 SEAT TURN, RH

72973K

COVER, REAR SEAT TURN TABLE, RH

72973L

COVER, REAR SEAT TURN TABLE, NO.1

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79101C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79135C

PAD, NO.1 SEAT CUSHION, RH

79175F

PAD, NO.1 SEAT BACK, RH

79910A

CABLE ASSY, REAR SEAT TURN, NO.1

79937C

COVER, NO.1 SEAT LEG, NO.1(FOR RH SEAT)

79937H

COVER, REAR SEAT LEG, NO.2

79959E

COVER, NO.1 SEAT LEG, RH

9010511036

Крепеж

9011908766

Крепеж

9011910911

Крепеж

9014940012

Крепеж

9016740044

Крепеж

9017912032

Крепеж

9046313003

Крепеж

9046400799

Крепеж

9151581025

Крепеж

91611G0612

Крепеж

9324955006

Крепеж

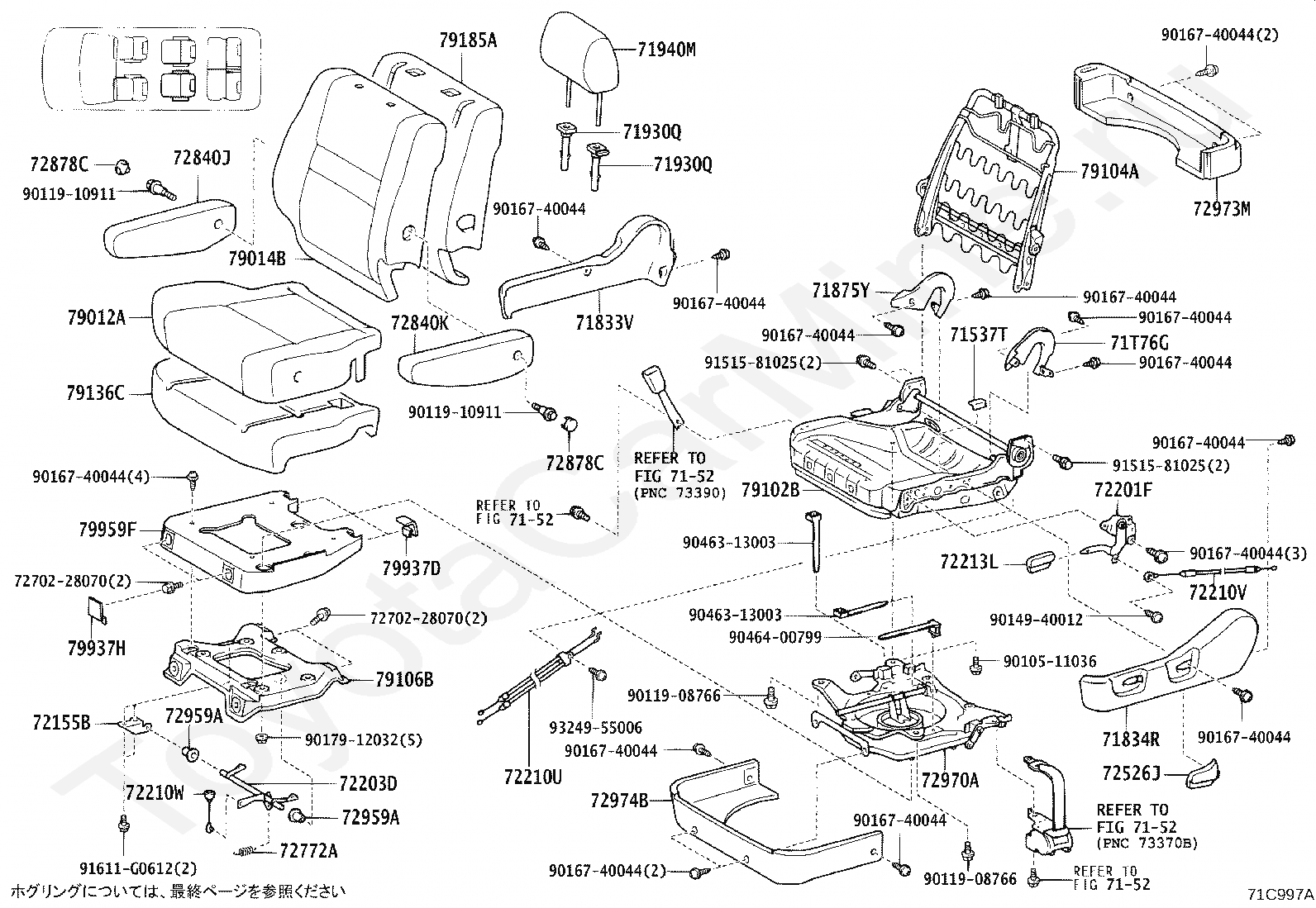

Код

Описание

7152

переход к группе запчастей

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71833V

COVER, NO.1 SEAT RECLINING, NO.2 RH

71834R

COVER, REAR SEAT RECLINING, LH

71875Y

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT BACK)

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71T76G

COVER, RECLINING ADJUSTER INSIDE, LH

72155B

BRACKET, SEAT TRACK HANDLE SUPPORT

72201F

HANDLE SUB-ASSY, SEAT TRACK LH

72203D

HANDLE SUB-ASSY, REAR SEAT TRACK, LH

72210U

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH

72210V

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.1

72210W

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.2

72213L

KNOB, SEAT TRACK ADJUSTING HANDLE, LH

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

7270228070

Крепеж

72772A

SPRING, REAR SEAT TURN NO.2

72840J

ARMREST ASSY, REAR SEAT, LH

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72878C

COVER, NO.1 SEAT ARMREST, LH

72959A

SPACER, REAR SEAT TURN SIDE

72970A

TABLE ASSY, NO.1 SEAT TURN, LH

72973M

COVER, REAR SEAT TURN TABLE, NO.2

72974B

COVER, REAR SEAT TURN TABLE, LH

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79102B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

79937H

COVER, REAR SEAT LEG, NO.2

79959F

COVER, NO.1 SEAT LEG, LH

9010511036

Крепеж

9011908766

Крепеж

9011910911

Крепеж

9014940012

Крепеж

9016740044

Крепеж

9017912032

Крепеж

9046313003

Крепеж

9046400799

Крепеж

9151581025

Крепеж

91611G0612

Крепеж

9324955006

Крепеж

Код

Описание

7124858010

Крепеж

71303E

HINGE SUB-ASSY, REAR NO.2 SEAT, RH

7152

переход к группе запчастей

71691Q

COVER, REAR NO.2 SEAT LOCK, UPPER NO.1 RH

71693F

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1

71695T

PROTECTOR, REAR SEAT, NO.2

71843

COVER, REAR SEAT RECLINING, NO.2 RH

71878G

COVER, NO.3 SEAT RECLINING, INNER RH

71878H

COVER, REAR SEAT RECLINING, INNER RH

71878J

COVER, REAR NO.1 SEAT RECLINING, INNER RH

71878K

COVER, REAR NO.2 SEAT RECLINING, INNER RH

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940N

HEADREST ASSY, REAR SEAT, NO.2

72057E

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

72065D

HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, RH

72210Y

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1

72211H

HANDLE, SEAT TRACK ADJUSTING, RH

72226A

BRACKET, SEAT TRACK, NO.1

72265P

COVER, SEAT TRACK UPPER RAIL, RH

72525P

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH

72551V

CLIP(FOR RECLINING HINGE)

72665H

COVER, REAR SEAT BACK LOCK

72665J

COVER, REAR SEAT LOCK, RH

72681E

HOOK, REAR SEAT

7270258060

Крепеж

7282558010

Крепеж

72877F

COVER, SEAT ARMREST

72890D

ARMREST ASSY, NO.2 SEAT, C LH(FOR RH SEAT)

72927F

COVER, REAR SEAT CUSHION UNDER, RH

72995F

COVER, REAR SEAT CUSHION, RH

7889958010

Крепеж

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79235F

PAD, NO.2 SEAT CUSHION, RH

79260C

SPRING ASSY, NO.2 SEAT CUSHION, RH

79275F

PAD, NO.2 SEAT BACK, RH

79621B

STOPPER, NO.2 SEAT CUSHION

79959G

COVER, NO.2 SEAT LEG, RH NO.1

9010508271

Крепеж

9016740044

Крепеж

9017911010

Крепеж

9020120016

Крепеж

9020612003

Крепеж

9046313003

Крепеж

9321056016

Крепеж

9353054010

Крепеж

9356054008

Крепеж

9356054014

Крепеж

9454201400

Крепеж

Код

Описание

7124858010

Крепеж

71302H

STOPPER SUB-ASSY, REAR SEAT LEG

71304A

HINGE SUB-ASSY, REAR NO.2 SEAT, LH

7152

переход к группе запчастей

71615F

PAD, REAR SEAT CUSHION, E

71691Q

COVER, REAR NO.2 SEAT LOCK, UPPER NO.1 RH

71694A

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1

71695T

PROTECTOR, REAR SEAT, NO.2

71844H

COVER, REAR SEAT RECLINING, NO.2 LH

71879G

COVER, NO.3 SEAT RECLINING, INNER LH

71879H

COVER, REAR SEAT RECLINING, INNER LH

71879J

COVER, REAR NO.1 SEAT RECLINING, INNER LH

71879K

COVER, REAR NO.2 SEAT RECLINING, INNER LH

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940N

HEADREST ASSY, REAR SEAT, NO.2

72057G

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.1

72065E

HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, LH

72125G

COVER, SEAT TRACK LOCK PLATE, NO.1

72125H

COVER, SEAT TRACK LOCK PLATE, NO.2

72210Z

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.2

72211J

HANDLE, SEAT TRACK ADJUSTING, LH

72266J

COVER, SEAT TRACK UPPER RAIL, LH

72526K

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH

72551V

CLIP(FOR RECLINING HINGE)

72665H

COVER, REAR SEAT BACK LOCK

72666F

COVER, REAR SEAT LOCK, LH

72681E

HOOK, REAR SEAT

7270258060

Крепеж

7282558010

Крепеж

72877F

COVER, SEAT ARMREST

72880E

ARMREST ASSY, NO.2 SEAT, C RH(FOR LH SEAT)

72928E

COVER, REAR SEAT CUSHION UNDER, LH

72995K

COVER, REAR NO.2 SEAT CUSHION

7889958010

Крепеж

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79245A

PAD, NO.2 SEAT CUSHION, LH

79270B

SPRING ASSY, NO.2 SEAT CUSHION, LH

79285C

PAD, NO.2 SEAT BACK, LH

79621B

STOPPER, NO.2 SEAT CUSHION

79959J

COVER, NO.2 SEAT LEG, LH NO.1

9010508235

Крепеж

9016740044

Крепеж

9017911010

Крепеж

9020120016

Крепеж

9020612003

Крепеж

9046313003

Крепеж

9046816019

Крепеж

9321056016

Крепеж

9353054010

Крепеж

9356054008

Крепеж

9356054014

Крепеж

9454201400

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

REAR SEAT & SEAT TRACK TOYOTA ALPHARD G/V, 2002/05 - 2005/04, 3 литра, 24 клапана DOHC, EFI, MICRO COMPUTER PRESET STEERING, MNH15, АКПП, 4 ступени

Товар добавлен в корзину!

Заполните форму
