Каталог
ЯпонияМодель
ALPHARD G/VДвигатель
3 литра, 24 клапана DOHC, EFIКласс
MICRO COMPUTER PRESET STEERINGФрейм
MNH15Трансмиссия
АКПП, 4 ступениОпции
7-местный 229W

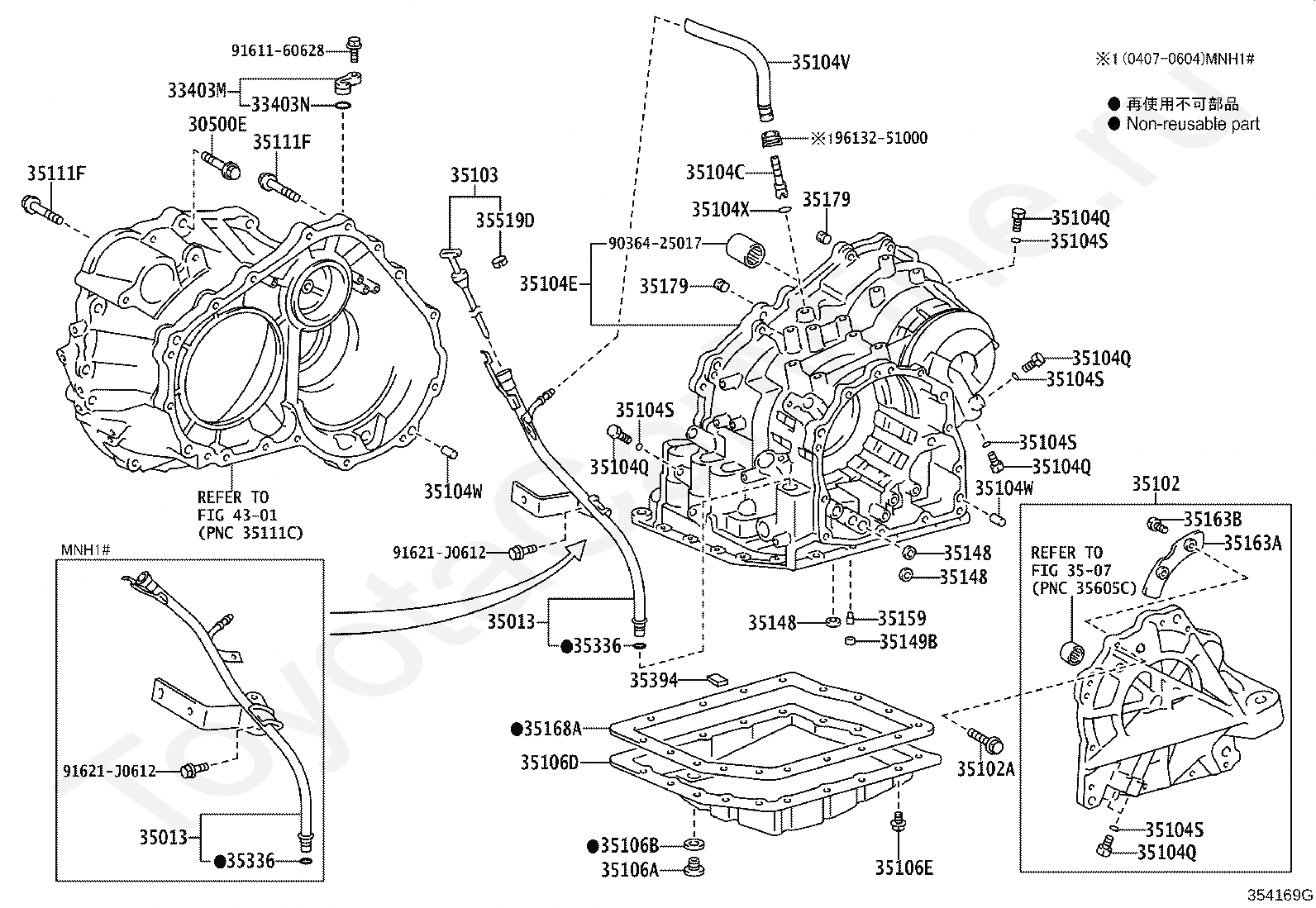

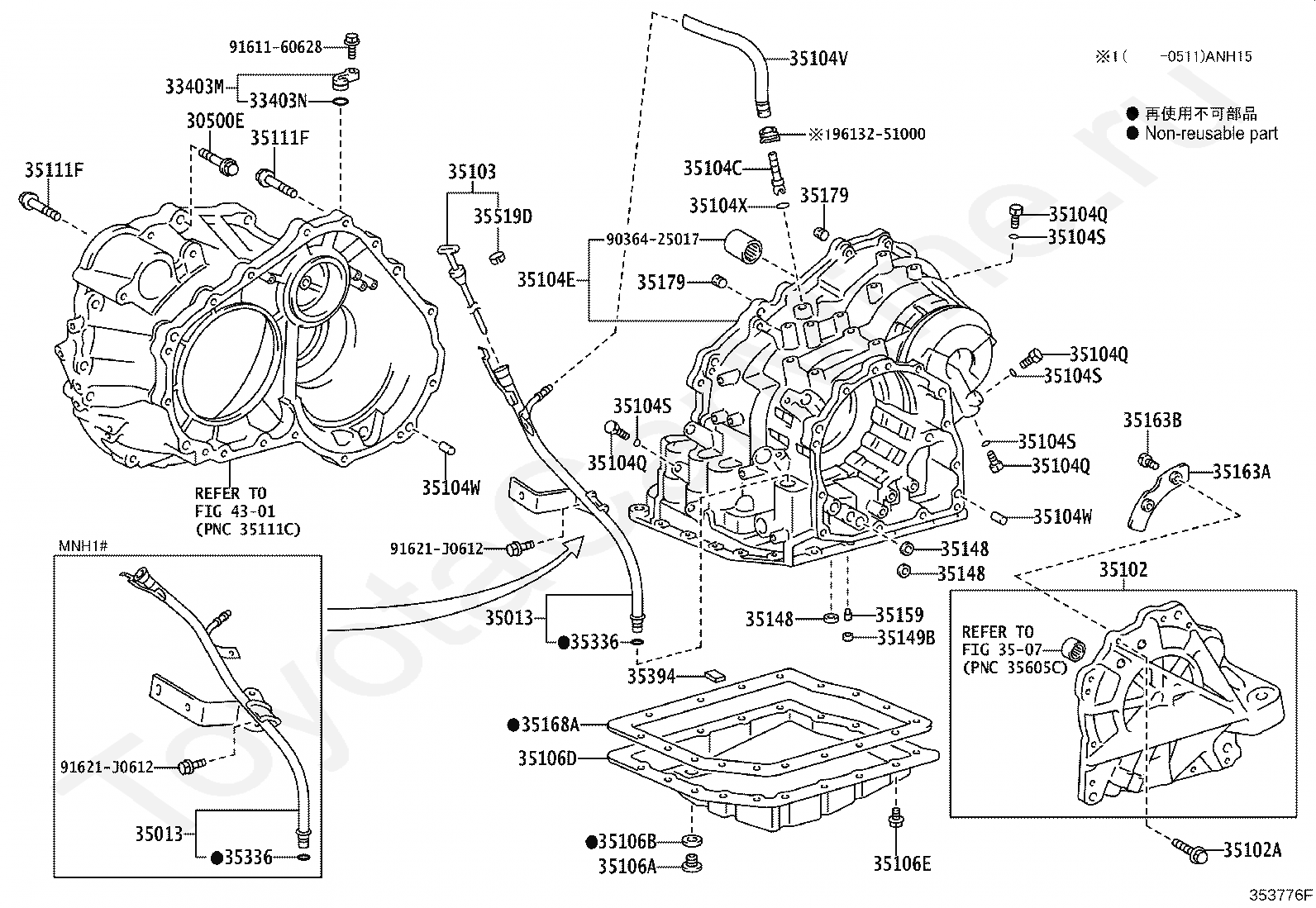

Код
Описание
30500E
BOLT(FOR TRANSAXLE & ENGINE SETTING)
33403M
COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403N
RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
35013
TUBE SUB-ASSY, TRANSMISSION OIL FILLER
3507
переход к группе запчастей
35102
COVER SUB-ASSY, TRANSAXLE REAR
35102A
BOLT (FOR TRANSAXLE REAR COVER SETTING)
35103
GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35104C
PLUG, BREATHER, NO.2 (ATM)
35104E
CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104Q
PLUG, NO.1 (FOR TRANSAXLE CASE)
35104S
RING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104V
HOSE (FOR BREATHER PLUG)
35104W
PIN, STRAIGHT (FOR TRANSAXLE CASE)
35104X
RING, O (FOR BREATHER PLUG)
35106A
PLUG SUB-ASSY, DRAIN (ATM)
35106B
GASKET, DRAIN PLUG (ATM)
35106D
PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106E
BOLT (FOR TRANSAXLE OIL PAN)
35111F
BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
35148
GASKET, GOVERNOR APPLY, NO.1
35149B
GASKET, TRANSAXLE CASE 2ND BRAKE
35159
GASKET, BRAKE DRUM
35163A
PLATE, TRANSAXLE REAR COVER
35163B
SCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)
35168A
GASKET, AUTOMATIC TRANSAXLE OIL PAN
35179
GASKET, OVERDRIVE BRAKE
35336
RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394
MAGNET, OIL CLEANER (FOR TRANSMISSION)
35519D
LABEL, AUTOMATIC TRANSMISSION INFORMATION
4301
переход к группе запчастей
9036425017
Крепеж
9161160628
Крепеж
91621J0612
Крепеж
9613251000
Крепеж
